Can-Am Canyon Series 2025 Fuse Box Info

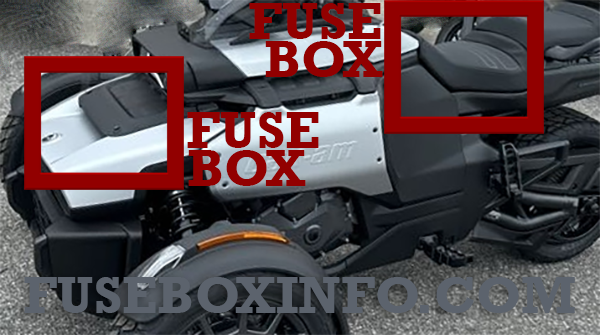

Fuse box location:
The front fuse box is located under the front service cover. The rear fuse box is located under the driver’s seat
Fuse Box Diagram | Layout
Front fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| F1F | 15A | Cooling fan |
| F2F | 20A | TCM |
| F3F | 15A | Injectors / Ignition coils |
| F4F | 7.5A | Parking lights / Licence plate light |
| F5F | 5A | ECM |
| F6F | 7.5A | Starter relay / HO2S heaters |
| F7F | 15A | Cluster / DLC / GPS module |
| F8F | 10A | Reverse activator / Suspension release valve |
| F9F | 20A | Parking brake |
| F10F | 15A | Purge valve / Fuel pump |
| F11F | 10A | Alternator |
| F13F | 10A | OBDII / Switch lights / Cluster / SASM / TCM /DPS / MSL |
| F14F | 7.5A | Headlamps LO |
| F15F | 15A | DLC / Ext. ACC |
| F16F | 10A | Signature lights / Fog lights (if equipped) |
| F17F | 7.5A | Headlamp HI |
| Relays | ||
| RY1 | - | Cooling system |
| RY2 | - | Reverse activator |
| RY3 | - | Headlamps |
| RY4 | - | Hedlamps LO / HI |

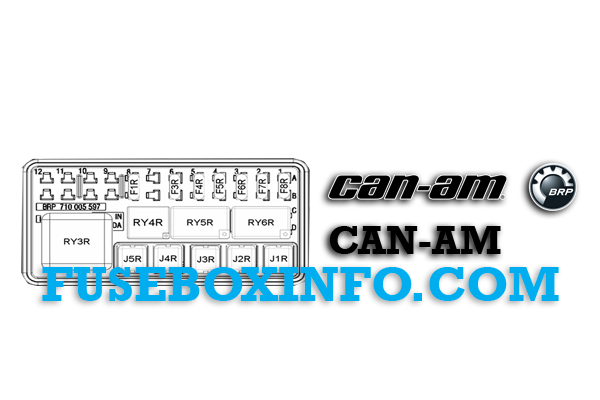

Rear fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| F1R | 7.5A | Hazard / Brake lights |
| F2R | 15A | Semi-active suspension (Redrock model only) |
| F3R | 15A | Air suspension compressor (ASC) |
| F4R | 5A | YRS/ VSS / ECM / DESS / MSR |
| F5R | 10A | Trailer |
| F6R | 5A | Front heated seat |
| F7R | 10A | Rear heating / Air suspension compressor control (ASC control) |
| F8R | 15A | Horn |
| JCase Fuses | ||
| J1R | 40A | Battery |
| J2R | 40A | DPS |
| J3R | 40A | VSS |
| J4R | 25A | VSS |
| J5R | 25A | Battery |
| Relays | ||
| RY3 | - | Main power |
| RY5 | - | Accessories |
| RY6 | - | Air suspension compressor |
Alternator Circuit Fuse (This fuse is located under the driver’s seat, between battery and rear fuse box):
| Fuse/Relay N° | Rating | Functions |
| 80A | Alternator |
