Yamaha Roadliner 2007 Fuse Box Info

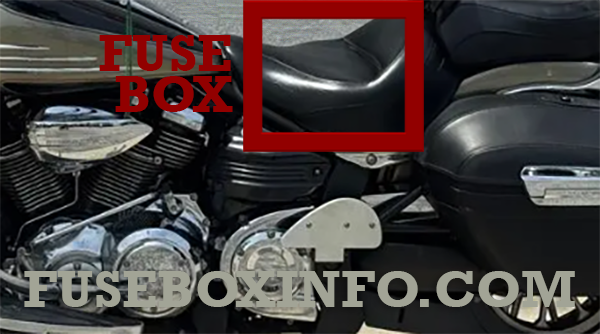

Fuse box location:
The fuse box is located under the rider seat.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 3A | Auxiliary DC connector fuse |
| 2 | 10A | Signaling system fuse |
| 3 | 25A | Ignition fuse |
| 4 | 10A | Backup fuse (for odometer and clock) |
| 5 | 10A | ECU fuse |
| 6 | 20A | Headlight fuse |
| 7 | 10A | Taillight fuse |
| 8 | - | Spare fuse |
The main fuse (50A) is located near the fuse box. The fuel injection system fuse (15A) and fuel injection system spare fuse are located next to the fuse box.
