Yamaha YZF-R1 2016 Fuse Box Info

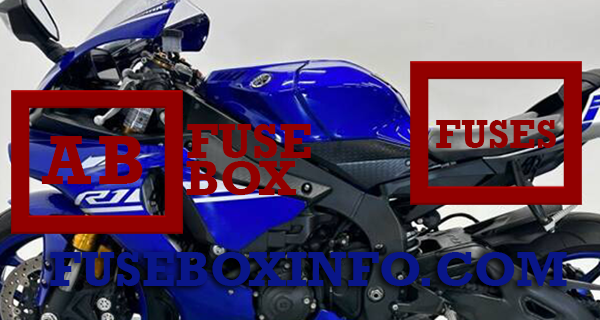

Fuse box location:
Fuse Box Diagram | Layout
Fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Hazard fuse |
| 2 | 15A | Fuel injection system fuse |
| 3 | 7.5A | Electronic throttle valve fuse |
| 4 | 7.5A | Backup fuse |
| 5 | 10A | Sub radiator fan motor fuse |
| 6 | 15A | Radiator fan motor fuse |
| 7 | - | Spare fuse |
Fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Ignition fuse |
| 2 | 7.5A | Signaling system fuse |
| 3 | 7.5A | ABS ECU fuse |
| 4 | 15A | ABS solenoid fuse |
| 5 | 7.5A | Headlight fuse |
| 6 | 2A | Terminal fuse 1 |
| 7 | Spare fuse | |
| 8 | 7.5A | SCU fuse (YZF-R1M) |
Main fuse (50A), ABS motor fuse (30A) are located under the rider seat.
