Yamaha MT-07 2018 Fuse Box Info

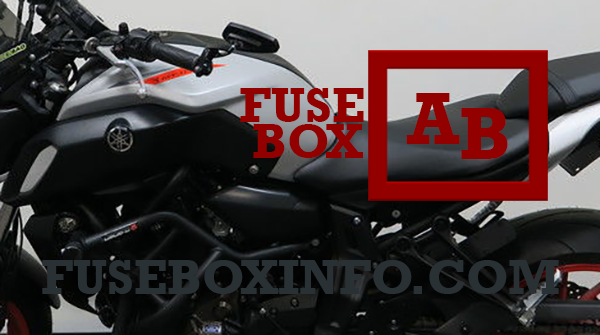

Fuse box location:
Fuses are located under the rider seat.
Fuse Box Diagram | Layout
Fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Ignition fuse |
| 2 | 10A | Signaling system fuse |
| 3 | 15A | Headlight fuse |
| 4 | 10A | Backup fuse 2 (for ECU) |
| 5 | 7.5A | Backup fuse (for clock) |
| 6 | 10A | Radiator fan motor fuse |
| 12 | - | Spare fuse |
Fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 7 | 20A | ABS solenoid fuse |
| 8 | 30A | ABS motor fuse |
| 9 | 10A | Parking lighting fuse |
| 10 | 2A | Auxiliary fuse |
| 11 | 7.5A | ABS control unit fuse |
| 12 | - | Spare fuse |
Main fuse is 30 A and is located under starter relay cover.
