Yamaha Stryker Bullet Cowl 2015 Fuse Box

Yamaha Stryker Bullet Cowl 2015 Fuse Box Info

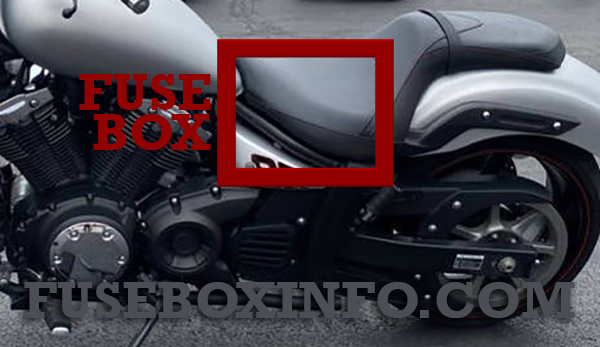

Fuse box location:

The fuse box is located under the seat.



Fuse Box Diagram | Layout

Fuse/Relay N° Rating Functions
1 10A Signaling system fuse
2 15A Ignition fuse
3 10A Taillight fuse
4 20A Radiator fan motor fuse
5 10A Backup fuse (for clock)
6 20A Headlight fuse
7 - Spare fuse




The main fuse (50A) is located under the seat, near the fuse box.

The fuel injection system fuse (10A), is located under the seat, near the battery. To access the fuel injection system
fuse, remove the starter relay cover by pulling it upward.
