Holden Captiva 2017 Fuse Box Info

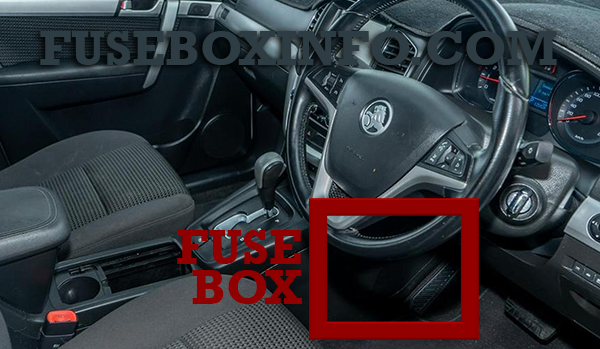

Passenger compartment fuse box location:
The fuse box is located on the left hand side of the drivers foot wel.

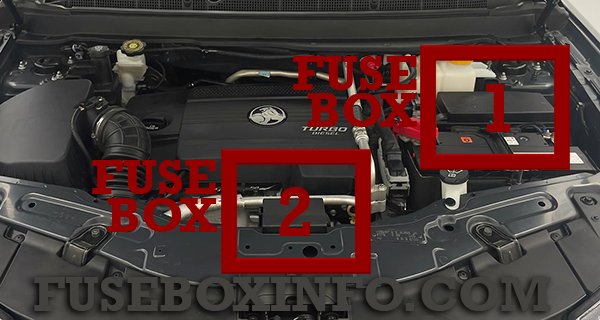

Engine compartment fuse box location:
The fuse box 1 is engine compartment fuse box, the fuse box 2 is diesel auxiliary fuse box.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | DRVR PWR SEAT |
| 2 | 10A | S/ROOF FOLDING MIRROR |
| 3 | 20A | FSCM/VENT SOL |
| 4 | 15A | F/DOOR LOCK |
| 5 | 20A | DR/LCK |
| 6 | 20A | TRLR |
| 7 | 20A | APO JACK (CONSOLE) |
| 8 | 20A | HTD SEAT PWR/REAR A/C |
| 9 | 15A | BCM (PRK/TRN) |
| 10 | 30A | PASS PWR WNDW |
| 11 | - | ACC/RAP RELAY |
| 12 | - | SPARE |
| 13 | 20A | CIGAR |
| 14 | 15A | BCM (STOP) |
| 15 | 15A | BCM (CTSY) |
| 16 | 20A | DRV PWR WNDW |
| 17 | - | CIGAR/APO JACK RELAY |
| 18 | 20A | S/ROOF BATT |
| 19 | 20A | APO JACK REAR CARGO |
| 20 | 15A | RUN/CRNK |
| 21 | - | SPARE |
| 22 | 30A | AMP |
| 23 | 15A | BCM (TRN SIG) |
| 24 | 15A | DRL |
| 25 | - | RUN RELAY |
| 26 | 20A | FRT WSR |
| 27 | 10A | L/GATE |
| 28 | - | RUN/CRNK RELAY |
| 29 | 20A | HEATING MAT SW |
| 30 | 10A | FSCM |
| 31 | 15A | AWD/VENT |
| 32 | 15A | RR HEAT SEAT |
| 33 | 10A | RUN2 |
| 34 | 5A | ISRVM/RCM |
| 35 | 15A | RR FOG |
| 36 | 15A | BCM (DIMMER) |
| 37 | 10A | LOGISTIC MODE |
| 38 | 40A | HVAC BLWR |
| 39 | 10A | CLSTR |
| 40 | 10A | SDM (IGN_1) |
| 41 | 5A | PWR DIODE |
| 42 | 10A | BCM (VBATT) |
| 43 | 30A | TRLR BATT |
| 44 | 15A | RVS/HVAC/DLC |
| 45 | 2A | PWR/MODING |
| 46 | 10A | SSPS |
| 47 | 10A | XBCM |
| 48 | 20A | BCM (INT LIGHT) TRLR FOG |
| 49 | 10A | IPC |
| 50 | 30A | DC DC CONVERTER |
| 51 | 10A | SDM (BATT) |
| 52 | - | SPARE |
| 53 | 2A | OSRVM |
| 54 | 10A | AUDIO/KEY CAPTURE |
| 55 | - | SPARE |
| 56 | 2A | STR/WHL SW |
Engine compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| 1 | 80A | PWM FAN |
| 2 | - | SPARE |
| 3 | 15A | COIL A - OIL PUMP |
| 4 | 15A | IGNITION COIL B |
| 5 | - | SPARE |
| 6 | - | SPARE |
| 7 | 15A | ECM |
| 8 | - | SPARE |
| 9 | 30A | ECM PWR TRN |
| 10 | - | PWR/TRN RELAY |
| 11 | 15A | ENG SNSR |
| 12 | 20A | STRTR |
| 13 | - | AUX PUMP RELAY |
| 14 | 15A | TCM |
| 15 | 15A | AUX PUMP |
| 16 | - | STRTR RELAY |
| 17 | - | FUEL/VAC PUMP RELAY |
| 18 | 20A | ABS |
| 19 | 60A | BATT3 |
| 20 | - | SPARE |
| 21 | 40A | EPB |
| 22 | 20A | STOP LAMP |
| 23 | 25A | FRT WPR |
| 24 | 10A | A/C |
| 25 | 10A | BCM |
| 26 | 20A | FUEL/VAC |
| 27 | - | STOP LAMP RELAY |
| 28 | 60A | BATT2 |
| 29 | 10A | LO BEAM RH |
| 30 | - | WPR CNTRL RELAY |
| 31 | 10A | PARK LP RH |
| 32 | 10A | PARK LP LH |
| 33 | - | SPARE |
| 34 | 50A | ABS |
| 35 | 60A | BATT1 |
| 36 | 10A | LO BEAM LH |
| 37 | - | WPR SPD RELAY |
| 38 | 20A | HDLP WASHER |
| 39 | 10A | TRLR PRK LAMP |
| 40 | 20A | REAR WIPER |
| 41 | - | REAR DEFOG RELAY |
| 42 | 15A | HTD WASH/MIR |
| 43 | 30A | REAR DEFOG |
| 44 | - | LO BEAM RELAY |
| 45 | - | HIGH BEAM RELAY |
| 46 | 15A | FRT FOG |
| 47 | - | HDLP WSHR RELAY |
| 48 | 10A | PRK LP RH/LIFTGATE |
| 49 | 15A | HORN |
| 50 | 10A | HI BEAM LH |
| 51 | 10A | HI BEAM RH |
| 52 | - | FRT FOG RELAY |
Engine compartment fuse box 2 (Diesel auxiliary fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | RELAY PTC 3 |
| 2 | 40A | PTC 3 |
| 3 | 40A | PTC 2 |
| 4 | 40A | PTC 1 |
| 5 | 30A | F/F HTR |
| 6 | 60A | GPCU |
| 7 | - | RELAY PTC 2 |
| 8 | - | RELAY PTC 1 |
| 9 | - | RELAY F/F HTR |
| 10 | - | B+ |
