Holden Captiva 2006 Fuse Box

Holden Captiva 2006 Fuse Box Info

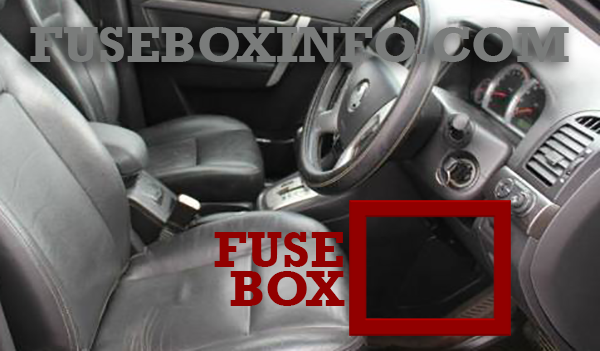

Passenger compartment fuse box location:

The fuse box is located on the left hand side of the drivers foot wel.

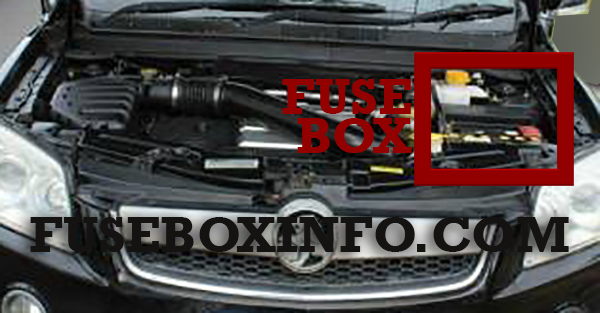

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 10A Front mirror
2 20A Door Lock
3 - Spare
4 15A Front door lock
5 20A BCM (VB6)
6 20A AP01
7 20A Cigar
8 20A AP02
9 15A BCM (VB3)
10 20A Heat/Mat
11 20A Passenger power window
12 15A TCM
13 15A Audio
14 20A Driver's power window
15 15A Engine
16 15A BCM (VB4)
17 10A XBCM
18 15A BCM (VB5)
19 10A Trailer
20 10A RR CLS
21 10A PKLP-RH
22 - Relay ACC/RAP
23 10A Lift glass
24 15A Airconditioning
25 10A Airconditioning
26 - Relay run/crank
27 15A OSRVM HT
28 20A BCM (VB2)
29 10A SSPS
30 15A BCM (VB7)
31 10A Clock
32 10A Instrument cluster
33 2A Ignition switch
34 10A BCM (VB1)
35 10A Ignition 1
36 10A Rear defrost
37 10A CTD Horn
38 10A Air bag
39 10A Air bag
40 2A WHL S/W
41 10A Front washer




Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 - Starter relay
2 - Main relay
3 20A ECM
4 15A Engine 2
5 15A Engine 1
6 20A Starter
7 10A Main
8 10A A/C compressor
9 15A Engine 3
10 - Auxiliary fan relay
11 - A/C compressor relay
12 - Main fan relay
13 15A AWD
14 15A Fuel
15 30A Main fan
16 40A ABS
17 20A ABS
18 - Fuel relay
19 - Horn relay
20 - Fan control relay
21 - Spare
22 15A Stop
23 30A Auxiliary fan
24 40A Run
25 25A Wiper
26 15A Horn
27 - Wiper speed relay
28 - Wiper relay
29 - Run relay
30 15A Anti theft
31 20A Sun roof
32 40A Accessory/Ignition
33 60A Battery
34 30A Power seat
35 - Defog relay
36 - Front defog relay
37 - Park lamp relay
38 15A H/light Low RH
39 15A H/light Low LH
40 30A Defog
41 20A Rear wiper
42 15A H/light High
43 15A Front fog
44 10A Park lamp LH
45 - H/light Low relay
46 - H/light High relay
47 - Spare
48 - Spare
49 10A Park lamp RH
50 15A TCM
51 20A H/light washer
52 - Spare
53 - Spare
54 - Spare
55 - H/light washer relay
