Holden Captiva 2008 Fuse Box Info

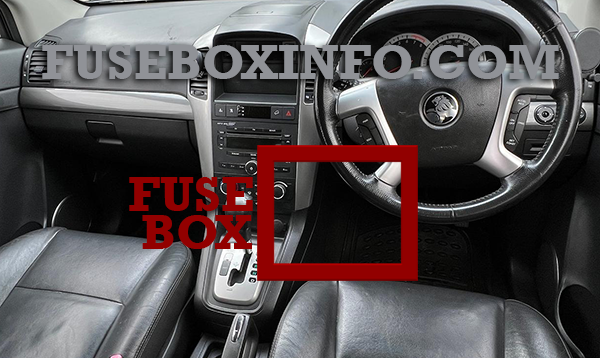

Passenger compartment fuse box location:
The fuse box is located on the left hand side of the drivers foot wel.
Engine compartment fuse box location:
The fuse box 1 is engine compartment fuse box, the fuse box 2 is diesel auxiliary fuse box.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Front mirror |
| 2 | 20A | Door Lock |
| 3 | - | Spare |
| 4 | 15A | Front door lock |
| 5 | 15A | BCM (VB6) |
| 6 | 20A | APO 1 |
| 7 | 20A | Cigar |
| 8 | 20A | APO 2 |
| 9 | 15A | BCM (VB3) |
| 10 | 20A | Heat/Mat |
| 11 | 20A | Passenger power window |
| 12 | 15A | TCM |
| 13 | 15A | Audio |
| 14 | 20A | Driver's power window |
| 15 | 15A | Engine |
| 16 | 15A | BCM (VB4) |
| 17 | 10A | XBCM |
| 18 | 15A | BCM (VB5) |
| 19 | - | Spare |
| 20 | - | Spare |
| 21 | - | Spare |
| 22 | - | Relay ACC/RAP |
| 23 | 10A | Lift glass |
| 24 | 15A | Air conditioning |
| 25 | 10A | Air conditioning |
| 26 | - | Relay run/crank |
| 27 | 15A | OSRVM HT |
| 28 | 20A | BCM (VB2) |
| 29 | - | Spare |
| 30 | 15A | BCM (VB7) |
| 31 | 10A | Clock |
| 32 | 10A | Instrument cluster |
| 33 | 2A | Ignition switch |
| 34 | 10A | BCM (VB1) |
| 35 | 10A | Ignition 1 |
| 36 | 10A | Rear defrost |
| 37 | - | Spare |
| 38 | 10A | Air bag |
| 39 | 10A | Air bag |
| 40 | - | Spare |
| 41 | 10A | Front washer |
Engine compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Starter relay |
| 2 | - | Main relay |
| 3 | 20A | ECM |
| 4 | 15A | Engine 2 |
| 5 | 15A | Engine 1 |
| 6 | 20A | Starter |
| 7 | 10A | Main |
| 8 | 10A | A/C compressor |
| 9 | 15A | Engine 3 |
| 10 | - | Auxiliary fan relay |
| 11 | - | A/C compressor relay |
| 12 | - | Main fan relay |
| 13 | 15A | AWD |
| 14 | 15A | Fuel |
| 15 | 30A | Main fan |
| 16 | 40A | ABS |
| 17 | 20A | ABS |
| 18 | - | Fuel relay |
| 19 | - | Horn relay |
| 20 | - | Fan control relay |
| 21 | - | Spare |
| 22 | 15A | Stop |
| 23 | 30A | Auxiliary fan |
| 24 | 40A | Run |
| 25 | 25A | Wiper |
| 26 | 15A | Horn |
| 27 | - | Wiper speed relay |
| 28 | - | Wiper relay |
| 29 | - | Run relay |
| 30 | 15A | Anti theft |
| 31 | 20A | Sunroof |
| 32 | 40A | Accessory/Ignition |
| 33 | 60A | Battery |
| 34 | 30A | Power seat |
| 35 | - | Defog relay |
| 36 | - | Front defog relay |
| 37 | - | Park lamp relay |
| 38 | 15A | H/light Low RH |
| 39 | 15A | H/light Low LH |
| 40 | 30A | Defog |
| 41 | 20A | Rear wiper |
| 42 | 15A | H/light High |
| 43 | 15A | Front fog |
| 44 | 10A | Park lamp LH |
| 45 | - | H/light Low relay |
| 46 | - | H/light High relay |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | 10A | Park lamp RH |
| 50 | 15A | TCM |
| 51 | 20A | H/light washer |
| 52 | - | Spare |
| 53 | - | Spare |
| 54 | - | Spare |
| 55 | - | H/light washer relay |
Engine compartment fuse box 2 (Diesel auxiliary fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Relay PTC 3 |
| 2 | 40A | PTC 3 |
| 3 | 40A | PTC 2 |
| 4 | 40A | PTC 1 |
| 5 | 30A | F/F HTR |
| 6 | 60A | GPCU |
| 7 | - | Relay PTC 2 |
| 8 | - | Relay PTC 1 |
| 9 | - | Relay F/F HTR |
| 10 | - | B+ |
