Holden Spark 2020 Fuse Box Info

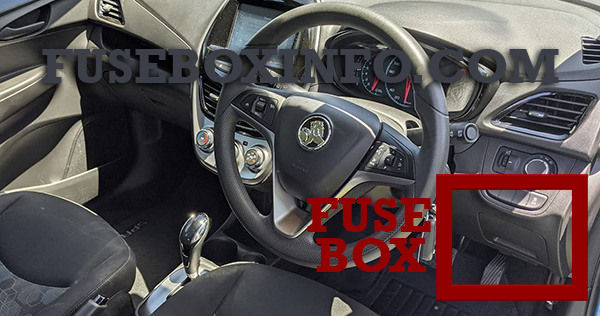

Passenger compartment fuse box location:
The interior fuse box is located on the underside of the driver side of the instrument panel.

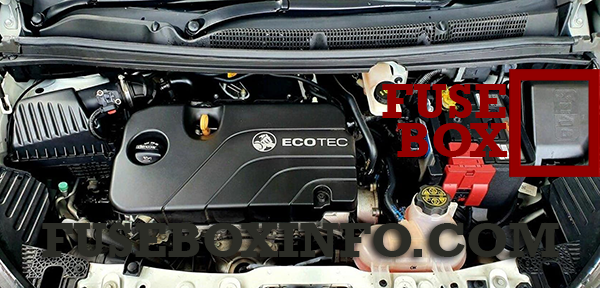

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Onstar |
| 2 | HVAC module |
| 3 | Instrument panel cluster |
| 4 | Continuously Variable transmission control module |
| 5 | Radio |
| 6 | Body control module 1 (CVT stop & start) |
| 7 | Side blind spot alert/Rear parking assist |
| 8 | Data link connection |
| 9 | Electric steering column lock |
| 10 | Sensing and Diagnostic module |
| 11 | DC-DC converter |
| 12 | Virtual Key pass System Module |
| 13 | Electronic toll collection system |
| 14 | Linear power module (NON KOR) |
| 15 | Passive entry & passive start |
| 16 | Discrete logic ignition switch (Non CVT stop & start) |
| 17 | Front collision avoidance |
| 18 | Instrument panel cluster |
| 19 | Reflected LED Alert Display |
| 20 | Headlamp levelling switch |
| 21 | Front power window |
| 22 | Rear power window |
| 23 | - |
| 24 | Automated manual transmission module |
| 25 | Auxiliary power outlet |
| 26 | Sunroof |
| 27 | Central Gate Module |
| 28 | Body control module 8 |
| 29 | Body control module 7 |
| 30 | Body control module 6 |
| 31 | Body control module 5 |
| 32 | Body control module 4 |
| 33 | Body control module 3 |
| 34 | Body control module 2 (Non CVT stop & start) |
| 35 | Body control module 1 (Non CVT stop & start) |
| 36 | Discrete logic ignition switch (CVT stop & start) |
| 37 | Steering wheel controls backlighting |
| 38 | Linear power module (KOR Only) |
| 39 | Logistic/DC-DC converter |
| 40 | Driver express power window |
| 41 | Blower motor |
| 42 | Front heated seat |
| 43 | HVAC module |
| 44 | Heated steering wheel |
| 45 | Body control module 2 (CVT stop & start) |
| Relays | |
| 1 | Logistic relay |
| 2 | ACC/RAP relay |
| 3 | IRAP relay |
| 4 | RUN relay |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Tailgate latch |
| 2 | Transmission Output Speed Sensor |
| 3 | Rear demist |
| 4 | Outside rear view mirror heater |
| 5 | Sunroof |
| 6 | CVT control module |
| 7 | Mass air flow sensor |
| 8 | - |
| 9 | ABS valve |
| 10 | Regulated voltage control |
| 11 | Rear view camera |
| 12 | Central gateway module |
| 13 | - |
| 14 | ECM/TCM |
| 15 | FICM / Starter |
| 16 | Fuel pump motor |
| 17 | ECM 1 |
| 18 | ECM 2 |
| 19 | Injector, Ignition |
| 20 | A/C system |
| 21 | Intelligent battery sensor |
| 22 | Electric steering column lock |
| 23 | Cooling fan low |
| 24 | Virtual Key pass System Sensor |
| 25 | Outside rear view mirror switch |
| 26 | ECM/Automated manual transmission module |
| 27 | Canister vent solenoid |
| 28 | - |
| 29 | Auxiliary occupant sensing |
| 30 | Headlamp levelling motor |
| 31 | Horn |
| 32 | Front fog lamp |
| 33 | High beam left |
| 34 | High beam right |
| 35 | Air Quality Ioniser |
| 36 | Rear wiper motor |
| 37 | Cornering lamp left |
| 38 | Washer pump motor |
| 39 | Cornering lamp right |
| 40 | - |
| 41 | Virtual Key pass System Sensor |
| 42 | Starter 2 |
| 43 | In-panel bussed electric centre |
| 44 | Automated manual transmission/DC-DC converter |
| 45 | Starter 1 |
| 46 | Antilock brake system pump |
| 47 | Cooling fan HI |
| 48 | Front wiper motor |
| 49 | In-panel bussed electric centre accessory/RAP power |
| Relays | |
| 1 | Rear demist relay |
| 2 | TCM relay |
| 3 | Fuel pump motor relay |
| 4 | STRTR SOL2 relay |
| 5 | Air conditioning clutch relay |
| 6 | - |
| 7 | Fan lo relay |
| 8 | RUN/CRNK relay |
| 9 | PWR/TRN relay |
| 10 | STRTR SOL1 relay |
| 11 | Fan HI relay |
| 12 | Front fog lamp relay |
