Toyota Tacoma 2005 Fuse Box Info

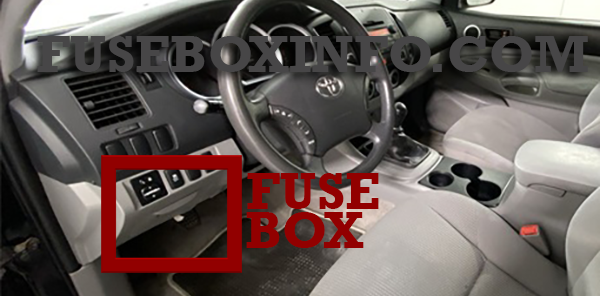

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side.

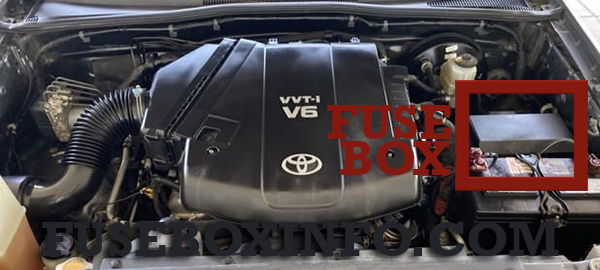

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 25. IGN | 15A | Multiport fuel injection system/sequential multiport fuel injection system, engine immobilizer system, anti−lock brake system, traction control system, vehicle stability control system, SRS airbag system, front passenger occupant classification system |
| 26. GAUGE | 7.5A | Meter and gauge, emergency flashers, front passenger’s seat belt warning system |
| 27. TAIL | 10A | Tail lights, license plate lights, parking lights, multiport fuel injection system/sequential multiport fuel injection system, front fog lights, instrument panel light control, illuminations |
| 28. ACC | 7.5A | Shift lock system, outside rear view mirrors, audio system, power outlets |
| 29. PWR OUTLET | 15A | Power outlets |
| 30. DR LCK | 20A | Door lock system |
| 31. IG1 NO.2 | 10A | Anti−lock brake system, vehicle stability control system, stop lights, charging system, multiport fuel injection system/sequential multiport fuel injection system, air conditioning system, instrument panel light control, clutch start cancel switch, rear differential lock system, power outlets |
| 32. IG1 | 10A | Back−up lights, air conditioning system, passenger airbag manual on−off switch, shift lock system |
| 33. P RR P/W | 20A | Rear passenger’s power window (right side) |
| 34. P FR P/W | 20A | Front passenger’s power window |
| 35. WSH | 10A | Wipers and washer |
| 36. D RR P/W | 20A | Rear passenger’s power window (left side) |
| 37. 4WD | 20A | Four−wheel drive system, rear differential lock system |
| 38. WIP | 30A | Wipers and washer |
| 46. D FR P/W | 30A | Power windows |
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. A/C | 10A | Air conditioning system |
| 2. FR FOG | 15A | Front fog lights |
| 3. TOWING TAIL | 30A | Trailer lights (tail lights) |
| 4. STOP | 10A | Stop lights, high mounted stop light, vehicle stability control system, anti−lock brake system, shift lock system, multiport fuel injection system/ sequential multiport fuel injection system, towing converter |
| 5. OBD | 7.5A | On−board diagnosis system |
| 6. EFI NO.2 | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 7. TOWING BRK | 30A | Trailer brake control |
| 8. BATT CHG | 30A | Trailer sub battery |
| 9. TOWING | 30A | Towing converter |
| 10. TRN−HAZ | 15A | Turn signal lights, emergency flashers, meter and gauge |
| 11. RADIO NO.2 | 30A | Audio system |
| 12. HEAD (LO RH) | 10A | Right−hand headlight (low beam) |
| 13. HEAD (LO LH) | 10A | Left−hand headlight (low beam), front fog light |
| 14. HEAD (HI RH) | 10A | Right−hand headlight (high beam) |
| 15. HEAD (HI LH) | 10A | Left−hand headlight (high beam), meter and gauge |
| 16. ETCS | 10A | Multiport fuel injection system/sequential multiport fuel injection system, electronic throttle control system |
| 17. ALT−S | 7.5A | Charging system |
| 18. EFI | 20A | Multiport fuel injection system/sequential multiport fuel injection system |
| 19. HORN | 10A | Horn |
| 20. A/F HEATER | 15A | Multiport fuel injection system/sequential multiport fuel injection system |
| 21. ECU−B | 7.5A | Wireless remote control system, air conditioning system, multiplex communication system, engine immobilizer system, meter and gauge, clock, front passenger occupant classification system |
| 22. DOME | 7.5A | Interior light, personal lights |
| 23. RADIO NO.1 | 10A | Audio system |
| 24. STA | 7.5A | Starting system, multiport fuel injection system/sequential multiport fuel injection system, meter and gauge, clutch start cancel switch |
| 39. J/B | 50A | “TAIL”, “AC SKT”, “DR LCK”, “D FR P/W”, “D RR P/W”, “P FR P/W”, “P RR P/W” |
| 40. AM1 | 50A | “ACC”, “IG1”, “IG1 NO.2”, “WIP”, “WSH”, “4WD”, “STA” |
| 41. HEATER | 50A | “A/C”, air conditioning system |
| 42. ABS NO.1 | 50A | Anti−lock brake system, vehicle stability control system |
| 43. AM2 | 30A | “IGN”, “GAUGE”, multiport fuel injection system/sequential multiport fuel injection system |
| 44. A/PUMP | 50A | Multiport fuel injection system/sequential multiport fuel injection system |
| 45. ABS NO.2 | 30A | Anti−lock brake system, vehicle stability control system |
| 47. AC SKT | 100A | Cigarette lighter, power outlets |
| 48. ALT |
120A (without towing package) 140A (with towing package) |
“AM1”, “AC SKT”, “HEATER”, “FR FOG”, “STOP”, “OBD”, “J/B”, “TOWING TAIL”, “TOWING BRK”, “BATT CHG” |
