Toyota Tacoma 2000 Fuse Box Info
Passenger compartment fuse box location:

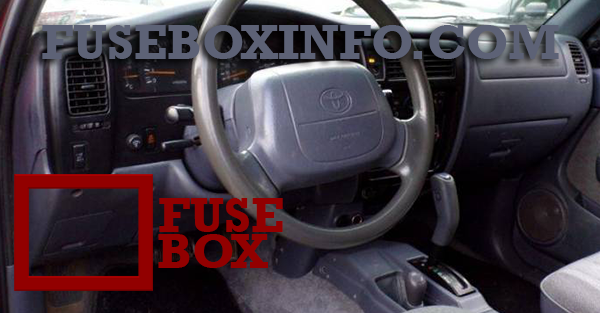

The fuse box is located under the instrument panel behind the cover on the driver’s side.

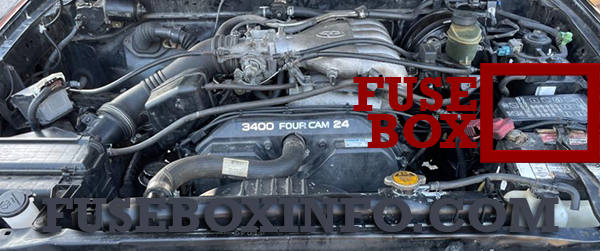

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 18. STA | 7.5A | Clutch start cancel system, starting system, gauges and meters |
| 19. 4WD | 20A | A.D.D. control system, four-wheel drive control system, rear differential lock system |
| 20. GAUGE | 10A | Gauges and meters, back−up lights, cruise control system, power antenna, power door lock control system, electronically controlled automatic transmission system, starting system, charging system, air conditioning system |
| 21. TURN | 10A | Turn signal lights, emergency flashers |
| 22. ECU-IG | 15A | Cruise control system, anti−lock brake system, automatic transmission shift lock system |
| 23. WIPER | 20A | Windshield wipers and washer |
| 24. IGN | 7.5A | Discharge warning light, SRS airbag system, seat belt pretensioners, multiport fuel injection system/ sequential multiport fuel injection system |
| 25. RADIO | 7.5A | Car audio system, power antenna |
| 26. CIG | 15A | Cigarette lighter, clock, power rear view mirrors, back−up lights, automatic transmission shift lock system, SRS airbag system, seat belt pretensioners |
| 27. ECU-B | 15A | SRS warning light, daytime running light system, cruise control system, SRS airbag system, seat belt pretensioners |
| 28. POWER | 30A | Power windows |
Engine compartment fuse box (with daytime running light system):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. PWR OUTLET | 15A | Power outlet |
| 2. DRL | 7.5A | Daytime running light system |
| 3. HEAD (HI RH) | 10A | Right-hand headlight (high beam), hi-beam indicator light |
| 4. HEAD (HI LH) | 10A | Left-hand headlight (high beam) |
| 5. HEAD (LO RH) | 10A | Right-hand headlight (low beam) |
| 6. HEAD (LO LH) | 10A | Left-hand headlight (low beam) |
| 7. TAIL | 10A | Tail lights, licence plate lights |
| 8. PANEL | 10A | Emergency flashers, heater control system, air conditioning system, gauges and meters, clock, car audio system, overdrive indicator light, glove box light, cigarette lighter, instrument panel lights, rear differential lock system, Multiport fuel injection system/ sequential multiport fuel injection system, electronically controlled automatic transmission system |
| 9. A.C | 10A | Air conditioning system |
| 10. STOP | 15A | Stop lights, high-mounted stoplight, cruise control system |
| 11. ALT-S | 7.5A | Charging system |
| 12. DOME | 15A | Car audio system, power antenna, interior light, clock, ignition switch light, personal lights, door courtesy lights |
| 13. OBD | 10A | On-board diagnosis system |
| 14. HORN | 15A | Emergency flashers, horns |
| 15. EFI | 15A | Multiport fuel injection system/sequential multiport fuel injection system |
| 29. AM1 | 40A | Starting system |
| 30. AM2 | 30A | Ignition system |
| 31. ABS | 60A | Anti-lock brake system |
| 32. HEATER | 40A | ”A.C” fuse |
| 33. ALT | 80A | ”ABS”, ”AM1”, ”HEATER”, ”A.C”, ”TAIL”, ”PANEL”, ”STOP” and ”ALT−S”, ”PWR OUTLET” fuses |
Engine compartment fuse box (without daytime running light system):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. PWR OUTLET | 15A | Power outlet |
| 7. TAIL | 10A | Tail lights, licence plate lights |
| 8. PANEL | 10A | Emergency flashers, heater control system, air conditioning system, gauges and meters, clock, car audio system, overdrive indicator light, glove box light, cigarette lighter, instrument panel lights, rear differential lock system, Multiport fuel injection system/ sequential multiport fuel injection system, electronically controlled automatic transmission system |
| 9. A.C | 10A | Air conditioning system |
| 10. STOP | 15A | Stop lights, high-mounted stoplight, cruise control system |
| 11. ALT-S | 7.5A | Charging system |
| 12. DOME | 15A | Car audio system, power antenna, interior light, clock, ignition switch light, personal lights, door courtesy lights |
| 13. OBD | 10A | On-board diagnosis system |
| 14. HORN | 15A | Emergency flashers, horns |
| 15. EFI | 15A | Multiport fuel injection system/sequential multiport fuel injection system |
| 16. HEAD (RH) | 10A | Right-hand headlight |
| 17. HEAD (LH) | 10A | Left-hand headlight |
| 29. AM1 | 40A | Starting system |
| 30. AM2 | 30A | Ignition system |
| 31. ABS | 60A | Anti-lock brake system |
| 32. HEATER | 40A | ”A.C” fuse |
| 33. ALT | 80A | ”ABS”, ”AM1”, ”HEATER”, ”A.C”, ”TAIL”, ”PANEL”, ”STOP” and ”ALT−S”, ”PWR OUTLET” fuses |
