Toyota Tacoma 2002 Fuse Box

Toyota Tacoma 2002 Fuse Box Info

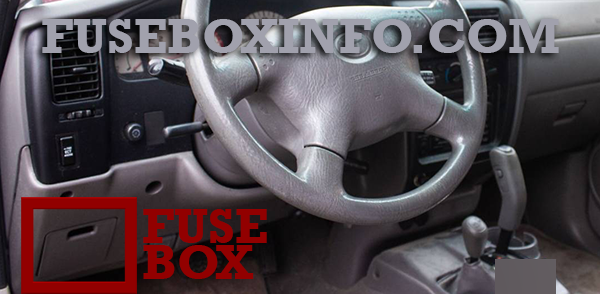

Passenger compartment fuse box location:

The fuse box is located under the instrument panel behind the cover on the driver’s side.

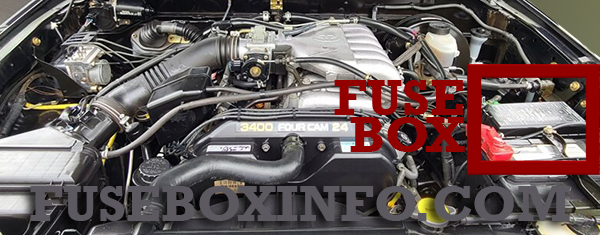

Engine compartment fuse box location:



Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° and Name Rating Functions
16. ECU−IG 7.5A Cruise control system, anti−lock brake system, automatic transmission shift lock system, SRS airbag system
17. TURN 10A Turn signal lights, emergency flashers
18. WIPER 20A Windshield wipers and washer
19. 4WD 20A A.D.D. control system, four−wheel drive control system, rear differential lock system
20. ACC 15A Cigarette lighter, clock, power rear view mirrors, back−up lights, automatic transmission shift lock system, SRS airbag system, seat belt pretensioners, car audio system
21. GAUGE 10A Day time running light system, back−up lights, cruise control system, rear differential lock system, electronically controlled automatic transmission system, starting system, charging system, air conditioning system
22. IGN 7.5A Gauges and meters, SRS airbag system, seat belt pretensioners, multiport fuel injection system/sequential multiport fuel injection system
23. ECU−B 7.5A SRS warning light, air conditioning system
24. HORN−HAZ 15A Emergency flashers, horns
25. STA 7.5A Clutch start cancel system, starting system
26. STOP 10A Stop lights, high mounted stoplight, cruise control system, anti− lock brake system, multiport fuel injection system/sequential multiport fuel injection system
27. POWER 30A Power windows, power seat



Engine compartment fuse box (with daytime running light system):

Fuse/Relay N° and Name Rating Functions
3. DRL 7.5A Daytime running light system
4. HEAD (HI RH) 10A Right−hand headlight (high beam), high beam indicator light
5. HEAD (HI LH) 10A Left−hand headlight (high beam)
6. HEAD (LO RH) 10A Right−hand headlight (low beam)
7. HEAD (LO LH) 10A Left−hand headlight (low beam)
8. TAIL 10A Tail lights, licence plate lights
9. A.C 10A Air conditioning system
10. FOG 15A No circuit
11. DOME 15A Car audio system, interior light, clock, personal lights, door courtesy light, day time running light system, gauges and meters
12. OBD 7.5A On−board diagnosis system
13. EFI 20A Multiport fuel injection system/sequential multiport fuel injection system
14. ALT−S 7.5A Charging system
15. PWR OUTLET 15A Power outlet
28. J/B 50A All components in "POWER", "HORN.HAZ", "STOP" and "ECU−B" fuses
29. AM2 30A Ignition system, multiport fuel injection system/sequential fuel injection system
30. HEATER 50A All components in "A.C" fuse
31. AM1 40A Starting system
32. ABS 60A Anti−lock brake system
33. ALT 120A All components in "AM1", "HEATER", "A.C", "TAIL", "ALT−S" and "PWR OUTLET" fuses



Engine compartment fuse box (without daytime running light system):

Fuse/Relay N° and Name Rating Functions
1. HEAD (RH) 10A Right−hand headlight
2. HEAD (LH) 10A Left−hand headlight
8. TAIL 10A Tail lights, licence plate lights
9. A.C 10A Air conditioning system
10. FOG 15A No circuit
11. DOME 15A Car audio system, interior light, clock, personal lights, door courtesy light, day time running light system, gauges and meters
12. OBD 7.5A On−board diagnosis system
13. EFI 20A Multiport fuel injection system/sequential multiport fuel injection system
14. ALT−S 7.5A Charging system
15. PWR OUTLET 15A Power outlet
28. J/B 50A All components in "POWER", "HORN.HAZ", "STOP" and "ECU−B" fuses
29. AM2 30A Ignition system, multiport fuel injection system/sequential fuel injection system
30. HEATER 50A All components in "A.C" fuse
31. AM1 40A Starting system
32. ABS 60A Anti−lock brake system
33. ALT 120A All components in "AM1", "HEATER", "A.C", "TAIL", "ALT−S" and "PWR OUTLET" fuses
