Volvo S60 Cross Country 2018 Fuse Box Info

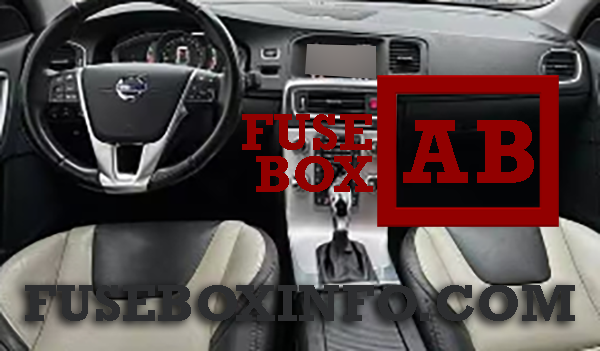

Passenger compartment fuse box location:
The fuse boxes in the passenger compartment are located under the glove box.

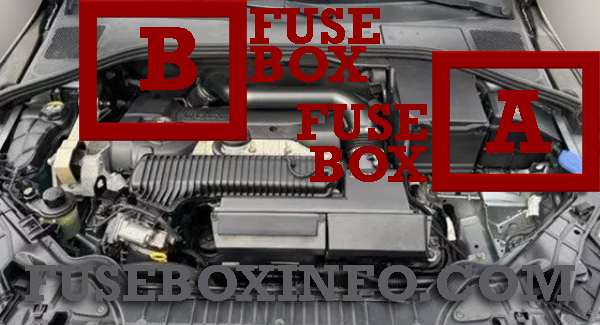

Engine compartment fuse box location:

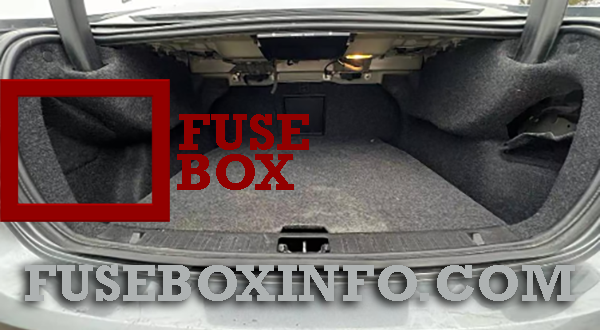

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
* Option/accessory
Passenger compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | - | - |
| 3 | 7.5A | Interior lighting; Driver's door control panel, power windows; Power seats* |
| 4 | 5A | Combined instrument panel |
| 5 | 10A | Adaptive cruise control, ACC*; collision warning system* |
| 6 | 7.5A | Interior lighting; Rain sensor* |
| 7 | 7.5A | Steering wheel module |
| 8 | 10A | Central locking system, fuel filler flap |
| 9 | 15A | Heated steering wheel* |
| 10 | 15A | Heated windscreen* |
| 11 | 10A | Unlocking, boot lid |
| 12 | 10A | Folding head restraint* |
| 13 | 20A | Fuel pump |
| 14 | 5A | Movement detector alarm*; Climate panel |
| 15 | 15A | Steering lock |
| 16 | 5A | Siren*; Data link connector OBDII |
| 17 | - | - |
| 18 | 10A | Airbags |
| 19 | 5A | Collision warning system* |
| 20 | 7.5A | Accelerator pedal sensor; Dimming interior rearview mirror*; Seat heating, rear* |
| 21 | 15A | Infotainment control module (Performance); Audio (Performance) |
| 22 | 5A | Brake light |
| 23 | 20A | Sunroof* |
| 24 | 5A | Immobiliser |
* Option/accessory
Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | Primary fuse for the central electronic module (CEM) under the glovebox |
| 2 | 50A | Primary fuse for the central electronic module (CEM) under the glovebox |
| 3 | 60A | Primary fuse for central electrical unit in cargo area |
| 4 | 60A | Primary fuse for relay/fuse box under the glovebox |
| 5 | 60A | Primary fuse for relay/fuse box under the glovebox |
| 6 | - | - |
| 7 | 100A | Electric additional heater* |
| 8 | 40A | Heated windscreen*, left-hand side |
| 9 | 30A | Windscreen wipers |
| 10 | 25A | Parking heater* |
| 11 | 40A | Ventilation fan* |
| 12 | 40A | Heated windscreen*, right-hand side |
| 13 | 40A | ABS pump |
| 14 | 20A | ABS valves |
| 15 | 20A | Headlamp washers* |
| 16 | 10A | Headlamp levelling*; Active Xenon headlamps - ABL* |
| 17 | 20A | Primary fuse for the central electronic module (CEM) under the glovebox |
| 18 | 5A | ABS |
| 19 | 5A | Adjustable steering force* |
| 20 | 10A | Engine control module; Transmission control module; Airbags |
| 21 | 10A | Heated washer nozzles* |
| 22 | - | - |
| 23 | 5A | Headlamp control |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | 5A | Relay coils |
| 28 | 20A | Auxiliary lamps* |
| 29 | 15A | Horn |
| 30 |
5A 10A |
Relay coil in main relay for engine management system (4-cyl.); Engine control module (4-cyl.) Relay coil in main relay for engine management system (5-cyl. diesel); Engine control module (5-cyl. diesel) |
| 31 | 15A | Transmission control module |
| 32 | 15A | Supporting coolant pump (4-cyl. diesel) |
| 33 | 5A | Relay coils in central electrical unit in engine compartment cold zone Start/Stop |
| 34 | - | - |
| 35 |
10A 20A |
Glow control module (5-cyl. diesel) Engine control module (4-cyl.) |
| 36 |
15A 20A |
Engine control module (5-cyl. diesel) Engine control module (4-cyl.) |
| 37 |
10A 15A |
Mass air flow sensor (4-cyl.); Thermostat(4-cyl. petrol); EVAP valve (4-cyl. petrol); Cooling pump for EGR (4-cyl. diesel) Mass airflow meter (5-cyl. diesel); Control valves (5-cyl. diesel) |
| 38 |
10A 15A |
Solenoid clutch A/C (5-cyl. diesel); Valves (5-cyl. diesel); Oil level sensor Valves (4-cyl.); Oil pump (4-cyl. petrol); Lambda-sond, centre (4-cyl. petrol); Lambda-sond, rear (4-cyl. diesel) |
| 39 | 15A |
Lambda-sond, front (4-cyl.); Lambda-sond, rear (4-cyl. petrol) Lambda-sonds (5-cyl. diesel); Control module, radiator roller cover (5-cyl. diesel) |
| 40 |
15A 20A |
Ignition coils (4-cyl. petrol) Diesel filter heater (diesel) |
| 41 |
7.5A 10A |
Solenoid clutch A/C (4-cyl.); Glow control module (4-cyl. diesel); Oil pump (4-cyl. diesel) Crankcase ventilation heater (5-cyl. diesel); Oil pump automatic gearbox (5-cyl. diesel Start/Stop) |
| 42 |
50A 70A |
Coolant pump (4-cyl. petrol) Glow plugs (diesel) |
| 43 |
60/80A 80A |
Cooling fan (petrol) Cooling fan (diesel) |
| 44 | 100A | Power steering |
* Option/accessory
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| A1 | 175A | Main fuse for central electrical unit in the engine compartment |
| A2 | 175A | Main fuse for central electronic module (CEM) under the glovebox, relay/fuse box under the glovebox, central electrical unit in cargo area |
| 1 | 100A | Electric additional heater* |
| 2 | 50A | Primary fuse for the central electronic module (CEM) under the glovebox |
| 3 | 60A | Primary fuse for relay/fuse box under the glovebox |
| 4 | 60A | Heated windscreen* |
| 5 | 60A | Primary fuse for central electrical unit in cargo area |
| 6 | 40A | Ventilation fan |
| 7 | - | - |
| 8 | - | - |
| 9 | 30A | Start relay |
| 10 | - | - |
| 11 | 70A | Support battery |
| 12 | 5A | Central electronic module (CEM) - reference voltage support battery |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Electric parking brake, left |
| 2 | 30A | Electric parking brake, right |
| 3 | 30A | Rear window defroster |
| 4 | 15A | Trailer socket 2* |
| 5 | - | - |
| 6 | 15A | 12 V socket, cargo area |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 40A | Trailer socket 1* |
| 12 | - | - |
* Option/accessory
