Volvo XC70 2007 Fuse Box Info

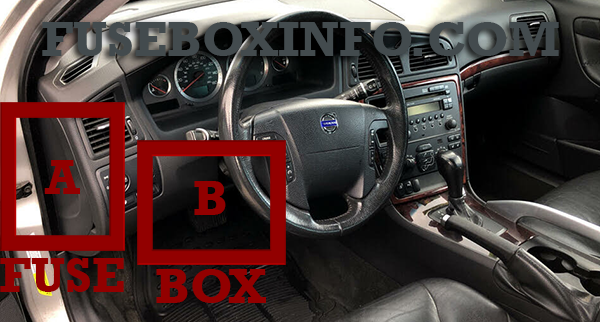

Passenger compartment fuse box location:
The fuse box A in the passenger compartment is located inside the access panel on the edge of the dashboard. The fuse box B is located behind the plastic cover below the steering wheel.

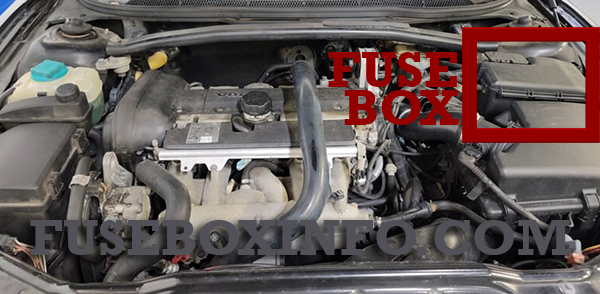

Engine compartment fuse box location:

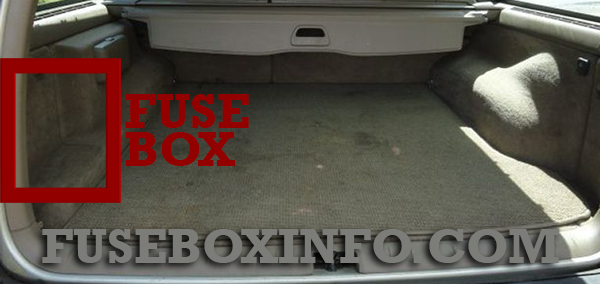

Luggage compartment fuse box location:
The fuse box in the trunk is located behind the panel on the driver's side.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse box A):
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Power driver's seat (option) |
| 2 | 25A | Power passenger's seat (option) |
| 3 | 30A | Climate system blower |
| 4 | 25A | Control module - front passenger's door |
| 5 | 25A | Control module - driver's door |
| 6 | 10A | Ceiling lighting, upper electrical control module |
| 7 | 15A | Moon roof (option) |
| 8 | 7.5A | Ignition switch, SRS system, engine control module, immobilizer, transmission control module (R-models) |
| 9 | 5A | Onboard diagnostics, headlight switch, steering wheel angle sensor, steering wheel control module |
| 10 | 20A | Audio system |
| 11 | 30A | Audio system amplifier |
| 12 | 10A | Navigation system display (option) |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
Passenger compartment fuse box (Fuse box B):
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Heated passenger's seat (option) |
| 2 | 15A | Heated driver's seat (option) |
| 3 | 15A | Horn |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | 5A | Alarm siren |
| 9 | 5A | Brake light switch feed |
| 10 | 10A | Instrument panel, climate system, power driver's seat (option), Occupant Weight Sensor |
| 11 | 15A | 12-volt sockets - front and rear seats |
| 12 | - | - |
| 13 | - | - |
| 14 | 15A | Headlight wipers (option) |
| 15 | 5A | ABS, STC/DSTC |
| 16 | 10A | Power steering, Bi-Xenon headlights (option) |
| 17 | 7.5A | Driver's side front foglight (option) |
| 18 | 7.5A | Passenger's side front foglight (option) |
| 19 | - | - |
| 20 | - | - |
| 21 | 10A | Transmission control module, reverse gear block (M66) |
| 22 | 10A | Driver's side high beam |
| 23 | 10A | Passenger's side high beam |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | 5A | Power passenger's seat (option), audio system |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | 20A | Vacuum pump |
| 34 | 15A | Washer pump - headlight wipers (option) |
| 35 | - | - |
| 36 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | ABS |
| 2 | 30A | ABS |
| 3 | - | - |
| 4 | - | - |
| 5 | 20A | Auxiliary lights (option) |
| 6 | 35A | Starter motor relay |
| 7 | 25A | Windshield wipers |
| 8 | 15A | Fuel pump |
| 9 | 15A | Transmission control module (R-models) |
| 10 | 20A | Ignition coils, engine control module |
| 11 | 20A | Throttle pedal sensor, A/C compressor, e-box fan |
| 12 | 15A | Engine control module, fuel injectors, mass airflow sensor |
| 13 | 10A | Throttle housing control module |
| 14 | 20A | Heated oxygen sensor |
| 15 | 10A | Crankcase ventilation heater, solenoid valves |
| 16 | 20A | Driver’s side low beam headlight |
| 17 | 20A | Passenger's side low beam headlight |
| 18 | - | - |
| 19 | 5A | Engine control module, engine relay |
| 20 | 15A | Parking lights |
| 21 | - | - |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Backup lights |
| 2 | 20A | Parking lights, foglights, cargo area lighting, license plate lighting, brake lights |
| 3 | 15A | Accessory control module |
| 4 | - | - |
| 5 | 10A | Rear Electronic Module |
| 6 | 7.5A | CD-changer (option), Navigation system (option) |
| 7 | 15A | Trailer wiring (30-feed) |
| 8 | 15A | 12-volt socket - cargo area |
| 9 | 20A | Rear passenger's side door - power window cut-out function |
| 10 | 20A | Rear driver's side door - power window, power window cut-out function |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | 15A | Subwoofer (option) |
| 15 | - | - |
| 16 | - | - |
| 17 | 5A | Accessory audio |
| 18 | - | - |
| 19 | 15A | Tailgate wiper |
| 20 | 20A | Trailer wiring (15-feed) |
| 21 | - | - |
| 22 | - | - |
| 23 | 7.5A | All Wheel Drive (option) |
| 24 | 15A | Four-C chassis system (option) |
| 25 | - | - |
| 26 | 5A | Park assist (option) |
| 27 | 30A | Main fuse: trailer wiring, Four-C, park assist, All Wheel Drive |
| 28 | 15A | Central locking system |
| 29 | 25A | Driver's side trailer lighting: parking lights, turn signal |
| 30 | 25A | Passenger's side trailer lighting: parking light, brake light, fog light, turn signal |
| 31 | 40A | Main fuse: fuses 37 and 38 |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | 20A | Heated rear window |
| 38 | 20A | Heated rear window |
