Volvo XC70 2003 Fuse Box Info

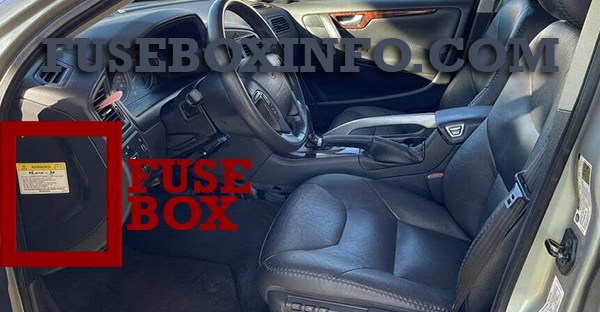

Passenger compartment fuse box location:
The fuse box in the passenger compartment is located at the far left side of the instrument panel.

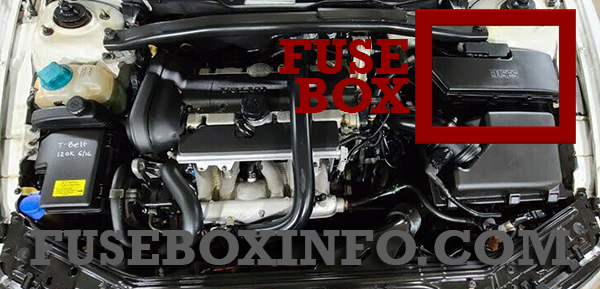

Engine compartment fuse box location:

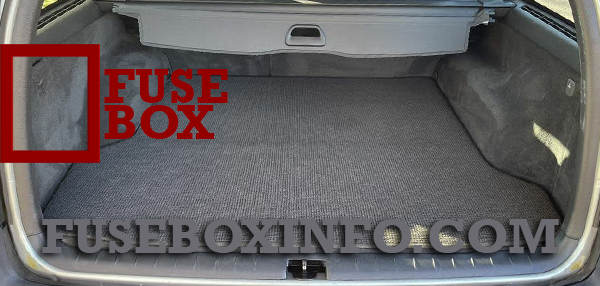

Luggage compartment fuse box location:
The fuse box in the cargo area are located on the trim on the left-hand side.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Low beam headlights |
| 2 | 20A | High beam headlights |
| 3 | 30A | Power driver's seat |
| 4 | 30A | Power passenger's seat |
| 5 | - | - |
| 6 | - | - |
| 7 | 15A | Heated seats - front left (option) |
| 8 | 15A | Heated seats - front right (option) |
| 9 | 5A | ABS/STC/DSTC |
| 10 | - | - |
| 11 | - | - |
| 12 | 15A | Headlight wipers (certain models) |
| 13 | 20A | Electric socket 12 V |
| 14 | 5A | Power passenger's seat |
| 15 | 5A | Audio system, VNS |
| 16 | 20A | Audio system |
| 17 | 30A | Audio amplifier |
| 18 | 15A | Front fog lights |
| 19 | 10A | VNS display |
| 20 | - | - |
| 21 | 10A | Automatic transmission, shiftlock, extended D2 feed |
| 22 | 20A | Direction indicators |
| 23 | 5A | Headlight switch module, climate control system, onboard diagnostic connector, steering wheel lever modules |
| 24 | 10A | Relay extended D1 feed: climate control system, power driver's seat, driver's info |
| 25 | 10A | Ignition switch, relay starter motor, SRS, engine control module |
| 26 | 30A | Climate control system blower |
| 27 | - | - |
| 28 | 10A | Electronic module - courtesy lighting |
| 29 | - | - |
| 30 | 10A | Left front/rear parking lights |
| 31 | 10A | Right front/rear parking lights, license plate lights |
| 32 | 10A | Central electrical module, vanity mirror lighting, power steering, glove compartment light, interior courtesy lighting |
| 33 | 15A | Fuel pump |
| 34 | 15A | Power sun roof |
| 35 | 25A | Central locking system, power windows - left door mirror |
| 36 | 25A | Central locking system, power windows - right door mirror |
| 37 | 30A | Rear power windows, power child safety locks |
| 38 | 5A | Alarm siren |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Accessories |
| 2 | 15A | Auxiliary lamps (option) |
| 3 | 15A | Vacuum pump |
| 4 | 20A | Oxygen sensors |
| 5 | 15A | Crankcase ventilation heater, Solenoid valves |
| 6 | 15A | Mass airflow sensor, Engine control module, Injectors |
| 7 | 10A | Throttle module |
| 8 | 10A | AC compressor, accelerator pedal position sensor, E-box fan |
| 9 | 15A | Horn |
| 10 | 10A | Tailgate wiper |
| 11 | 20A | AC compressor, Ignition coils |
| 12 | 5A | Brake light switch |
| 13 | 25A | Windshield wipers |
| 14 | 30A | ABS/STC/DSTC |
| 15 | - | - |
| 16 | 15A | Windshield washers, headlight wiper/washers (certain models) |
| 17 | 10A | Low beam, right |
| 18 | 10A | Low beam, left |
| 19 | 30A | ABS/STC/DSTC |
| 20 | 15A | High beam, left |
| 21 | 15A | High beam, right |
| 22 | 25A | Starter motor |
| 23 | 5A | Engine control module |
| 24 | - | - |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Rear electrical module, cargo area lighting |
| 2 | 10A | Rear fog light |
| 3 | 15A | Brake lights |
| 4 | 10A | Backup lights |
| 5 | 5A | Rear window defroster, relay 15I - accessories |
| 6 | 10A | Unlocking tailgate |
| 7 | 15A | Auxiliary 12 volt socket in cargo area (option) |
| 8 | 15A | Central locking rear doors/fuel filler door |
| 9 | 20A | Traailer (30 supply) |
| 10 | 10A | CD changer, VNS |
| 11 | 15A | Accessory control module (AEM) |
| 12 | 15A | Tailgate wiper |
| 13 | 15A | Loudspeaker (subwoofer) cargo area (option) |
| 14 | 7.5A | Brake lights |
| 15 | 15A | Trailer (15I feed) |
| 16 | - | - |
| 17 | 7.5A | All Wheel Drive control module |
| 18 | - | - |
