Volvo XC70 2009 Fuse Box Info

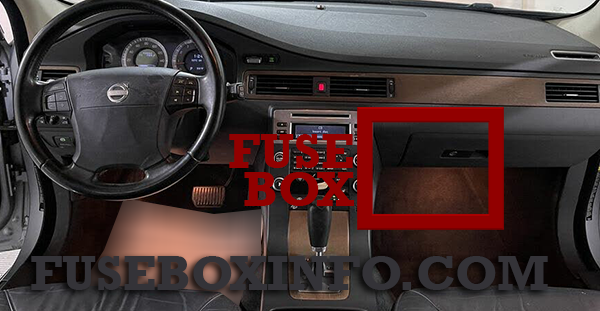

Passenger compartment fuse box location:
The fuse box in the passenger compartment is located under the glove box.

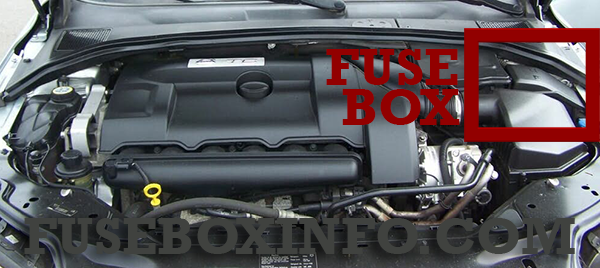

Engine compartment fuse box location:

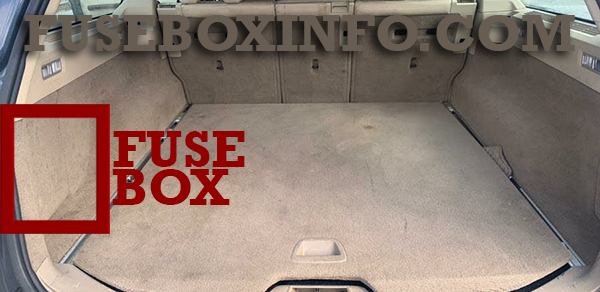

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Rain sensor (option) |
| 2 | 10A | SRS system |
| 3 | 5A | ABS brakes. Electric parking brake |
| 4 | 7.5A | Accelerator pedal, heated seats (option) |
| 5 | - | - |
| 6 | 15A | ICM display, CD & Radio |
| 7 | 7.5A | Steering wheel module |
| 8 | - | - |
| 9 | 15A | High beam |
| 10 | 20A | Moonroof (option) |
| 11 | 7.5A | Backup lights |
| 12 | - | - |
| 13 | 15A | Front fog light (option) |
| 14 | 15A | Windshield washers |
| 15 | 10A | Adaptive cruise control ACC (option) |
| 16 | - | - |
| 17 | 7.5A | Overhead courtesy lighting, Control panel driver's door/ Power passenger seat (option) |
| 18 | 5A | Information display |
| 19 | 5A | Power driver's seat (option) |
| 20 | 15A | Tailgate wiper |
| 21 | 5A | Remote key receiver, Alarm sensors |
| 22 | 20A | Fuel pump |
| 23 | 20A | Electric steering column lock |
| 24 | - | - |
| 25 | 10A | Lock, tank/tailgate |
| 26 | 5A | Alarm siren. ECC |
| 27 | 5A | Start/stop engine button |
| 28 | 5A | Brake light switch |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | Circuit breaker |
| 2 | 50A | Circuit breaker |
| 3 | 60A | Circuit breaker |
| 4 | 60A | Circuit breaker |
| 5 | 50A | Circuit breaker |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | 30A | Windshield wipers |
| 10 | - | - |
| 11 | 40A | Climate system blower |
| 12 | - | - |
| 13 | 40A | ABS pump |
| 14 | 20A | ABS valves |
| 15 | - | - |
| 16 | 10A | Active Bi-Xenon Lights. Headlight leveling (option) |
| 17 | 20A | Central electrical module |
| 18 | 5A | Radar. ACC control module (option) |
| 19 | 5A | Speed related power steering |
| 20 | 10A | Engine Control Module (ECM), transmission, SRS |
| 21 | 10A | Heated washer nozzles |
| 22 | 20A | Vacuum pump I5T |
| 23 | 5A | Lighting panel |
| 24 | 15A | Headlight washers |
| 25 | 15A | 12-volt socket, front and rear seat |
| 26 | 10A | Moonroof (option), ceiling console/ ECC (option) |
| 27 | 5A | Engine compartment box |
| 28 | 20A | Auxiliary lights (option) |
| 29 | 15A | Horn |
| 30 | 10A | Engine Control Module (ECM) |
| 31 | 15A | Control module, automatic transmission |
| 32 | 15A | Compressor A/C |
| 33 | 5A | Coils |
| 34 | 30A | Starter motor relay |
| 35 | 20A | Ignition coils |
| 36 | 10A | Engine Control Module (ECM), throttle |
| 37 | 15A | Injection system |
| 38 | 10A | Engine valves |
| 39 | 15A | EVAP/heated oxygen sensor/ Injection |
| 40 | 20A | Crank case ventilation heater |
| 41 | 5A | Fuel leakage detection |
| 42 | - | - |
| 43 | - | - |
| 44 | 60A | Cooling fan |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Module A (black) | ||
| 1 | 25A | Switches in driver's door |
| 2 | 25A | Switches in passenger's door |
| 3 | 25A | Switches in rear door, driver's side |
| 4 | 25A | Switches in rear door, passenger's side |
| 5 | - | - |
| 6 | 15A | 12-V socket in trunk, cooler (option) |
| 7 | 30A | Rear window defroster |
| 8 | - | - |
| 9 | 15A | Trailer socket 2 (option) |
| 10 | 25A | Power driver's seat (option) |
| 11 | 40A | Trailer socket 1 (option) |
| 12 | 30A | Power tailgate (option) |
| Module B (white) | ||
| 1 | - | - |
| 2 | 15A | Control module Four C (option) |
| 3 | 15A | Heated driver's seat (option) |
| 4 | 15A | Heated passenger's seat (option) |
| 5 | 15A | Rear seat heater, passenger's side (option) |
| 6 | 10A | AWD control module |
| 7 | 15A | Rear seat heater, driver's side (option) |
| 8 | - | - |
| 9 | 25A | Power passenger's seat (option) |
| 10 | 20A | Keyless drive (option) |
| 11 | 30A | Electric parking brake – driver's side (option) |
| 12 | 30A | Electric parking brake – passenger's side (option) |
| Module D (blue) | ||
| 1 | 10A | Navigation system display (option) |
| 2 | - | - |
| 3 | 25A | Subwoofer (option) |
| 4 | 5A | SIRIUS satellite radio (option) |
| 5 | 25A | Audio amplifier (option) |
| 6 | 15A | Audio system |
| 7 | - | - |
| 8 | - | Reserve |
| 9 | - | Reserve |
| 10 | - | Reserve |
| 11 | - | Reserve |
| 12 | - | Reserve |
