Škoda Kodiaq iV 2025 Fuse Box Info
Passenger compartment fuse box location:

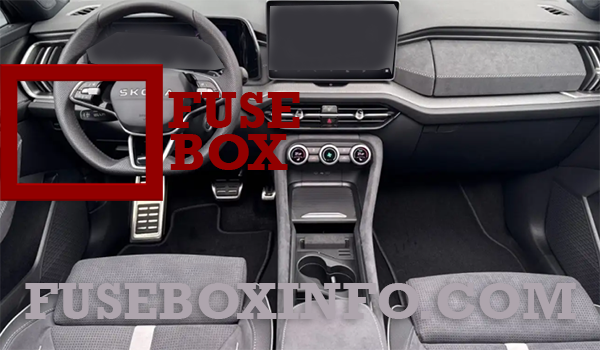

The fuse box is located behind the storage compartment on the driver’s side (left-hand drive). The fuse box is located behind the glove compartment on the passenger’s side. (right-hand drive).
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 3 | Towing bracket |
| 5 | Gearbox control |
| 6 | Interior lighting and backlighting |
| 7 | Front seat heating |
| 8 | Sunroof |
| 9 | Window controls (left-hand side), left exterior mirror (heating, tilting, glass position adjustment), central locking (left-hand side) |
| 11 | Towing bracket |
| 12 | Vehicle exterior lighting |
| 13 | Central locking, windscreen washers, fuel filler flap release, boot lid control |
| 14 | Music amplifier |
| 16 | Airbags |
| 18 | KESSY (keyless locking), steering wheel lock |
| 19 | Instrument cluster, emergency call, online services |
| 20 | USB sockets at the front and rear, Phone box |
| 21 | Rear radar sensors, Park Assist, rear view camera, monitoring the surroundings system (Top View), contactless operation of the electric boot lid, Car2X communication unit |
| 22 | Front camera for assist systems, front radar sensors, front radar, interior rear-view mirror |
| 23 | Front right seat with massage function, front right seat ventilation |
| 25 | Front left seat belt retractor |
| 26 | Window controls (right-hand side), right exterior mirror (heating, tilting, glass position adjustment), central locking (right-hand side) |
| 27 | Front right seat belt retractor |
| 28 |
High-voltage battery control system – safe disconnection of the high-voltage system The fuse may only be replaced by a specialist garage |
| 29 | Towing bracket |
| 30 | The Infotainment system |
| 31 | Towing bracket |
| 32 | Rear seat heating |
| 33 | Front left seat with massage function, front left seat ventilation |
| 35 | Vehicle exterior lighting |
| 36 | Heating/air conditioning fan |
| 37 | Electrically operated boot lid |
| 39 | Steering wheel heating |
| 40 | Alarm |
| 41 | Data bus |
| 43 | Air conditioning/heating, rear view heating, Smart Dials |
| 44 | Front interior lighting, parking brake, rain and light sensor, lights control, alarm system, diagnostic socket, headlights |
| 45 | Control lever under the steering wheel |
| 46 | The Infotainment system, Head-up display |
| 47 | Adaptive Chassis Control (DCC) |
| 48 | USB charging – at the interior rear-view mirror |
| 52 | 12V sockets |
| 58 | Park steering assistant |
| 59 | Interior rear-view mirror with auto-dimming, air conditioning coolant sensor, USB socket on the interior rear-view mirror |
| 60 | Diagnostic socket |
| 61 | Power electronics for electric drive |
| 66 | Rear wiper |
| 67 | Rear window heating |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 2 | ESP, engine control system |
| 3 | High-voltage battery charger, charging interface control unit, power electronics for electric drive |
| 4 | Front left headlight |
| 5 | Front right headlight |
| 9 | Horn |
| 10 | Front wipers |
| 11 | Air conditioning/heating |
| 14 | Engine sound generator |
| 16 | Automatic gearbox |
| 23 | Engine control system |
| 24 | Engine components |
| 25 | Engine components |
| 26 | Engine components |
| 27 | Engine components |
| 28 | Engine components |
| 29 | Fuel pump |
| 30 | Engine components |
| 32 | Windscreen heating |
