Škoda Scala 2019 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side.
Engine compartment fuse box location:
Fuse arrangement in engine compartment.
Fuse Box Diagram | Layout

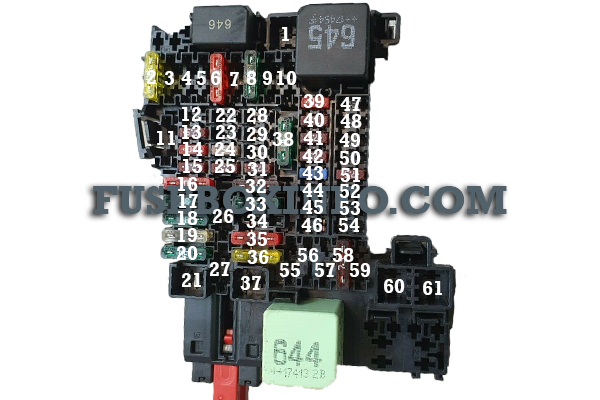

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Tow hitch |
| 2 | LED headlights - left side |
| 3 | Music amplifier |
| 4 | Headlight washers |
| 5 | Tilting/sliding sunroof |
| 6 | Central locking, windscreen washer, rear window wiper |
| 7 | Seat heating - rear |
| 8 | Climatronic |
| 9 | LED headlights - right side |
| 10 | Tow hitch |
| 11 | Electric boot lid |
| 12 | Heated steering wheel |
| 13 | Light switch, diagnosis connection, rain sensor, control lever under the steering wheel, front windscreen heating |
| 14 | Windscreen washer system |
| 15 | Instrument cluster, emergency call |
| 16 | Light - right side |
| 17 | Electric windows - right side |
| 18 | Windscreen wiper |
| 19 | Infotainment |
| 20 | Heated rear window |
| 21 | SCR (AdBlue®) |
| 22 | Not used |
| 23 | Reversing camera |
| 24 | Phonebox, GSM antenna, USB connection, Infotainment screen |
| 25 | Control lever under the steering wheel |
| 26 | Databus |
| 27 | Shock absorber adjustment (adaptive suspension) |
| 28 | Alarm system sensor |
| 29 | Alarm system horn |
| 30 | Ignition (ignition lock) |
| 31 | Air conditioning, heating |
| 32 | Passenger belt tensioners |
| 33 | Electric windows - left side |
| 34 | Driver belt tensioners |
| 35 | Light - left side |
| 36 | Horn |
| 37 | Heating of the front seats |
| 38 | Interior lighting, button lighting, headlight cleaning system, ambient lighting, manual air conditioning, heating |
| 39 | Assist systems |
| 40 | Light switch, headlights, headlight levelling, diagnostic connection, reversing light switch, control lever under the steering wheel |
| 41 | Interior mirror dimming, exterior mirror adjustment |
| 42 | Clutch pedal switch, engine start, air conditioning |
| 43 | Rear window wiper |
| 44 | Airbag system, airbag control lamp |
| 45 | Windscreen wiper |
| 46 | Seat heating - rear |
| 47 | Not used |
| 48 | Electric steering column lock, Kessy (keyless lock and start system) |
| 49 | SCR (AdBlue®) |
| 50 | USB connections at the back |
| 51 | Not used |
| 52 | Cigarette lighter / 12 volt socket in front |
| 53 | Ignition key trigger lock, automatic transmission |
| 54 | 12 volt socket in the luggage compartment |
| 55 | Not used |
| 56 | Manual air conditioning, heating |
| 57 | Not used |
| 58 | Windscreen washer system |
| 59 | Exterior mirror heating, washer nozzle heating |
| 60 | Tow hitch |
| 61 | Tow hitch |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Engine control unit |
| 2 | Exhaust flap, coolant pump, radiator blinds, SCR (AdBlue®), engine components |
| 3 | Lambda sensors, NOx control unit |
| 4 | Fuel pump, engine components |
| 5 | Radiator fan, boost pressure regulator, oil level and oil temperature sensor, engine components |
| 6 | Crankcase breather, glow plug system, engine components |
| 7 | Brake system (vacuum pump) |
| 8 | Fuel pump, engine components |
| 9 | Brake light switch |
| 10 | Databus, BCM controller, battery data module |
| 11 | Not used |
| 12 | Air Conditioning |
| 13 | Not used |
| 14 | ESC, engine control system, engine components |
| 15 | Automatic gearbox |
| 16 | Not used |
| 17 | Engine control system |
| 18 | Starter |
| 19 | Not used |
| 20 | ESC |
| 21 | ESC |
| 22 | Not used |
| 23 | Not used |
| 24 | Not used |
| 25 | Electric auxiliary heater, radiator fan |
| 27 | Electric auxiliary heater, radiator fan |
| 28 | Electric auxiliary heater |
| 29 | Heated windscreen |
