Škoda Karoq 2025 Fuse Box Info

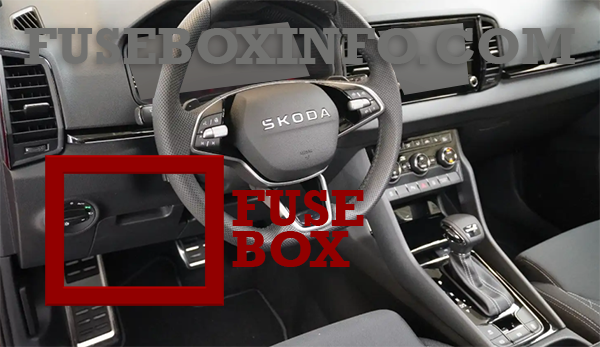

Passenger compartment fuse box location:
The fuse box is located behind the storage compartment on the driver’s side (left-hand drive). The fuse box is located behind the glove compartment on the passenger’s side. (right-hand drive).

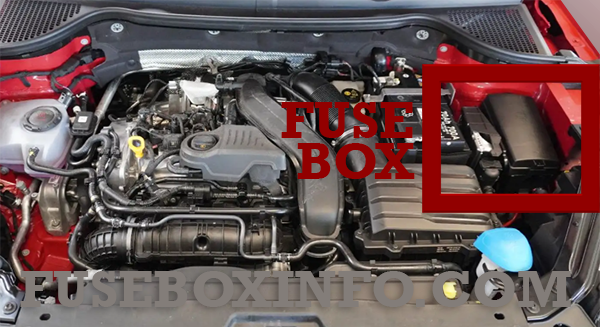

Engine compartment fuse box location:

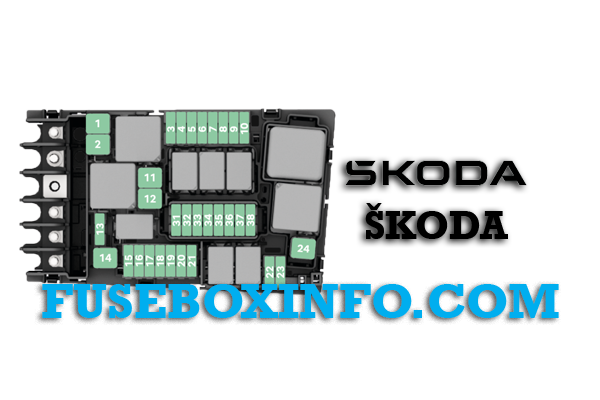

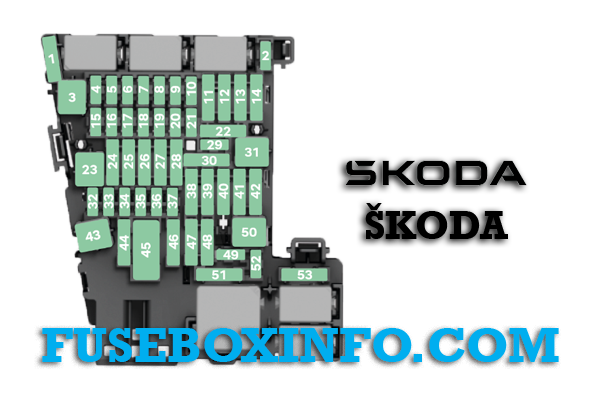

Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | SCR (AdBlue®) |
| 2 | Steering wheel heating |
| 5 | Data bus |
| 6 | Alarm system sensor |
| 7 | Front/rear air conditioning, independent heating receiver, rear window heating, automatic gearbox |
| 8 | Light switch, rain sensor, parking brake, interior lighting, headlights |
| 9 | Control lever under the steering wheel |
| 10 | Infotainment screen |
| 11 | Vehicle exterior lighting |
| 12 | The Infotainment system |
| 13 | Seat belt tensioners – left side |
| 14 | Air conditioning fan |
| 15 | Electric steering wheel lock |
| 16 | USB sockets, diagnostic outlet, Phone box |
| 17 | Instrument cluster, emergency call |
| 18 | Rear view camera, area view system (Area View) |
| 19 | KESSY (keyless locking and starting system) |
| 20 | SCR (AdBlue®), braking system |
| 21 | All-wheel drive |
| 22 | Towing bracket |
| 23 | Panoramic sunroof |
| 24 | Vehicle exterior lighting |
| 25 | Central locking – left front and rear doors, window controls – left side, left exterior mirror – heating, tilting, glass adjustment) |
| 26 | Front seat heating |
| 27 | Interior background illumination and lighting |
| 28 | Towing bracket |
| 29 | USB charging – at the rear and at the inside rear–view mirror |
| 31 | Opening the boot lid |
| 32 | Parking aid, Park Assist, lane change assistant Side Assist |
| 33 | Airbag |
| 34 | Air conditioning, reversing light switch, auto-dimming interior rear-view mirror, seat heating, parking brake, light switch, button bar |
| 35 | Diagnostic socket, front camera, vehicle distance monitor (e.g. ACC, Front Assist) |
| 38 | Towing bracket |
| 39 | Central locking – right front and rear doors, window controls – right side, right exterior mirror –heating, tilting, glass position adjustment |
| 40 | 12V sockets |
| 41 | Seat belt tensioners – right side |
| 42 | Locking (boot lid, tailgate, fuel filler cap), headlight washers, windscreen and rear window washers |
| 43 | Music amplifier |
| 44 | Towing bracket |
| 45 | Driver's seat electric control |
| 46 | 230-volt power socket |
| 47 | Rear wiper |
| 49 | Engine starting, clutch switch |
| 51 | Rear seat heating |
| 52 | Suspension adjustment (adaptive chassis) |
| 53 | Rear window heating |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | ESC assist system, parking brake |
| 2 | ESC assist system |
| 3 | Engine control system |
| 4 | Engine components |
| 6 | Brake sensor |
| 7 | Engine components |
| 8 | Lambda probe, NOx sensor |
| 9 | Engine components |
| 10 | Fuel pump |
| 11 | Electric auxiliary heater |
| 12 | Electric auxiliary heater |
| 13 | Automatic gearbox oil pump |
| 14 | Windscreen heating |
| 15 | Horn |
| 16 | Ignition, air conditioning |
| 17 | ESC assist system, engine control unit, main relay coil |
| 18 | 12V vehicle battery monitoring |
| 19 | Front wipers |
| 20 | Alarm |
| 21 | Automatic gearbox |
| 22 | Engine control system |
| 23 | Starter |
| 24 | Electric auxiliary heater |
| 36 | Front left headlight |
| 37 | Independent heater |
| 38 | Front right headlight |
