Škoda Karoq 2024 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the storage compartment on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).
Engine compartment fuse box location:
Fuse Box Diagram | Layout

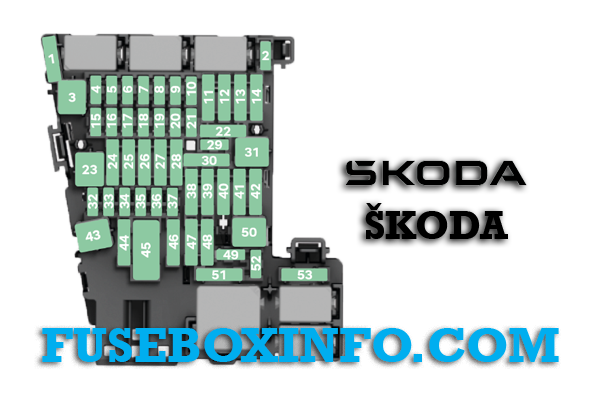

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | SCR (AdBlue®) |
| 2 | Steering wheel heating |
| 5 | Data bus |
| 6 | Alarm system sensor |
| 7 | Front/rear air conditioning, independent heating receiver, rear window heating, automatic gearbox |
| 8 | Light switch, rain sensor, parking brake, interior lighting, headlights |
| 9 | Control lever under the steering wheel |
| 10 | Infotainment screen |
| 11 | Vehicle exterior lighting |
| 12 | The Infotainment system |
| 13 | Seat belt tensioners – left side |
| 14 | Air conditioning fan |
| 15 | Electric steering wheel lock |
| 16 | USB sockets, diagnostic outlet, Phone box |
| 17 | Instrument cluster, emergency call |
| 18 | Rear view camera, area view system (Area View) |
| 19 | KESSY (keyless locking and starting system) |
| 20 | SCR (AdBlue®), braking system |
| 21 | All-wheel drive |
| 22 | Towing bracket |
| 23 | Panoramic tilting/sliding sunroof |
| 24 | Vehicle exterior lighting |
| 25 | Central locking – left front and rear doors, window controls – left side, left exterior mirror – heating, tilting, glass adjustment) |
| 26 | Front seat heating |
| 27 | Interior background illumination and lighting |
| 28 | Towing bracket |
| 29 | USB charging – at the rear and at the inside rear–view mirror |
| 31 | Opening the boot lid |
| 32 | Parking aid, Park Assist, lane change assistant Side Assist |
| 33 | Airbag |
| 34 | Air conditioning, reversing light switch, auto-dimming interior rear-view mirror, seat heating, parking brake, light switch, button bar |
| 35 | Diagnostic socket, front camera, vehicle distance monitor (e.g. ACC, Front Assist) |
| 38 | Towing bracket |
| 39 | Central locking – right front and rear doors, window controls – right side, right exterior mirror –heating, tilting, glass position adjustment |
| 40 | 12V sockets |
| 41 | Seat belt tensioners – right side |
| 42 | Locking (boot lid, tailgate, fuel filler cap), headlight washers, windscreen and rear window washers |
| 43 | Music amplifier |
| 44 | Towing bracket |
| 45 | Driver's seat electric control |
| 46 | 230-volt power socket |
| 47 | Rear wiper |
| 49 | Engine starting, clutch switch |
| 51 | Rear seat heating |
| 52 | Suspension adjustment (adaptive chassis) |
| 53 | Rear window heating |

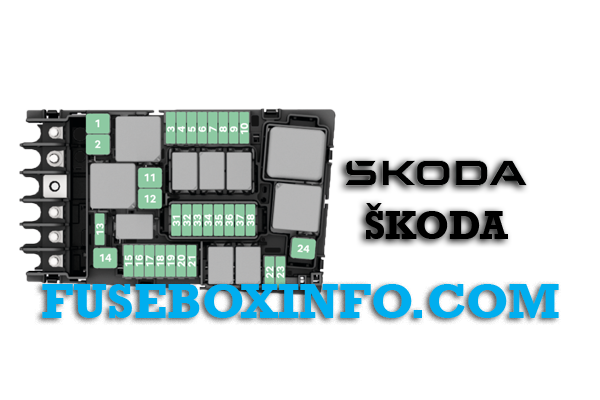

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | ESC assist system, parking brake |
| 2 | ESC assist system |
| 3 | Engine control system |
| 4 | Engine components |
| 6 | Brake sensor |
| 7 | Engine components |
| 8 | Lambda probe, NOx sensor |
| 9 | Engine components |
| 10 | Fuel pump |
| 11 | Electric auxiliary heater |
| 12 | Electric auxiliary heater |
| 13 | Automatic transmission oil pump |
| 14 | Windscreen heating |
| 15 | Horn |
| 16 | Ignition, fuel pump, air conditioning system |
| 17 | ESC assist system, engine control unit, main relay coil |
| 18 | Data bus, 12 volt battery status monitoring |
| 19 | Front wipers |
| 20 | Alarm |
| 21 | Automatic gearbox |
| 22 | Engine control system |
| 23 | Starter |
| 24 | Electric auxiliary heater |
| 36 | Front left headlight |
| 37 | Independent heater |
| 38 | Front right headlight |
