Škoda Kamiq 2025 Fuse Box Info

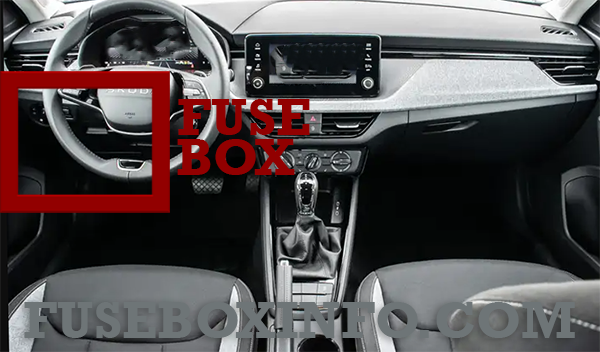

Passenger compartment fuse box location:
The fuse box is located behind the storage compartment on the driver’s side (left-hand drive). The fuse box is located behind the glove compartment on the passenger’s side. (right-hand drive).

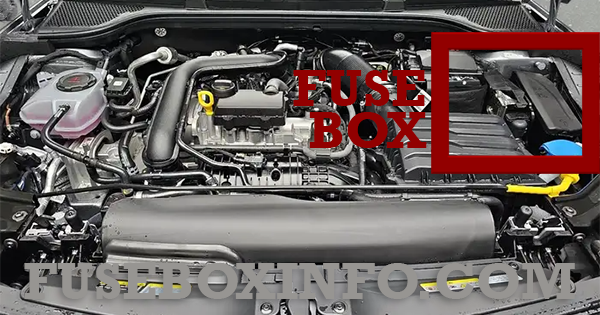

Engine compartment fuse box location:
Fuse Box Diagram | Layout

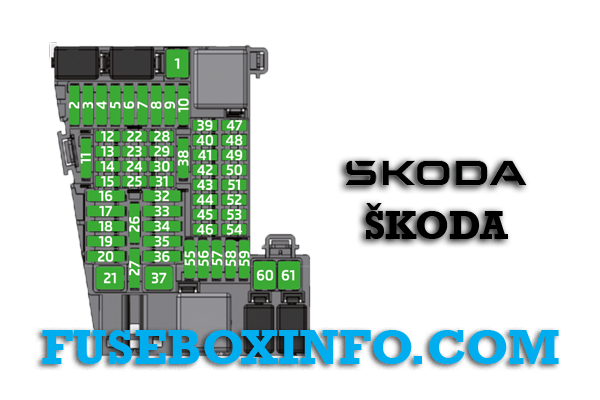

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Towing bracket |
| 2 | LED headlight – left-hand side |
| 3 | Music amplifier |
| 4 | Headlight washers |
| 5 | Sunroof |
| 6 | Central locking, windscreen washer, rear wiper |
| 7 | Rear seat heating |
| 8 | Climatronic, manual air conditioning |
| 9 | LED headlight – right-hand side |
| 10 | Towing bracket |
| 11 | Electrically operated boot lid |
| 12 | Steering wheel heating |
| 13 | Light switch, diagnosis connection, rain sensor, control lever under the steering wheel, windscreen heater |
| 14 | Windscreen washer system |
| 15 | Instrument cluster, emergency call |
| 16 | Lights - right side |
| 17 | Electric window control – right-hand side |
| 18 | Windscreen wipers |
| 19 | The Infotainment system |
| 20 | Rear window heating |
| 22 | USB charging |
| 23 | Rear view camera |
| 24 | GSM antenna, USB port, the Infotainment system display |
| 25 | Control lever under the steering wheel |
| 26 | Data bus |
| 27 | Suspension adjustment (adaptive chassis) |
| 28 | Alarm system sensor |
| 29 | Alarm siren |
| 30 | Ignition (switch box) |
| 31 | Air conditioning |
| 32 | Passenger's seat belt retractor |
| 33 | Electric window control – left-hand side |
| 34 | Driver's seat belt retractor |
| 35 | Lights - left side |
| 36 | Horn |
| 37 | Front seat heating |
| 38 | Interior lighting, button lighting, headlight washers, backlighting, manual air conditioning |
| 39 | Assist systems |
| 40 | Light switch, headlights, headlight levelling, diagnostic connector, reversing switch, control levers under the steering wheel |
| 41 | Interior mirror dimming, exterior mirror adjustment, air conditioning |
| 42 | Clutch pedal switch, starting |
| 43 | Rear window wiper |
| 44 | Airbag system, airbag control lamp |
| 45 | Windscreen wipers |
| 46 | Rear seat heating |
| 48 | Electric steering column lock, KESSY (keyless lock and start system) |
| 50 | USB rear-view mirror socket |
| 52 | Cigarette lighter / 12V socket at front |
| 53 | Ignition key trigger lock, automatic transmission |
| 54 | 12V socket in the boot |
| 59 | Exterior mirror heating |
| 60 | Towing bracket |
| 61 | Towing bracket |

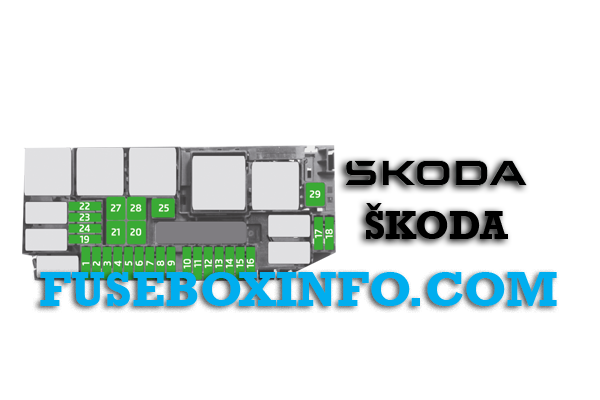

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Engine control unit |
| 2 | Exhaust flap, water pump, engine components |
| 3 | Lambda probes |
| 4 | Fuel pump |
| 5 | Radiator fan, fill pressure regulator, oil temperature and quantity sensor, engine components |
| 6 | Crankcase breather, engine components |
| 7 | Brake system (vacuum pump) |
| 8 | Fuel pump, engine components |
| 9 | Brake light switch |
| 10 | Battery data module |
| 12 | Air Conditioning |
| 14 | ESC, engine control system, engine components |
| 15 | Automatic gearbox |
| 17 | Engine control system |
| 18 | Starter |
| 20 | ESC |
| 21 | ESC |
| 25 | Radiator fan |
| 27 | Radiator fan |
| 29 | Windscreen heating |
