Škoda Kamiq 2023 Fuse Box Info

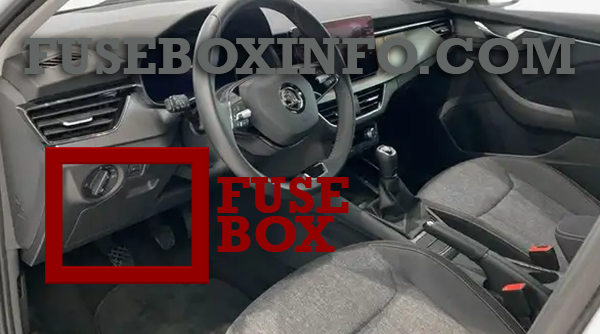

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).

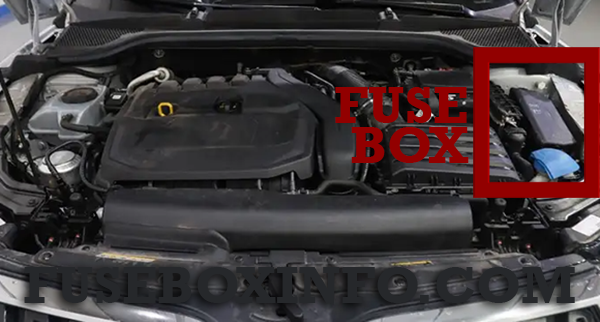

Engine compartment fuse box location:
Fuse Box Diagram | Layout

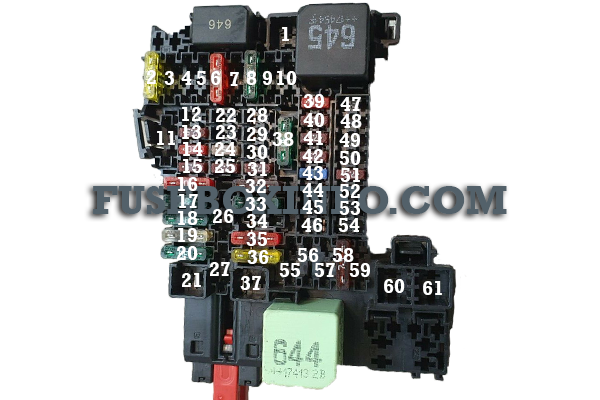

Passenger compartment fuse box:
Fuse/Relay N° | Functions |
1 | Towing device |
2 | LED headlights - left side |
3 | Music amplifier |
4 | Headlight washers |
5 | Sliding/tilting roof |
6 | Central locking, windscreen washer, rear window wiper |
7 | Seat heating - rear |
8 | Climatronic, manual air conditioning, heater |
9 | LED headlights - right side |
10 | Towing device |
11 | Electrically operated boot lid |
12 | Heated steering wheel |
13 | Light switch, diagnosis connection, rain sensor, control lever under the steering wheel, front windscreen heating |
14 | Windscreen washer system |
15 | Instrument cluster, emergency call |
16 | Light - right side |
17 | Electric windows - right side |
18 | Windscreen wiper |
19 | Infotainment |
20 | Heated rear window |
21 | Not used |
22 | Not used |
23 | Rear view camera |
24 | Phonebox, GSM antenna, USB connection, Infotainment screen |
25 | Control lever under the steering wheel |
26 | Databus |
27 | Shock absorber adjustment (adaptive suspension) |
28 | Alarm system sensor |
29 | Alarm system horn |
30 | Ignition (ignition lock) |
31 | Air conditioning, heating |
32 | Passenger belt tensioners |
33 | Electric windows - left side |
34 | Driver belt tensioners |
35 | Light - left side |
36 | Horn |
37 | Heating of the front seats |
38 | Interior lighting, button lighting, headlight cleaning system, ambient lighting, manual air conditioning, heating |
39 | Assist systems |
40 | Light switch, headlights, headlight levelling, diagnostic connection, reversing light switch, control lever under the steering wheel |
41 | Interior mirror dimming, exterior mirror adjustment, air conditioning, CNG relay |
42 | Clutch pedal switch, engine start |
43 | Rear window wiper |
44 | Airbag system, airbag control lamp |
45 | Windscreen wiper |
46 | Seat heating - rear |
47 | Not used |
48 | Electric steering column lock, Kessy (keyless lock and start system) |
49 | CNG |
50 | USB rear, USB on interior rearview mirror |
51 | Not used |
52 | Cigarette lighter / 12 volt socket in front |
53 | Ignition key trigger lock, automatic transmission |
54 | 12 volt socket in the luggage compartment |
55 | Not used |
56 | Manual air conditioning, heating |
57 | Not used |
58 | Windscreen washer system |
59 | Wing mirrors heating, washer nozzles heating |
60 | Towing device |
61 | Towing device |

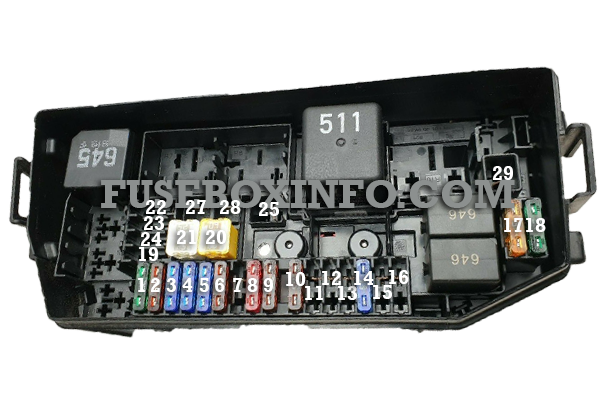

Engine compartment fuse box:
Fuse/Relay N° | Functions |
1 | Engine control unit |
2 | Exhaust flap, water pump, radiator louvre, engine components |
3 | Lambda probes |
4 | Fuel pump |
5 | Radiator fan, fill pressure regulator, oil temperature and quantity sensor, engine components |
6 | Crankcase breather, engine components |
7 | Brake system (vacuum pump) |
8 | Fuel pump, engine components |
9 | Brake light switch |
10 | Data bus, BCM unit, vehicle battery status monitoring |
11 | Not used |
12 | Air Conditioning |
13 | Not used |
14 | ESC, engine control system, engine components |
15 | Automatic gearbox |
16 | Not used |
17 | Engine control system |
18 | Starter |
19 | Not used |
20 | ESC |
21 | ESC |
22 | Not used |
23 | Not used |
24 | Not used |
25 | Radiator fan |
27 | Radiator fan |
28 | Not used |
29 | Windscreen heating |
