Škoda Octavia 2024 Fuse Box Info

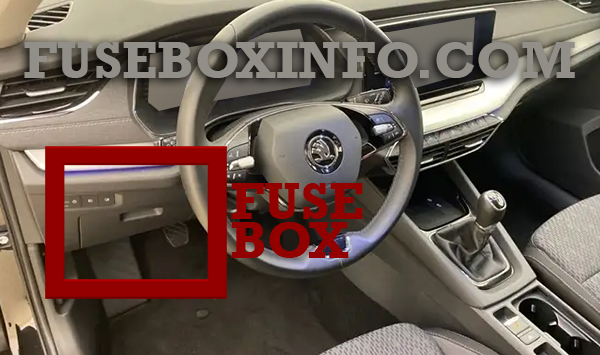

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the storage compartment on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).

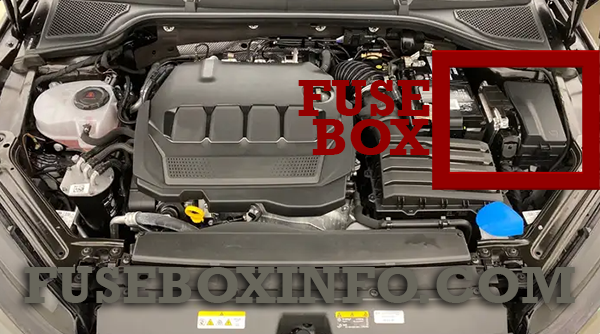

Engine compartment fuse box location:
Fuse Box Diagram | Layout

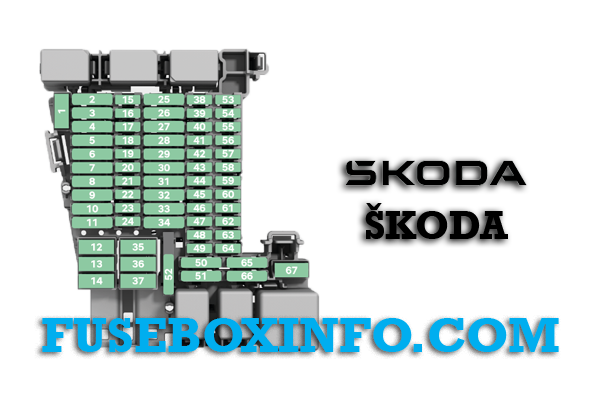

Passenger compartment fuse box::
| Fuse/Relay N° | Functions |
| 3 | Towing bracket |
| 4 | SCR (AdBlue®) |
| 5 | Selector (automatic gearbox) |
| 6 | Interior lighting |
| 7 | Front seat heating |
| 8 | Sliding/tilting roof |
| 9 | Central locking + window controls (left-hand side), left exterior mirror (heating, tilting, glass position adjustment) |
| 11 | Towing bracket |
| 12 | Vehicle exterior lighting |
| 13 | Central locking (rear doors and boot lid, fuel filler flap), windscreen washers, headlight washers |
| 14 | Music amplifier |
| 16 | Airbags |
| 18 | Steering wheel lock, KESSY (keyless locking) |
| 19 | Instrument cluster, emergency call, online services |
| 20 | Phone box, USB ports at the front, USB ports at the back |
| 21 | Rear view camera, area view system (Top View), parking, communication unit Car2X, contactless operation of the boot power lid, lane keeping assistant (Side Assist) |
| 22 | Front seat ventilation |
| 24 | All-wheel drive |
| 25 | Belt tensioner - front left |
| 26 | Central locking + window controls (right-hand side of the vehicle), right-hand exterior mirror ( heating, folding, glass position adjustment) |
| 27 | Belt tensioner - front right |
| 29 | Towing bracket |
| 30 | The Infotainment system |
| 31 | Towing bracket |
| 32 | Rear seat heating |
| 35 | Vehicle exterior lighting |
| 36 | Air conditioning |
| 37 | Electrically operated boot lid |
| 39 | Steering wheel heating |
| 40 | Alarm |
| 41 | Data bus |
| 42 | Automatic gearbox, gear shift indicator |
| 43 | Air conditioning at the front, air conditioning at the rear, independent heating, rear window heating |
| 44 | Front interior lighting, diagnostic socket, light and rain sensor, automatic headlight range control, parking brake, alarm, light switch, centre console buttons, microphone, tilting/sliding roof control |
| 45 | Electronics on steering column, control levers under steering wheel |
| 46 | The Infotainment system, Head-up display |
| 47 | Adaptive Chassis Control (DCC) |
| 52 | 12-volt socket in the boot |
| 58 | Parking, front radar sensor, front camera for assist systems |
| 59 | Parking brake, air conditioning, reversing sensor, interior rear-view mirror |
| 60 | Diagnostic socket |
| 61 | Clutch switch, starting |
| 62 | USB at the interior rear-view mirror |
| 66 | Rear wiper |
| 67 | Rear window heating |

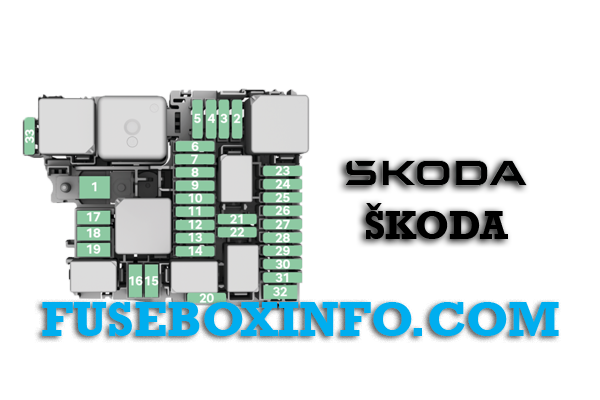

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 2 | ESC assist system, engine control system, engine components, starter-generator (mHEV) |
| 3 | Ignition |
| 4 | Front left headlight |
| 5 | Front right headlight |
| 7 | Automatic gearbox |
| 9 | Horn |
| 10 | Front wipers |
| 12 | Automatic gearbox |
| 14 | Independent auxiliary heater |
| 17 | Heating |
| 18 | Heating |
| 20 | VAQ differential |
| 21 | Engine control system |
| 22 | Starter |
| 23 | Engine control system |
| 24 | Engine components |
| 25 | Engine components |
| 26 | Engine components |
| 27 | Engine components |
| 28 | Engine components |
| 29 | Fuel pump |
| 32 | Windscreen heating |
| 33 | Heating |
