Škoda Rapid 2020 Fuse Box Info
Fuse box location:
The fuse box is located on the bottom of the dash panel behind a cover.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Light (left side) |
| 2 | Central locking, windscreen and rear window washer system (vehicle with KESSY / vehicle with heated windscreen) |
| 3 | Ignition |
| 4 | Light (right side) |
| 5 | Power windows - driver |
| 6 | BCM controller |
| 7 | Horn |
| 8 | Databus |
| 9 | KESSY, control lever under steering wheel, ignition lock |
| 10 | Power windows - rear left |
| 11 | Heated steering wheel |
| 12 | USB front |
| 13 | Unlocking the boot lid |
| 14 | Operating lever under the steering wheel, light switch, ignition key removal lock (vehicle with automatic transmission), headlight flasher, rain sensor, light sensor, reversing camera |
| 15 | Air conditioning, automatic transmission, windscreen heating, diagnostic connection |
| 16 | Instrument cluster, emergency call |
| 17 | Alarm system, horn |
| 18 | Seat heating - rear |
| 19 | LED headlights - left side |
| 20 | Not used |
| 21 | Not used |
| 22 | Windscreen and rear window washer system (vehicle without KESSY / vehicle without heated windscreen) |
| 23 | Heating of the front seats |
| 24 | Air conditioning, heating |
| 25 | Not used |
| 26 | Heating of the front seats |
| 27 | Rear window wiper |
| 28 | Not used |
| 29 | Airbags |
| 30 | Switches for reversing lights, electric windows, adjustment of exterior mirror surfaces, switches for hazard warning lights, air conditioning, parking aid |
| 31 | Fuel pump, radiator fan, light switch, operating lever under the steering wheel |
| 32 | Diagnostic connection, headlamp levelling, operating lever under the steering wheel |
| 33 | Clutch pedal switch, engine start |
| 34 | Heating of windscreen washer nozzles |
| 35 | Interval switch for the wiper-washing system |
| 36 | Rear USB |
| 37 | Radar |
| 38 | Not used |
| 39 | Not used |
| 40 | Databus |
| 41 | Heated rear window |
| 42 | Power windows - front passenger |
| 43 | LED headlights - right side |
| 44 | Cigarette lighter, 12-volt power socket |
| 45 | Power windows - rear right |
| 46 | Front and rear window washer, operating lever under the steering wheel |
| 47 | Not used |
| 48 | Not used |
| 49 | Fuel pump |
| 50 | Infotainment |
| 51 | Exterior mirror heating |
| 52 | KESSY (keyless locking and starting system) |
| 53 | Steering column lock (vehicle with KESSY) |
| 54 | ESC |
| 55 | Not used |
| 56 | Databus |
| 57 | Databus |
| 58 | Seat heating - rear |
| 59 | Not used |

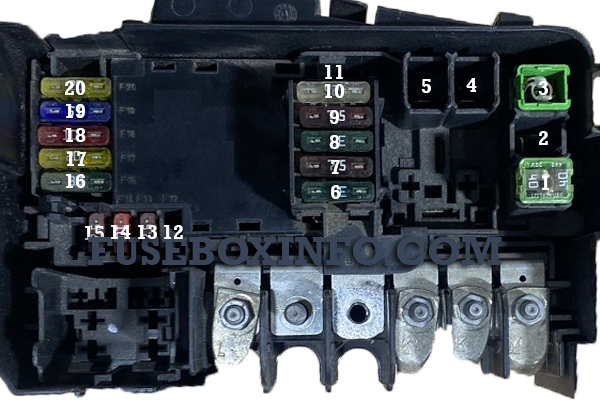

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Radiator fan |
| 2 | Not used |
| 3 | Assistance system ESC |
| 4 | Heated windscreen |
| 5 | Heated windscreen |
| 6 | Automatic gearbox |
| 7 | Engine control system |
| 8 | Windscreen wipers |
| 9 | 12 volt battery data module |
| 10 | Assistance system ESC |
| 11 | Not used |
| 12 | Fuel injection |
| 13 | Brake pedal switch |
| 14 | Fuel pump, engine components |
| 15 | Engine control system |
| 16 | Starter |
| 17 | Engine control system |
| 18 | Engine components |
| 19 | Lambda probe |
| 20 | Engine components |
