Škoda Superb iV 2022 Fuse Box Info

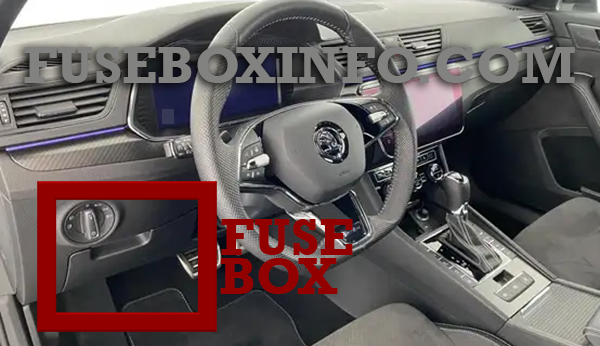

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).
Engine compartment fuse box location:
Fuse Box Diagram | Layout

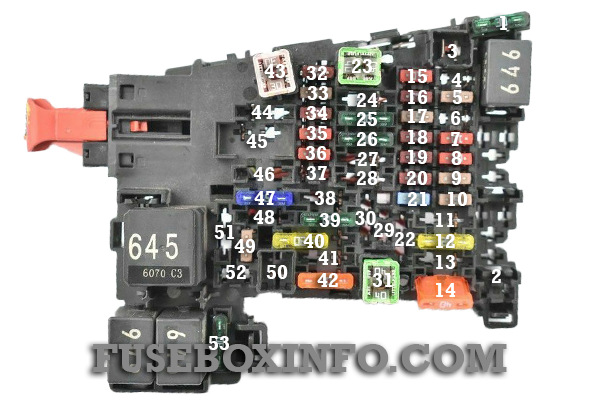

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Not used |
| 2 | Heated steering wheel |
| 3 | Not used |
| 4 | Alarm system |
| 5 | Databus |
| 6 | Automatic gearbox |
| 7 | Air conditioning, Heating, Auxiliary heating receiver, Front and rear window heating, clock, tyre control display |
| 8 | Light switch, rain sensor, diagnostic connection, parking brake, ambient lighting, sensor of the alarm system, headlight |
| 9 | USB connections |
| 10 | Infotainment screen |
| 11 | Light - left side |
| 12 | Infotainment |
| 13 | Left side seat belt pretensioner |
| 14 | Air conditioning, heating |
| 15 | Electric steering lock |
| 16 | Phonebox |
| 17 | Instrument cluster, emergency call |
| 18 | Rear view camera, environment view (Area View) |
| 19 | KESSY (keyless locking and starting system) |
| 20 | Not used |
| 21 | Not used |
| 22 | Tow hitch |
| 23 | Panorama sliding/tilting roof |
| 24 | Light - right side |
| 25 | Central locking + power window (left front and rear door), exterior mirrors left (heating, fold-in function, setting the mirror surface) |
| 26 | Heating of the front seats |
| 27 | Interior lighting |
| 28 | Tow hitch |
| 29 | Control lever under the steering wheel |
| 30 |
High-voltage battery control system - safe shutdown of the high-voltage system The fuse can only be changed by a specialist company! |
| 31 | Opening the boot lid |
| 32 | Parking aid (Park Assist) |
| 33 | Airbags, switch for hazard warning lights |
| 34 | ESC, ASR, tyre pressure monitor, air conditioning, reversing light switch, mirror with automatic dimming, heated rear seats, parking brake, light switch |
| 35 | Diagnostic connection, camera, radar sensor, "blind spot" detection |
| 36 | USB – rear charging function |
| 37 | USB charging function on interior mirror |
| 38 | Tow hitch |
| 39 | Central locking + power window (right front and rear door), exterior mirrors right (heating, fold-in function, setting the mirror surface) |
| 40 | 12-Volt power socket |
| 41 | Right side seat belt pretensioner |
| 42 | Boot lid, headlight washers, windscreen washer system |
| 43 | Music amplifier |
| 44 | Tow hitch |
| 45 | Electrically adjustable seats |
| 46 | 230-Volt socket |
| 47 | Rear window wiper |
| 48 | Engine sound generator |
| 49 | Clutch pedal switch, electric drive and high voltage battery electronics |
| 50 | Not used |
| 51 | Seat heating - rear |
| 52 | Shock absorber adjustment (adaptive suspension) |
| 53 | Heated rear window |
| A | Front seat ventilation - left-hand drive |
| B | Front seat ventilation - right-hand drive |

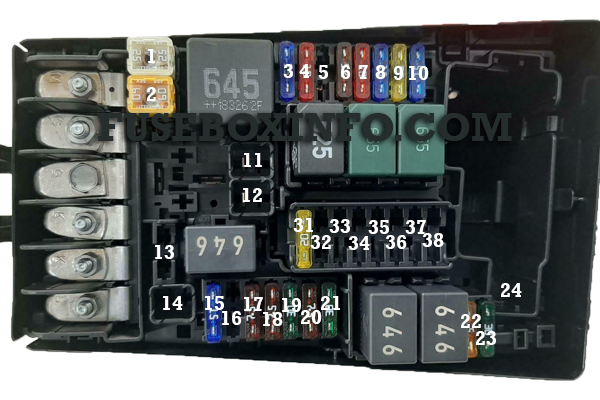

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | ESC assist system, parking brake |
| 2 | ESC assist system |
| 3 | Engine control system |
| 4 | Radiator fan, oil level and oil temperature sensor, engine components |
| 5 | Engine components |
| 6 | Cooling the high-voltage battery, engine components |
| 7 | Charge air cooling pump, engine components |
| 8 | Lambda probe |
| 9 | Ignition, engine components |
| 10 | Fuel pump |
| 11 | Electric auxiliary heater |
| 12 | Electric auxiliary heater |
| 13 | Not used |
| 14 | Heated windscreen |
| 15 | Horn |
| 16 | Electric drive electronics, charging the high-voltage battery |
| 17 | ESC assist system, engine control unit, main relay coil |
| 18 | Not used |
| 19 | Windscreen wipers |
| 20 | Brake servo |
| 21 | Not used |
| 22 | Not used |
| 23 | Not used |
| 24 | Electric auxiliary heater |
| 31 | Not used |
| 32 | Not used |
| 33 | Not used |
| 34 | Not used |
| 35 | Air Conditioning |
| 36 | Left headlight |
| 37 | Auxiliary heating |
| 38 | Right headlight |
