Pontiac Firebird 1997 Fuse Box

Pontiac Firebird 1997 Fuse Box Info

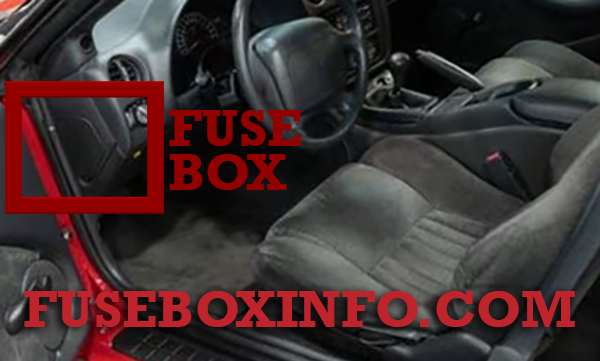

Passenger compartment fuse box location:

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side.

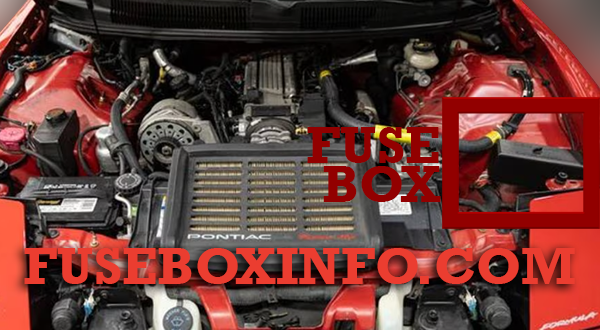

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
1. STOP/HAZARD Hazard Flasher, Brake Switch Assembly
2. TURN B-U Traction Control/2nd Gear Start Switch, Back-up Lamp Switch,
Turn Flasher, Daytime Running Lamps (DRL) Module
3. PCM BATT Powertrain Control Module (PCM), Fuel Pump Relay
4. RADIO ACCY Delco Audyssey Radio Amplifier, Power Antenna, Remote CD Player (trunk)
5. TAIL LTS Daytime Running Lamps (DRL) Module, Headlamp Switch
6. HVAC Selector Switch, Rear Defogger Switch/Timer
7. PWR ACCY Park Lamp Relay, Hatch Release Relay, Power Mirror Switch, Radio,
Shock Sensor, Instrument Cluster
8. COURTESY Body Control Module (BCM)
9. GAGES Body Control Module (BCM), Brake Switch Assembly (BTSI),
Instrument Cluster, Daytime Running Lamps (DRL) Module
10. AIR BAG Diagnostic Energy Reserve Module (DERM), Dual Pole Arming Sensor
11. CIGAR/ACCY Cigarette Lighter, Data Link Connector (DLC), Auxiliary Accessory Wire
12. DEFOG/SEATS Rear Defogger Switch/Timer, Rear Defogger Timer/Relay, Power Seats
13. PCM IGN Powertrain Control Module (PCM), EVAP Canister Purge Vacuum Switch, EVAP Canister Purge Valve, Transmission
14. WIPER/WASH Wiper Motor Assembly, Wiper/Washer Switch
15. WINDOWS Power Windows Switch (RH, LH), Express-Down Module, Coolant
Level Latching Module, Convertible Top Switch
16. I/P DIMMER Door Illumination Lamp (RH, LH), Headlamp Switch, Fog Lamp
Switch, Instrument Cluster, HVAC Control Assembly, PRNDL Illumination Lamp, Ashtray Lamp, Radio, Steering Wheel Controls-Radio, Rear Window Defogger Switch/Timer, Performance/Traction
Control Switch, Traction Control Switch (TCS) and 2nd Gear Start Switch
17. RADIO Body Control Module (BCM), Radio, Amplifier, Steering Wheel
Controls-Radio



Engine compartment fuse box:

Fuse/Relay N° Functions
1. ABS IGN Anti-Lock Brake System
2. ACTUATORS Daytime Running Lamp Module, Headlamp Switch, Cooling Fan
Relay, Exhaust, Gas Recirculation, EVAP Canister Purge Solenoid
3. R HDLP DR Headlamp Door Module
4. L HDLP DR Headlamp Door Module
5. ABS VLV Brake Pressure Valve
6. ABS BAT Electronic Brake Control Module
7. AIR PUMP/FAN Air Pump (V8) Relay, Pump, Bleed Valve and Cooling Fan
8. HORN  Horn Relay
9. INJECTOR  Fuel Injectors
10. ENG SEN Mass Airflow, Heated Oxygen Sensor, Reverse Lockout Solenoid, Skip Shift Solenoid, Automatic Transmission, Brake Switch
11. IGNITION V6 VIN K: Electronic Ignition Module; V8 VIN P: Ignition Coil Module, Crankshaft Position Sensor
12. A/C-CRUISE Air Conditioning Compressor Relay, Cruise Control Switches and Module
B Air Conditioning Compressor
C Anti-Lock Brake System/Traction Control System (TCS)
D Cooling Fan Number 1
E Air Pump
F Cooling Fan Number 2
G Not Used
H Fog Lamps
J Cooling Fan Number 3
