Pontiac Aztek 2005 Fuse Box Info

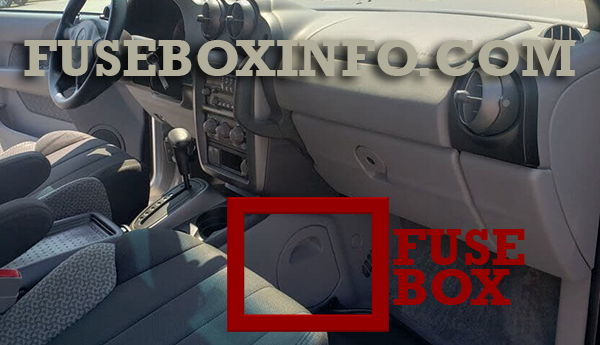

Passenger compartment fuse box location:
The instrument panel fuse box is located on the passenger’s side of the center console, behind the cover.

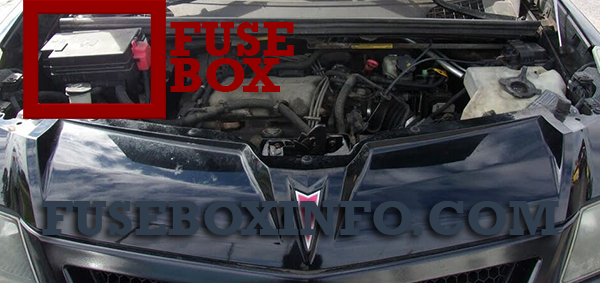

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| Fuses | |
| 1 | Empty |
| 2 | Steering Wheel Radio Controls |
| 3 | Power Door Locks |
| 4 | Empty |
| 5 | Empty |
| 6 | Empty |
| 7 | Empty |
| 8 | Empty |
| 9 | Empty |
| 10 | Turn Signal and Hazard Lamp Flashers |
| 11 | Power Seats |
| 12 | Electronic Level Control (ELC) Compressor |
| 13 | Liftglass and Endgate |
| 14 | Rear Auxiliary Power Outlet |
| 15 | Electronic Level Control (ELC) Compressor Relay and Height Sensor |
| 16 | Heated Mirrors |
| 17 | Power Mirrors |
| 18 | Ignition 1 Module |
| 19 | Turn Signal Switch |
| 21 | Rear Defogger |
| 22 | Air Bag Module |
| 24 | TCC Switch |
| 25 | Climate Control Blower Motor |
| 26 | Climate Control Mode and Temperature Motors and Head-Up Display |
| 28 | Empty |
| 29 | Windshield Wipers and Washer |
| 30 | Instrument Panel Cluster, Body Control Module (BCM), PASS-Key® III |
| 31 | Park Lock Ignition Key Solenoid |
| 32 | Empty |
| 34 | Power Sunroof |
| 35 | Power Windows |
| 36 | Map Lamps, Courtesy Lamps and Instrument Panel Lights |
| 37 | Radio |
| 38 | UQ3 Radio Amplifier |
| 39 | Head-Up Display |
| 40 | Hazard Flashers |
| 41 | Instrument Panel Cluster, Climate Control, Security LED and Remote Keyless Entry Module |
| 42 | PASS-Key III |
| 43 | Accessory Diode |
| 44 | Body Control Module (BCM) |
| 46 | Advanced Occupant System Module |
| Relays | |
| 20 | Rear Defogger Relay |
| 23 | Ignition Relay |
| 27 | Accessory Relay |
| 33 | Retained Accessory Power Relay |
| 45 | Back-Up Lamp |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Fuel Pump |
| 2 | Air Conditioning Compressor Clutch |
| 3 | Horn |
| 4 | Engine Controls - Emissions and Sensors |
| 5 | Power Control Module (PCM) - Battery Power |
| 6 | Anti-Lock Brakes (ABS) Control Module |
| 7 | Transaxle Solenoids |
| 9 | Anti-lock Brake System (ABS) Solenoid Valves |
| 10 | Oxygen Sensors - Emissions Control |
| 11 | Injectors |
| 13 | Engine Controls |
| 14 | Daytime Running Lamps (DRL) |
| 15 | Passenger’s Low-Beam Headlamp |
| 17 | Driver’s Low-Beam Headlamp |
| 18 | Driver’s High-Beam Headlamp |
| 19 | Ignition Switch Battery Power |
| 20 | Parking Lamps |
| 23 | Passenger’s High-Beam Headlamp |
| 24 | Vent Solenoid |
| 25 | DVD |
| 26 | Front Fog Lamps |
| 27 | Ignition Relay, Neutral Start Switch, Powertrain Control Module (PCM) |
| 28 | Body Control Module - Battery Power |
| 29 | S Band, Remote Digital Radio Receiver |
| 30 | All-Wheel Drive (AWD) Module |
| 31 | Cruise Control |
| 32 | Front Power Outlets/Lights, OnStar |
| 33 | Automatic Transaxle Shift Lock Control System |
| 34 | Starter Solenoid Battery Fuse |
| 35 | Anti-lock Brake System (ABS) Motor |
| 38 | Engine Cooling Fan 2 |
| 39 | Engine Cooling Fan 1 |
| 40 | Main Battery Fuse for Retained Accessory Power Relay and Accessory Relay |
| 41 | Main Battery Fuse for Heated Seats, Air |
| 44 | Main Battery Fuse for Power Outlets, Level Control, Power Seats and Mirrors and Body Computer |
| 46 | Main Battery Fuse for Climate Control Blower and Ignition 3 Relay |
| 47 | Main Battery Fuse for Ignition Switch, Radio, Heads-Up Display, Remote Keyless Entry (RKE), Instrument Cluster, Air Conditioning and Body Computer |
| 70 | Diode for Air Conditioning Compressor Clutch |
| Relays | |
| 49 | Horn |
| 50 | Fuel Pump |
| 51 | Air Conditioning Clutch |
| 52 | Daytime Running Lamps (DRL) |
| 53 | Low-Beam Headlamps |
| 54 | Parking Lamps |
| 55 | High-Beam Headlamps |
| 56 | Fog Lamps |
| 57 | Starter Relay |
| 58 | Cooling Fan |
| 59 | Ignition 1 Relay |
| 60 | Cooling Fan 2 |
| 61 | Cooling Fan 1 |
