Pontiac Grand Prix 1995 Fuse Box Info

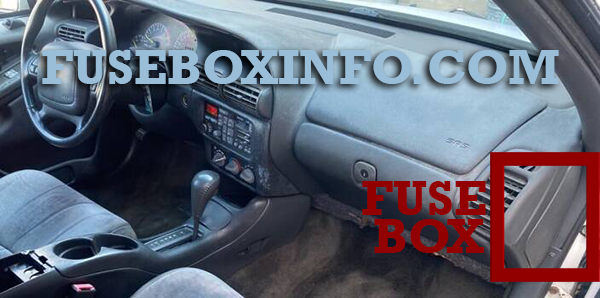

Passenger compartment fuse box location:
The instrument panel fuse box is located on the passenger side edge of the instrument panel.

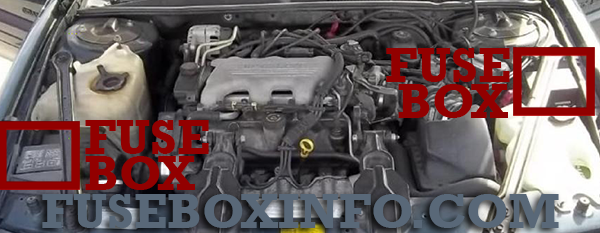

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay | Functions |
| Fuses | |
| 1 | CIGAR LIGHTER -- Instrument Panel Cigar Lighter |
| 5 | HAZARD FLASHER |
| 6 | POWER ACCESSORY #2 -- Sunroof Control Unit |
| 7 | LOCK CONTROL -- Door Lock Relay |
| 10 | I/P ELECTRONICS BATTERY FEED -- Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio, Radio Amplifier, Trip Computer |
| 11 | STARTER MOTOR |
| 12 | ANTI-THEFT -- Theft Deterrent Modul |
| 14 | HVAC BLOWER MOTOR -- Blower Motor Relay |
| 15 | HVAC #1-- Air Temperature Valve Motor, Trip Computer, Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switch |
| 16 | REAR DEFOG -- HVAC Control Assembly Rear Window Defogger Switch |
| 19 | POWER ACCESSORY #1 -- Antenna Relay, Power Mirror Switch, Door Lock Switches, Door Handle Switches |
| 21 | AIR BAG -- Sensing and Diagnostic Module (SDM) |
| 23 | STOPLAMPS -- TCC/Brake Switch |
| 24 | HVAC #2 -- HVAC Control Assembly, Solenoid Box |
| 28 | CTSY LAMPS -- Vanity Mirrors, I/P Courtesy Lamps, I/P Compartment Lamp, Trunk Courtesy Lamp, Header Courtesy and Reading Lamp, I/S Lighted Rearview Mirror, Dome and Reading Lamp, Quarter Courte Lamps |
| 29 | WIPER -- Wiper Switch |
| 30 | TURN SIGNAL -- Turn Signal Flasher |
| 32 | POWER LOCKS -- Door Lock Relay |
| 33 | ABS -- Electronic Brake Control Module (EBCM), ABS Relay |
| 37 | AUXILIARY POWER |
| 38 | RADIO -- Radio, Steering Wheel Radio Switches |
| 39 | I/P ELECTRONICS IGNITION FEED - Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module (SDM), TCC/Brake Switch, Instrument Cluster, Chime Module, Second Gear Start Switch, Head-Up Display (HUD) Switch, Daytime Running Lamps Module (with DRL) |
| Circuit Breaker | |
| C | Power Windows |
| D | Power Seats |
Engine compartment fuse box (Passenger side):
| Fuse/Relay | Functions |
| Fuses | |
| R/CMPT REL | Remote Trunk Release, Backup Lamps |
| ECM BAT | Powertrain Control Module (PCM), Fuel Pump Switch, Fuel Pump Relay, Fan Cont #1 Relay |
| TCC | Automatic Transaxle, Transaxle Range Switch (VIN M only) |
| ENG EMIS | Fan Cont #2 Relay, A/C CMPR Relay (VIN M only) |
| F/INJN | Fuel Injectors |
| ECM IGN | Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxygen Sensor, Vac. Can. Switch |
| ELEK IGN | Electronic Ignition (EI) Control Module |
| 10 | I/P Fuse Block |
| 11 | FAN CONT #1 Relay |
| 12 | Passenger Side Underhood Electrical Center and I/P Fuse Blocks: Fuses 5, 14, 23 and 32 |
| 13 | FAN CONT #2 Relay and I/P Fuse Block Fuse 16, Power Seat Circuit Breaker "D" |
| Relays | |
| 14 | FUEL PUMP |
| 15 | A/C CMPR |
| 16 | FAN CONT #2 -- Secondary Cooling Fan (Passenger Side) |
| 17 | FAN CONT #1-- Primary Cooling Fan (Driver Side) |
| 18 | Ignition Switch Relay |
Engine compartment fuse box (Driver side):
| Fuse/Relay | Functions |
| Fuses | |
| FOG LPS | Fog Lamps |
| PARK LPS | Headlamp Switch |
| HORN | Horn Relay, Underhood Lamp |
| VAR P/S | EVO |
| 10 | IGN SW2 -- I/P Fuse Block PWR WDO and Circuit Breaker "D"; Passenger Side Underhood Electrical Center: TCC and ENG EMIS Fuses |
| 11 | IGN SW1 -- I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses |
| 12 | HD LPS -- 30 Amp Circuit Breaker to Headlamp Switch |
| 13 | ABS -- ABS Relay |
| Relays | |
| 14 | ABS -- Anti-lock Brake Svstem |
| 15 | FOG LPS |
| 16 | HORN |
