Opel/Vauxhall Insignia 2019 Fuse Box Info
Fuse box location:
In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel. Open the compartment and push it to the left to unlock. In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox.

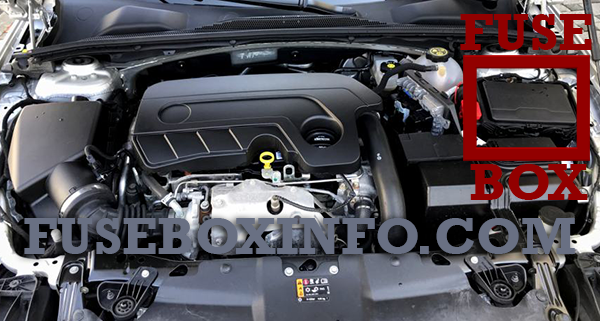

Engine compartment fusebox:
The fuse box is in the front left of the engine compartment.
Fuse Box Diagram | Layout
Instrument panel fuse box:
| Fuse N° | Functions |
| 1 | Left power window |
| 2 | Right power window |
| 3 | Body control module |
| 4 | Climate control fan |
| 5 | Body control module |
| 6 | Trailer provisions |
| 7 | Rear seat power folding |
| 8 | Body control module |
| 9 | Engine control module |
| 10 | Head-up display |
| 11 | NOx reduction/Pipe heater |
| 12 | NOx reduction/Soot sensor |
| 13 | AdBlue module |
| 14 | Heated steering wheel |
| 15 | Transmission control module |
| 16 | Amplifier |
| 17 | Alarm |
| 18 | Body control module |
| 19 | AdBlue module |
| 20 | Body control module |
| 21 | Body control module |
| 22 | Body control module |
| 23 | Electric steering wheel lock |
| 24 | Airbag |
| 25 | Diagnostic connector |
| 26 | Power outlet load compartment |
| 27 | EBCM valve |
| 28 | Police provision |
| 29 | - |
| 30 | - |
| 31 | Steering wheel controls |
| 32 | Ignition switch |
| 33 | Climate control |
| 34 | Central gateway module |
| 35 | AUX/USB connector |
| 36 | Wireless charger |
| 37 | Rear wiper |
| 38 | Emergency call |
| 39 | Display |
| 40 | Parking assist |
| 41 | Overhead console |
| 42 | Infotainment System |
Engine compartment fusebox:
| Fuse N° | Functions |
| 1 | - |
| 2 | - |
| 3 | ABS |
| 4 | - |
| 5 | - |
| 6 | Tailgate |
| 7 | Rear fog light / Front fog lights |
| 8 | Memory module |
| 9 | Heated windscreen |
| 10 | Seat lumbar |
| 11 | DC/DC battery |
| 12 | Heated rear window |
| 13 | Heated mirror |
| 14 | - |
| 15 | - |
| 16 | Front wiper |
| 17 | Power seat, passenger |
| 18 | Sunblind |
| 19 | Power seat, driver |
| 20 | - |
| 21 | Sunroof |
| 22 | Rear wiper/Airbag |
| 23 | Adaptive forward lighting |
| 24 | - |
| 25 | - |
| 26 | Transmission control module |
| 27 | Ignition/Instrument panel |
| 28 | - |
| 29 | Rear view camera/Air vent |
| 30 | Malfunction indicator light/ Trailer |
| 31 | - |
| 32 | Camera |
| 33 | Seat heat front |
| 34 | Seat heat rear |
| 35 | Damping/All-wheel drive |
| 36 | Fuel system |
| 37 | - |
| 38 | - |
| 39 | - |
| 40 | Steering wheel lock |
| 41 | - |
| 42 | - |
| 43 | Heated steering wheel |
| 44 | Headlight range adjustment |
| 45 | - |
| 46 | Engine control module |
| 47 | - |
| 48 | DC/DC converter/Air vent/E-Boost |
| 49 | Rear door control module |
| 50 | - |
| 51 | - |
| 52 | - |
| 53 | - |
| 54 | - |
| 55 | - |
| 56 | Starter |
| 57 | - |
| 58 | - |
| 59 | Left headlight (LED) |
| 60 | Cooling fan |
| 61 | - |
| 62 | - |
| 63 | - |
| 64 | - |
| 65 | Climate control |
| 66 | - |
| 67 | - |
| 68 | - |
| 69 | Right high beam (Halogen)/ Right headlight (LED) |
| 70 | Left high beam (Halogen) |
| 71 | - |
| 72 | Starter |
| 73 | - |
| 74 | Transmission control module |
| 75 | Engine control module |
| 76 | Exhaust reduction system |
| 77 | - |
| 78 | Horn |
| 79 | Washer system |
| 80 | - |
| 81 | Engine control module |
| 82 | - |
| 83 | Ignition coil |
| 84 | Ignition coil |
| 85 | Powertrain |
| 86 | - |
| 87 | Diesel fuel heating |
| 88 | Air shutter |
| 89 | - |
| 90 | - |
| 91 | - |
| 92 | After boil pump |
| 93 | Electronic key system |
| 94 | - |
| 95 | Coolant pump |
| 96 | Diesel fuel heating |
| 97 | - |
| 98 | - |
| 99 | Coolant pump |
