Opel Vivaro 2019 Fuse Box Info

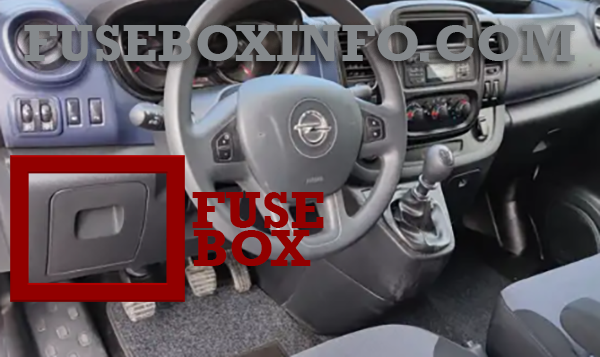

Passenger compartment fuse box location:
The fuse box is located on the left side of the instrument panel, behind a trim panel.

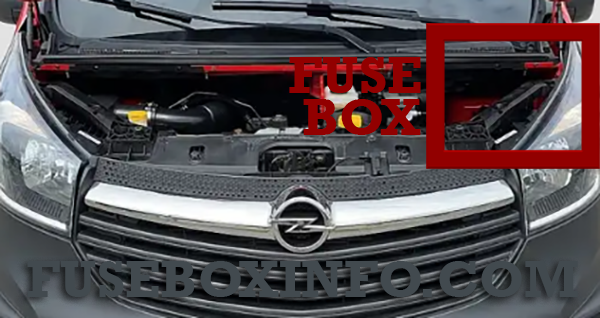

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Battery backup (with electronic key system) |
| 2 | Adaptations |
| 3 | Adaptations |
| 4 | Vehicle battery (with electronic key system) |
| 5 | Additional heating and ventilation, Air conditioning system |
| 6 | Supplementary heating and ventilation system |
| 7 | Electric exterior mirrors, Additional adaptations |
| 8 | Heated exterior mirrors |
| 9 | Radio, Multimedia, Electric exterior mirrors, Diagnostic socket |
| 10 | Multimedia, Trailer hitch |
| 11 | Courtesy lights, Battery discharge protection |
| 12 | Right-hand high beam, Left-hand low beam, Sidelights, Right-hand daytime running light |
| 13 | Hazard warning flashers, Turn lights |
| 14 | Central locking |
| 15 | Left-hand high beam, Right-hand low beam, Tail lights, Left-hand daytime running light |
| 16 | Front fog lights, Rear fog lights, Number plate lighting |
| 17 | Alarm, Horn, Lighting, Wiper |
| 18 | Instrument cluster |
| 19 | Heating and ventilation system |
| 20 | Rear window wiper, Windscreen washer pump, Horn |
| 21 | General battery |
| 22 | Reversing lights |
| 23 | Brake switch |
| 24 | Fuel injection, Starter |
| 25 | Airbag, Steering column lock |
| 26 | Passenger power window |
| 27 | Power steering |
| 28 | Brake lights |
| 29 | Battery backup (with electronic key system) |
| 30 | Service display |
| 31 | Cigarette lighter, Power outlet |
| 32 | Heating and ventilation system |
| 33 | Brake lights, ABS, Immobiliser |
| 34 | Interior lighting, Air conditioning |
| 35 | Starting with electronic key system |
| 36 | Rear window wiper |
| 37 | Warning chimes |
| 38 | Load compartment power outlet |
| 39 | Driver power window |
| 40 | Rear power outlet |
| 41 | Starting, Body control module |
| 42 | Heated seats |
| 43 | Tachograph |
| 44 | Windscreen wiper |
| 45 | Heating, Air conditioning |
