Opel/Vauxhall Adam 2016 Fuse Box Info
Fuse box location:

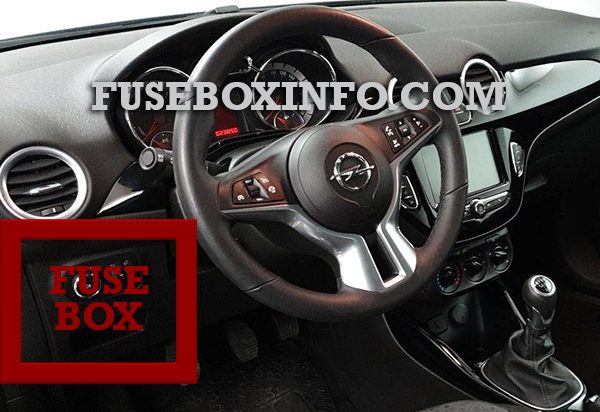

In left-hand drive vehicles, the fuse box is behind the light switch in the instrument panel. In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down.
Engine compartment fuse box:

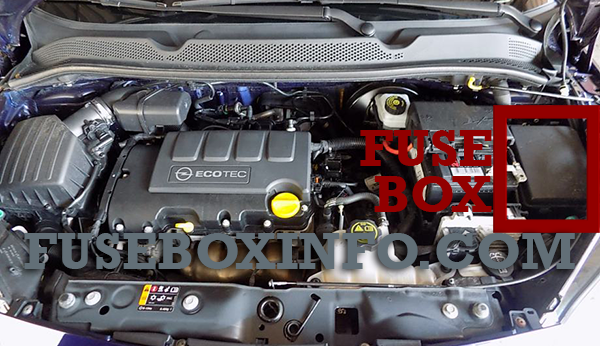

The fuse box is in the front left of the engine compartment.
Fuse Box Diagram | Layout

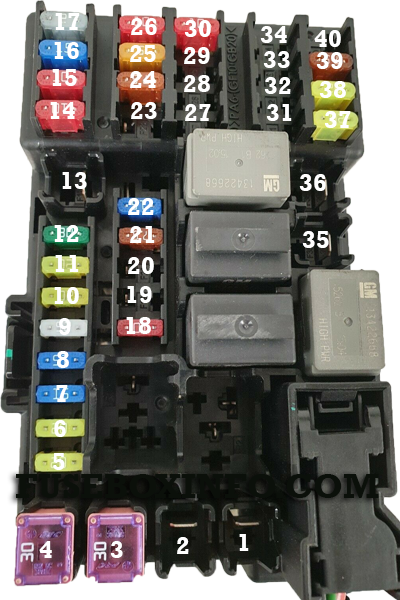

Instrument panel fuse box:
| Fuse N° | Functions |
| 1 | - |
| 2 | - |
| 3 | Power windows |
| 4 | Voltage transformer |
| 5 | Body control module 1 |
| 6 | Body control module 2 |
| 7 | Body control module 3 |
| 8 | Body control module 4 |
| 9 | Body control module 5 |
| 10 | Body control module 6 |
| 11 | Body control module 7 |
| 12 | Body control module 8 |
| 13 | - |
| 14 | Tailgate |
| 15 | Diagnostic connector |
| 16 | Data link connection |
| 17 | Ignition |
| 18 | Air conditioning system |
| 19 | Audio amplifier |
| 20 | Parking assist |
| 21 | Brake switch |
| 22 | Audio system |
| 23 | Display |
| 24 | - |
| 25 | Onstar |
| 26 | Instrument panel |
| 27 | Seat heating, driver |
| 28 | - |
| 29 | - |
| 30 | Instrument panel |
| 31 | Horn |
| 32 | Seat heating, passenger |
| 33 | Heated steering wheel |
| 34 | - |
| 35 | - |
| 36 | - |
| 37 | Rear wiper |
| 38 | Cigarette lighter |
| 39 | - |
| 40 | - |
Engine compartment fuse box:
| Fuse N° | Functions |
| 1 | - |
| 2 | Exterior mirror switch |
| 3 | Body control module |
| 4 | Foldable sunroof, Chassis control module |
| 5 | ABS |
| 6 | Daytime running light left |
| 7 | - |
| 8 | Body control module |
| 9 | Vehicle battery sensor |
| 10 | Headlamp levelling, TPMS, foldable sunroof |
| 11 | Rear wiper |
| 12 | Window defog |
| 13 | Daytime running light right |
| 14 | Mirror defog |
| 15 | - |
| 16 | Chassis control module, LPG system |
| 17 | Interior mirror |
| 18 | Engine control module |
| 19 | Fuel pump |
| 20 | - |
| 21 | Injection coil |
| 22 | - |
| 23 | Injection system |
| 24 | Washer system |
| 25 | Lighting system |
| 26 | Engine control module |
| 27 | - |
| 28 | Engine control module |
| 29 | Engine control module |
| 30 | - |
| 31 | Left headlamp |
| 32 | Right headlamp |
| 33 | Engine control module |
| 34 | Horn |
| 35 | Clutch |
| 36 | - |
| Fuse N° | Functions |
| 1 | ABS pump |
| 2 | Front wiper |
| 3 | Blower |
| 4 | Instrument panel |
| 5 | - |
| 6 | - |
| 7 | Electrical vacuum pump |
| 8 | Cooling fan low |
| 9 | Cooling fan high |
| 10 | Cooling fan, electrical vacuum pump |
| 11 | Starter |
