Opel Mokka X 2017 Fuse Box

Opel Mokka X 2017 Fuse Box Info



Passenger compartment fuse box location:

The fuse box is located on the underside of the driver's side instrument panel.



Engine compartment fuse box location:





Luggage compartment fuse box location:

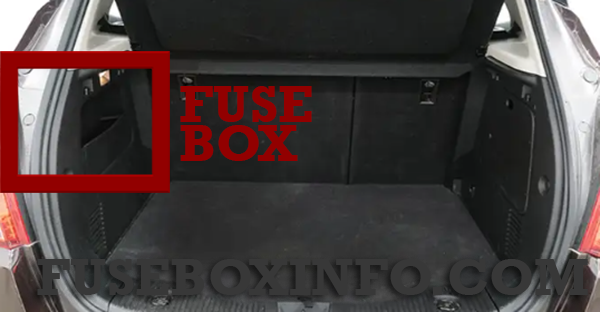

The fuse box is located on the left side of the luggage compartment behind a cover.





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
Mini Fuses
1 Body control module
2 Body control module
3 Body control module
4 Body control module
5 Body control module
6 Body control module
7 Body control module
8 Body control module
9 Ignition switch
10 Safety diagnosis module
11 Data link connector
12 Climate control
13 Tailgate
14 Central gateway module
15 Lane departure warning, Interior mirror
16 Adaptive forward lighting
17 Column lock
18 Ultrasonic park assist module
19 Body control module, Regulated voltage control
20 Steering wheel
21 -
22 Cigarette lighter, DC accessory power outlet (front)
23 Cigarette lighter, DC accessory power outlet (rear center console)
24 Spare
25 Telematics service module
26 Heated steering wheel
27 Instrument panel cluster, Infotainment system, Auxiliary heater switch
28 Trailer socket
29 Display, Infotainment system
30 Transmission control module
31 Instrument panel cluster
32 Infotainment system
33 Trailer socket
34 Passive entry, Passive start module
S/B Fuses
01 Power seat switch
02 Spare
03 Power windows front
04 Power windows rear
05 Logistic mode
06 Power seat switch
07 Spare
08 Spare



Engine compartment fuse box:

Fuse/Relay N° Functions
Mini Fuses
1 Sunroof
2 Exterior mirror switch, Rain sensor
3 -
4 -
5 Electrical brake control module
6 Intelligent battery sensor
7 Steering column lock
8 Transmission control module
9 -
10 Rear view camera, Interior rear view mirror, Headlight switch,
Headlight
11 Rear window wiper
12 Heated rear window
13 Seat, lumbar support
14 Heated exterior mirrors
15 LPG module, Fuel system control module
16 Seat heating
17 Transmission control module R/C, Water pump, Auxiliary heater
18 Engine control module R/C
19 Fuel pump
20 -
21 Cooling fan
22 -
23 Ignition coil, Injectors
24 Washer pump
25 Headlamp actuator (right hand)
26 Engine control sensors
27 -
28 Ignition
29 Ignition 1/2
30 Exhaust system
31 Left-hand high beam
32 Right-hand high beam
33 Engine control module
34 Horn
35 Air conditioning system
36 Front fog lamp
J-cases Fuses
1 Electrical brake control module
2 Front wiper
3 Power module
4 Power terminal of instrument panel fuse box
5 -
6 Fuel heater
7 Starter
8 Cooling fan
9 Cooling fan
10 Engine control module, Glow plug
11 Starter



Luggage compartment fuse box:

Fuse/Relay N° Functions
Mini Fuses
1 -
2 -
3 Amplifier
4 -
5 All-wheel drive
6 Spare
7 -
8 Spare
9 Spare
10 Spare
11 -
12 Spare
13 -
14 -
15 Spare
16 -
17 -
18 -
S/B Fuses
1 -
2 -
3 -
4 -
5 -
6 -
7 DC/DC 400W transformer
8 DC/DC 400W transformer
9 -
