Mitsubishi L200 2021 Fuse Box Info

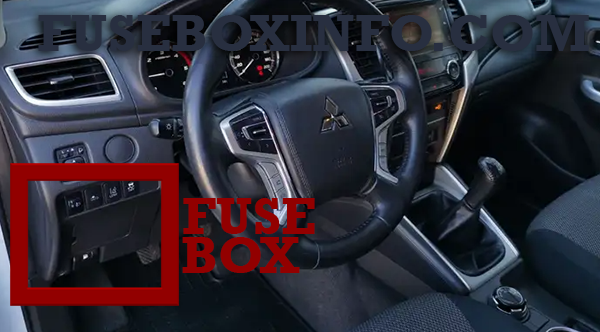

Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box (RHD vehicles) is located behind the glove box.

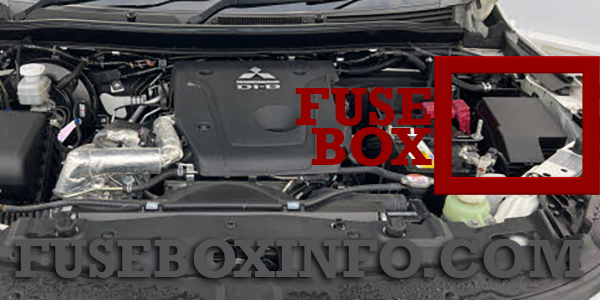

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Tail lamp (left) |
| 2 | 15A | Cigarette lighter/Accessory socket |
| 3 | 10A | Ignition coil |
| 4 | 7.5A | Starter motor |
| 5 | 20A | Sunroof |
| 6 | 15A | Accessory socket |
| 7 | 7.5A | Tail lamp (right) |
| 8 | 7.5A | Outside rear-view mirrors |
| 9 | 7.5A | Engine control unit |
| 10 | 7.5A | Control unit |
| 11 | 10A | Rear fog lamp |
| 12 | 15A | Central door lock |
| 13 | 10A | Room lamp |
| 14 | 15A | Rear window wiper |
| 15 | 7.5A | Gauge |
| 16 | 7.5A | Relay |
| 17 | 20A | Heated seat |
| 18 | 10A | Option |
| 19 | 7.5A | Heated door mirror |
| 20 | 20A | Windscreen wiper |
| 21 | 7.5A | Reversing lamps |
| 22 | 30A | Demister |
| 23 | 30A | Heater |
| 24 | 40A | Power seat |
| 25 | 10A | Radio |
| 26 | 15A | Electronic controlled unit |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| SBF1 | 40A | Ignition switch |
| SBF2 | 30A | Electric window control |
| SBF3 | 40A | Power seat |
| SBF4 | 30A | Anti-lock brake system |
| SBF5 | 30A | Electric parking brake |
| BF1 | 30A | Audio system amp |
| BF2 | 30A | Rear air conditioning/ Rear circulator |
| BF3 | - | - |
| BF4 | 30A | DCDC( AUDIO) |
| BF5 | 30A | UREA SCR |
| 1 | 10A | NOX sensor |
| 2 | 20A | Engine |
| 3 | 15A | Fuel pump/PMNOX sensor |
| 4 | 7.5A | IBS |
| 5 | 7.5A | Starter |
| 6 |
20A 15A |
Fuel line heater ETV |
| 7 | 20A | Air conditioning |
| 8 | 20A | Automatic transmission |
| 9 | 10A | Daytime running lamps |
| 10 | 7.5A | Alternator |
| 11 | 7.5A | Engine control |
| 12 | 10A | Ignition coil |
| 13 | 15A | Front fog lamps |
| 14 | 10A | Headlamp high beam (left) |
| 15 | 10A | Headlamp high beam (righ) |
| 16 | 15A | Headlamp low beam (left) |
| 17 | 15A | Headlamp low beam (right) |
| 18 | 15A | Steering heater |
| 19 | 15A | Hazard warning flasher |
| 20 | - | - |
| 21 | 20A | Radiator fan motor |
| 22 | 15A | Stop lamps (Brake lamps) |
| 23 | 20A | T/F |
| 24 | 20A | Rear heated seat |
| 25 | 20A | Headlamp washer |
| 26 | 20A | Security horn |
| 27 | 10A | Horn |
| 28 | - | - |
| 29 | 20A | AC inverter |
| #1 | 20A | Spare fuse |
| #2 | 30A | Spare fuse |
