Mitsubishi L200 2004 Fuse Box Info
Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.
The fuse box (RHD vehicles) is located at the right side of the steering column at the bottom of the instrument panel, behind the cover.

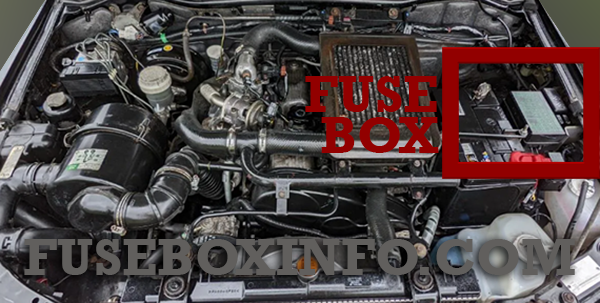

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Rear window demister |
| 2 | 20A | Heater |
| 3 | 10A | Turn-signal lamps |
| 4 | 10A | Radio |
| 5 | - | - |
| 6 | 15A | Electric door locks |
| 7 | 10A | Heater relay |
| 8 | 15A | Cigarette lighter |
| 9 | 15A | Windscreen wiper |
| 10 | 10A | Reserving lamps |
| 11 | 10A | Meter |
| 12 | 10A | Stop lamps |
| 13 | 10A | Horn |
| 14 | 10A | Power window relay |
| 15 | 10A | Automatic transmission (A/T only) |
| 16 | 15A | Fuel line heater |
| 17 | 10A | Rear heater |
| 18 | 10A | Heated mirror |
| 19 | 20A | Demister |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Room lamp |
| 2 | 10A | High beam |
| 3 | 10A | Tail lamps (Right) |
| 4 | 10A | Tail lamps (Left) |
| 5 | 10A | Hazard warming flashers |
| 6 | 30A | Air conditioning |
| 7 | 40A | Fuse |
| 8 | 40A | Ignition switch |
| 9 | 30A | Power window |
| 10 | 30A | Lamps |
| 11 | 20A | Engine |
| 12 | 60A | Alternator |
