Mitsubishi L200 2010 Fuse Box Info
Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

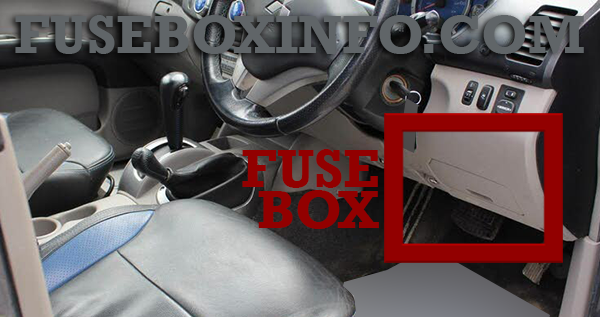

The fuse box (RHD vehicles) is located at the right side of the steering column at the bottom of the instrument panel, behind the cover.

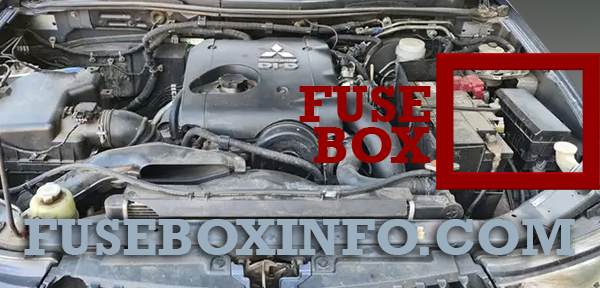

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Tail lamp (left) |
| 2 | 15A | Cigarette lighter |
| 3 | 10A | Ignition coil |
| 4 | 7.5A | Starter motor |
| 5 | 20A | Sunroof |
| 6 | 15A | Accessory socket |
| 7 | 7.5A | Tail lamp (right) |
| 8 | 7.5A | Outside rear-view mirrors |
| 9 | 7.5A | Engine control unit |
| 10 | 7.5A | Control unit |
| 11 | 10A | Rear fog lamp |
| 12 | 15A | Central door lock |
| 13 | 10A | Room lamp |
| 14 | 15A | Rear window wiper |
| 15 | 7.5A | Gauge |
| 16 | 7.5A | Relay |
| 17 | 20A | Heated seat |
| 18 | 10A | Option |
| 19 | 7.5A | Heated door mirror |
| 20 | 20A | Windscreen wiper |
| 21 | 7.5A | Reversing lamps |
| 22 | 30A | Demister |
| 23 | 30A | Heater |
| 24 | 40A | Power seat |
| 25 | 10A | Radio |
| 26 | 15A | Electronic controlled unit |
| 27 | 7.5A | Spare fuse |
| 28 | 20A | Spare fuse |
| 29 | 30A | Spare fuse |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 40A | Electric window system |
| 3 | 40A | Ignition switch |
| 4 | 10A | Air conditioning compressor |
| 5 | 20A | Condenser fan motor |
| 6 | 10A | Headlamp high-beam (left) |
| 7 | 10A | Headlamp high-beam (right) |
| 8 | 10A | Headlamp low beam (left) |
| 9 | 10A | Headlamp low beam (right) |
| 10 | 20A | Engine control |
| 11 | 7.5A | Alternator |
| 12 | 15A | Stop lamps |
| 13 | 10A | Horn |
| 14 | 20A | Automatic transmission |
| 15 | 10A | Hazard warning flasher |
| 16 | 15A | Fuel pump |
| 17 | 15A | Front fog lamps |
| 18 | 20A | Audio amp |
