Lincoln Corsair 2024 Fuse Box

Lincoln Corsair 2024 Fuse Box Info

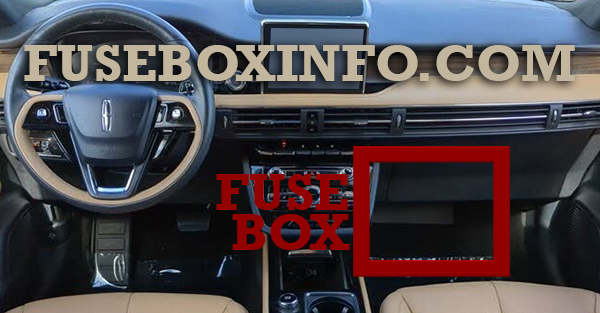

Passenger compartment fuse box location:

The fuse panel is located below the glove box.



Engine compartment fuse box location:





Fuse Box Diagram | Layout

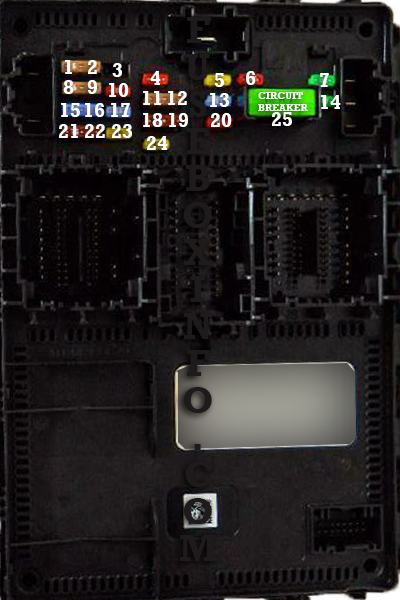

Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 5A Not used
2 5A Rear heated seats, Air quality sensor, Particulate matter sensor
3 10A Not used (spare)
4 10A Integrated control panel, Center stack display, Gateway module
5 20A Lock, Unlock
6 10A Moonroof
7 30A Passenger door module
8 5A Driveline control module
9 5A Electrochromatic mirror
10 10A Extended power module
11 5A Power liftgate, Hands-free liftgate actuation module, Telematics control unit module
12 5A Keyless keypad switch, Heads up display
13 15A Driver door lock
14 30A Driver door module
15 15A Extended power module
16 15A Not used (spare)
17 15A SYNC, RF transceiver module
18 7.5A Driver power seat switch, Passenger power seat switch, Wireless accessory charging module, Selectable drive mode switch, Driver state monitor
19 7.5A Headlamp switch pack, Telematics control unit module, Bluetooth low energy module
20 10A Not used (spare)
21 7.5A Climate control, E-shifter module
22 7.5A Instrument cluster, Steering column control module
23 20A Audio unit
24 20A Not used (spare)
25 30A Not used (spare)

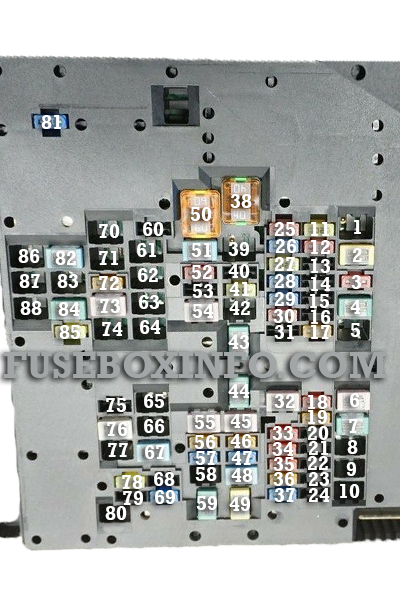

Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 - Not used
2 30A Rear defrost
3 10A Not used (spare)
4 50A Electric water pump (hybrid)
5 - Not used
6 - Not used
7 40A Driveline control module
8 - Not used
9 30A Second row seat release
10 - Not used
11 15A Powertrain control module
12 15A Powertrain control module
13 15A Powertrain control module
14 15A Powertrain control module
15 10A Vehicle dynamics module
16 - Not used
17 15A Heated wiper park
18 10A Air conditioning clutch
19 10A Not used (spare)
20 5A DC/DC converter (hybrid)
21 10A Battery charge control module (hybrid)
22 5A Not used (spare)
23 5A Charge port light ring (hybrid)
24 5A Battery electronic control module (hybrid)
25 25A Left-hand enhanced exterior lighting module
26 25A Right-hand enhanced exterior lighting module
27 5A Powertrain control module (hybrid)
28 10A Anti-lock brake system module
29 10A Powertrain control module
30 10A Electronic stability control, Transmission oil pump
31 5A Electronic power assist steering
32 30A Body control module
33 20A Advanced Driver Assistance System (ADAS)
34 10A Headlamp leveling
35 15A Heated steering wheel
36 10A Powertrain control module (hybrid)
37 20A Horn
38 40A Blower motor
39 - Not used
40 5A USB smart charger
41 20A Amplifier
42 30A Driver power seat
43 40A Anti-lock brake system valves
44 40A Not used (spare)
45 30A Passenger power seat
46 20A Not used (spare)
47 20A Heated seats
48 30A Power liftgate
49 60A Anti-lock brake control pump
50 60A Cooling fan
51 30A Moonroof
52 5A USB charge port - rear console
53 5A USB charge port - rear console
54 20A Rear heated seat module
55 30A Starter motor
56 20A Amplifier
57 10A Data link connector
58 30A Climate controlled seat module
59 40A Body control module
60 20A Rear window washer pump
61 - Not used
62 - Not used
63 - Not used
64 - Not used
65 - Not used
66 - Not used
67 - Not used
68 5A Mass air flow and intake air temperature sensor
69 15A Port fuel injectors
70 20A Rear cargo power point
71 20A Rear console power point
72 20A Rear window wiper
73 - Not used
74 30A Windshield wiper motor
75 20A Not used (spare)
76 - Not used
77 - Not used
78 15A Multi-contour seats
79 10A Not used (spare)
80 20A Fuel pump
81 - Not used
82 40A Not used (spare)
83 - Not used
84 40A Auxiliary power distribution box (hybrid)
85 5A Rain sensor
86 - Not used
87 - Not used
88 - Not used
