Lincoln Navigator 2015 Fuse Box Info

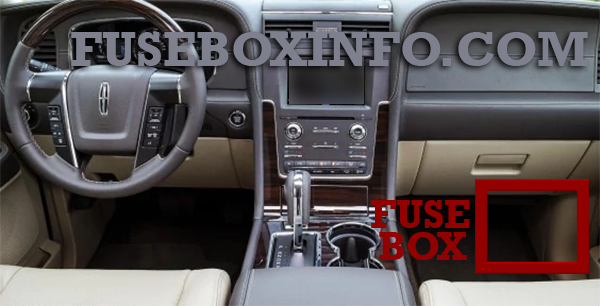

Fuse box location:
The fuse box is located on the right side of the passenger footwell behind a the trim panel.

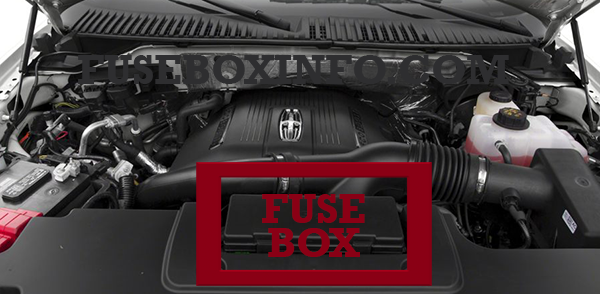

Engine compartment fuse box:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout

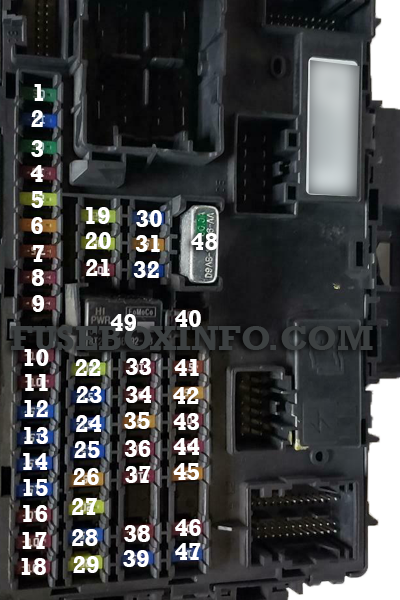

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Driver window |
| 2 | 15A | Rear seat control, multimedia gateway module |
| 3 | 30A | Passenger window |
| 4 | 10A | Demand lamps |
| 5 | 20A | Amplifier |
| 6 | 5A | Rear electronic automatic temperature control |
| 7 | 7.5A | Power mirror, driver seat memory switch |
| 8 | - | Not used |
| 9 | 10A | SYNC, power lift gate, electric finish panel, display |
| 10 | 10A | Run accessory relay |
| 11 | 10A | Passive entry/start module |
| 12 | 15A | Interior lighting, puddle lamps |
| 13 | 15A | Right turn and stop/turn signals |
| 14 | 15A | Left turn and stop/turn signals |
| 15 | 15A | Reverse lamp, center high mount stop lamp, EC mirror |
| 16 | 10A | Right front low beam |
| 17 | 10A | Left front low beam |
| 18 | 10A | Brake shift interlock/start button LED/keypad illumination, third row power folding seat, passive entry touch start |
| 19 | 20A | Subwoofer amplifier, THX amplifier |
| 20 | 20A | Lock/unlock relays |
| 21 | - | Not used |
| 22 | 20A | Horn |
| 23 | 15A | SWCM, cluster |
| 24 | 15A | Adjustable pedals/power adjustable column, Datalink |
| 25 | 15A | Liftgate release decklid, liftglass release motor |
| 26 | 5A | Push to start switch |
| 27 | 20A | Passive entry/start module |
| 28 | 15A | Ignition switch, key inhibit switch |
| 29 | 20A | Radio, GPS |
| 30 | 15A | Front park lamps |
| 31 | 5A | Trailer brake on/off |
| 32 | 15A | Power vent, rear windows, power inverter |
| 33 | 10A | CCD suspension module |
| 34 | 10A | Rear park assist, rear camera, BLIS, heated seat |
| 35 | 5A | Climate module, O/D switch |
| 36 | - | Not used |
| 37 | 10A | 4X4 module |
| 38 | 10A | EC mirror, moonroof, DVD |
| 39 | 15A | Left and right front high beams |
| 40 | 10A | Rear park/tail lamps |
| 41 | 7.5A | Restraints control module |
| 42 | - | Not used |
| 43 | - | Not used |
| 44 | - | Not used |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control |
| 47 | - | Not used |
| 48 | - | Not used |
| 49 | - | Not used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Rear washer relay |
| 2 | - | Starter relay |
| 3 | - | Blower motor relay |
| 4 | - | Rear wiper relay |
| 5 | - | Fuel pump relay |
| 6 | - | Electronic cooling fan |
| 7 | - | Rear window defroster, heated mirror relay |
| 8 | - | Electronic cooling fan |
| 9 | - | Run/start relay |
| 10 | - | Power distribution box relay |
| 11 | 40A | Power running boards, heated seats |
| 12 | 40A | Run/start relay |
| 13 | 30A | Starter relay |
| 14 | 50A | Electronic cooling fan |
| 15 | 20A | RH HID headlamp |
| 16 | 50A | Electronic fan |
| 17 | 20A | LH HID headlamp |
| 18 | 30A | Trailer brake |
| 19 | 20A | Power point (console) |
| 20 | 20A | 4x4 module relay |
| 21 | 30A | Trailer tow module |
| 22 | 30A | Passenger power seat |
| 23 | - | Air conditioner clutch relay |
| 24 | - | Trailer tow park lamp relay |
| 25 | - | Not used |
| 26 | 10A | ALT sensor |
| 27 | 20A | 4x4 all wheel drive module |
| 28 | 25A | Trailer tow park lamp relay |
| 29 | 10A | Integrated wheel end solenoid |
| 30 | 10A | Air conditioner clutch relay |
| 31 | 15A | Trailer tow back up lamp |
| 32 | 40A | Blower motor relay |
| 33 | 40A | 110V AC power point |
| 34 | 30A | Auxiliary blower motor |
| 35 | 50A | Powertrain control module relay |
| 36 | 30A | Power liftgate |
| 37 | - | Not used |
| 38 | - | Not used |
| 39 | - | Trailer tow backup lamps relay |
| 40 | - | Electronic fan 2 relay |
| 41 | 10A | Powertrain control module keep-alive power |
| 42 | 5A | Run/start relay |
| 43 | 10A | Brake on/off switch |
| 44 | 20A | Fuel pump relay |
| 45 | 10A | Not used (spare) |
| 46 | 15A | Front/rear washer pump |
| 47 | 30A | Rear wiper motor |
| 48 | 40A | Trailer tow module |
| 49 | - | Not used |
| 50 | 30A | Front wiper motor relay |
| 51 | 40A | Rear window defroster and heated mirror relay |
| 52 | 10A | Anti-lock brake system run/start feed |
| 53 | 5A | Powertrain control module ISP |
| 54 | 5A | Power steering |
| 55 | 5A | Headlamp control module |
| 56 | 30A | Passenger compartment fuse panel run/start feed |
| 57 | 5A | Blower motor run/start |
| 58 | - | Not used |
| 59 | 15A | Heated mirrors |
| 60 | - | Not used |
| 61 | - | Not used |
| 62 | - | Not used |
| 63 | 25A | Electronic fan |
| 64 | 30A | Moonroof |
| 65 | 20A | Auxiliary power point (instrument panel valance panel) |
| 66 | 20A | Auxiliary power point (rear of center console) |
| 67 | 40A | Front row climate controlled seats |
| 68 | 30A | Anti-lock brake system valves |
| 69 | 60A | Anti-lock brake system pump |
| 70 | 30A | Third row power fold seat |
| 71 | 20A | Auxiliary power point/cigar lighter |
| 72 | 20A | Auxiliary power point (right rear quarter panel) |
| 73 | 30A | Rear seat climate module |
| 74 | 30A | Driver power seat |
| 75 | 25A | Vehicle power 1 – powertrain control module |
| 76 | 20A | Vehicle power 2 – powertrain control module |
| 77 | 20A | Vehicle power 4 – ignition coils |
| 78 | - | Not used |
| 79 | 15A | Vehicle power 3 – powertrain control module |
| 80 | 5A | Rain sensor |
| 81 | - | Not used |
| 82 | - | Not used |
| 83 | - | Not used |
| 84 | - | Not used |
| 85 | - | Not used |
