Lincoln Corsair 2022 Fuse Box Info

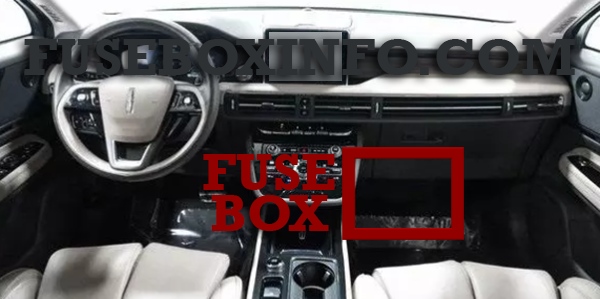

Passenger compartment fuse box location:
The fuse box is below the glove box.

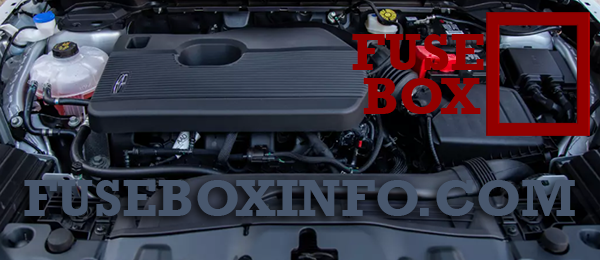

Engine compartment fuse box location:
Fuse Box Diagram | Layout

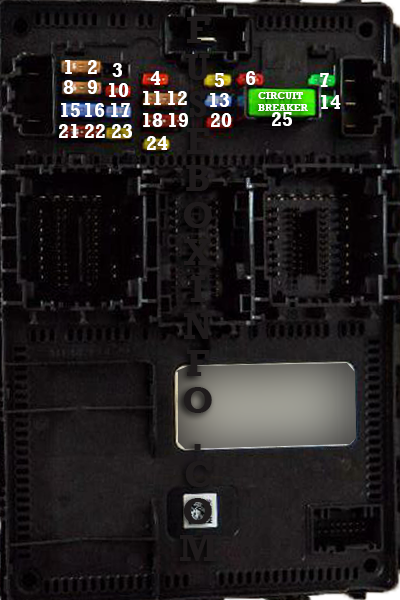

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Not used |
| 2 | 5A | Rear heated seats |
| 3 | 10A | Not used (spare) |
| 4 | 10A | Ignition switch |
| 5 | 20A | Lock, Unlock |
| 6 | 10A | Moonroof |
| 7 | 30A | Passenger door module |
| 8 | 5A | Parking assist control module |
| 9 | 5A | Image processing module A, Electrochromatic mirror |
| 10 | 10A | Extended power module |
| 11 | 5A | Power liftgate, Hands-free liftgate actuation module, Telematics control unit module |
| 12 | 5A | Keyless keypad switch |
| 13 | 15A | Driver door lock |
| 14 | 30A | Driver door module |
| 15 | 15A | Extended power module |
| 16 | 15A | Vehicle dynamics module |
| 17 | 15A | SYNC, Receiver transceiver module, Integrated control panel |
| 18 | 7.5A | Driver power seat switch, Passenger power seat switch, Wireless accessory charging module, Selectable drive mode switch |
| 19 | 7.5A | Headlamp switch pack, Telematics control unit module, Bluetooth low energy module |
| 20 | 10A | Not used (spare) |
| 21 | 7.5A | Climate control, E-shifter module |
| 22 | 7.5A | Instrument cluster, Gateway module, Steering column control module |
| 23 | 20A | Audio unit |
| 24 | 20A | Head up display |
| 25 | 30A | Not used (spare) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 30A | Heated backlight |
| 3 | 10A | Not used (spare) |
| 4 | 50A | Electric water pump (hybrid) |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | 40A | Driveline control module |
| 8 | - | Not used |
| 9 | 30A | Second row seat release |
| 10 | - | Not used |
| 11 | 15A | Powertrain control module |
| 12 | 15A | Powertrain control module |
| 13 | 15A | Powertrain control module |
| 14 | 15A | Powertrain control module |
| 15 | - | Not used |
| 16 | - | Not used |
| 17 | 15A | Heated wiper park |
| 18 | 10A | Air conditioning clutch |
| 19 | - | Not used |
| 20 | 5A | DC/DC converter (hybrid) |
| 21 | 10A | Battery charge control module (hybrid) |
| 22 | 5A | Not used (spare) |
| 23 | 5A | Charge port light ring (hybrid) |
| 24 | 5A | Battery electronic control module (hybrid) |
| 25 | 25A | Left-hand enhanced exterior lighting module |
| 26 | 25A | Right-hand enhanced exterior lighting module |
| 27 | 5A | Powertrain control module (hybrid) |
| 28 | 10A | Anti-lock brake system module |
| 29 | 10A | Powertrain control module |
| 30 | 10A | Electronic stability control, Transmission oil pump |
| 31 | 5A | Electronic power assist steering |
| 32 | 30A | Body control module |
| 33 | 10A | Front parking aid camera, Rear view camera, Blind spot information system, Cruise control module, Image processing module B |
| 34 | 10A | Headlamp leveling |
| 35 | 15A | Heated steering wheel |
| 36 | 10A | Powertrain control module (hybrid) |
| 37 | 20A | Horn |
| 38 | 40A | Blower motor |
| 39 | - | Not used |
| 40 | 10A | Brake on-off switch |
| 41 | 20A | Amplifier |
| 42 | 30A | Driver power seat |
| 43 | 40A | Anti-lock brake system valves |
| 44 | 40A | Not used (spare) |
| 45 | 30A | Passenger power seat |
| 46 | 20A | Not used (spare) |
| 47 | 20A | Heated seats |
| 48 | 30A | Power liftgate |
| 49 | 60A | Anti-lock brake control pump |
| 50 | 60A | Cooling fan |
| 51 | 30A | Moonroof |
| 52 | 5A | USB charge port - rear console |
| 53 | 5A | USB charge port - rear console |
| 54 | 20A | Rear heated seat module |
| 55 | 30A | Starter motor |
| 56 | 20A | Amplifier |
| 57 | 10A | Data link connector |
| 58 | 30A | Climate controlled seat module |
| 59 | 40A | Body control module |
| 60 | - | Not used |
| 61 | - | Not used |
| 62 | - | Not used |
| 63 | - | Not used |
| 64 | - | Not used |
| 65 | - | Not used |
| 66 | - | Not used |
| 67 | - | Not used |
| 68 | - | Not used |
| 69 | 15A | Port fuel injectors |
| 70 | 20A | Rear cargo power point |
| 71 | 20A | Rear console power point |
| 72 | 20A | Rear window wiper |
| 73 | - | Not used |
| 74 | 30A | Windshield wiper motor |
| 75 | 20A | Not used (spare) |
| 76 | - | Not used |
| 77 | - | Not used |
| 78 | 15A | Multi-contour seats |
| 79 | 10A | Not used (spare) |
| 80 | 20A | Fuel pump |
| 81 | 10A | Rear window washer pump |
| 82 | 40A | Not used (spare) |
| 83 | - | Not used |
| 84 | 40A | Auxiliary power distribution box (hybrid) |
| 85 | 5A | Rain sensor |
| 86 | - | Not used |
| 87 | - | Not used |
| 88 | - | Not used |
