Kia Pegas/Soluto 2026 Fuse Box Info

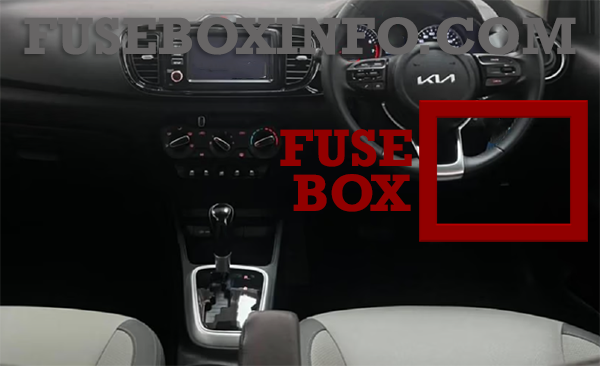

Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel (RHD). The fuse box is located at the left side of the steering column at the bottom of the instrument panel (LHD).

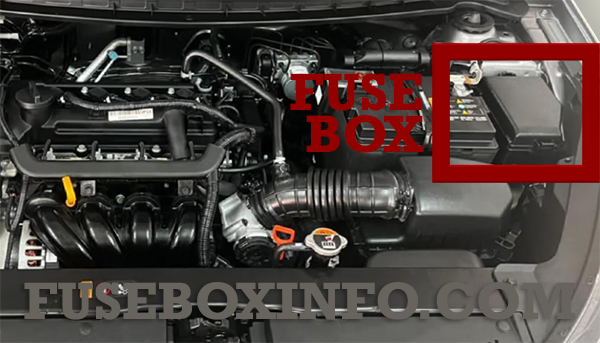

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| 1. - | - | - |
| 2. FOG LAMP REAR | 10A | Rear Fog Lamp Relay |
| 3. HAZARD | 15A | Hazard Switch, Hazard Relay (With BCM (Body Control Module)) |
| 4. DOOR LOCK | 20A |
[Without BCM (Body Control Module)] Driver Door Lock Actuator [With BCM (Body Control Module)] Door Lock/Unlock Relay |
| 5. | - | - |
| 6. FOG LAMP FRONT | 15A | Front Fog Lamp Relay |
| 7. STOP LAMP | 15A | Stop Signal Electronic Module, Stop Lamp Switch |
| 8. - | - | - |
| 9. P/WINDOW LH | 25A | Power Window Main Switch, Rear Power Window Switch Left Handle side |
| 10. POWER OUTLET | 20A | Front Power Outlet |
| 11. - | - | - |
| 12. SUNROOF | 15A | Sunroof Motor |
| 13. - | - | - |
| 14. P/WINDOW RH | 25A | Power Window Main Switch, Rear Power Window Switch Right Handle side |
| 15. ACC | 10A | Power Outside Mirror Switch, BCM (Body Control Module), Audio, Audio/Video & Navigation Head Unit |
| 16. AMS | 10A | Battery Sensor |
| 17. IMMO | 10A | Immobiliser Module |
| 18. - | - | - |
| 19. HEATED MIRROR | 10A | Air Conditioner Control Module, PCM (Power train Control Module)/ECM (Engine Control Module) |
| 20. A/BAG IND | 10A | Instrument Cluster |
| 21. MDPS2 | 10A | MDPS (Motor Driven Power Steering) Unit |
| 22. AIR BAG | 10A | SRS (Supplemental Restraint System) Control Module |
| 23. IG1 | 10A | Stop Lamp Switch, BCM (Body Control Module), Audio/Video & Navigation Head Unit, Crash Pad Switch |
| 24. T/SIGNAL LAMP | 10A | Hazard Switch |
| 25. ABS3 | 10A | ABS (Anti-lock brake system) Control Module / ESC (Electronic stability control) |
| 26. CLUSTER | 10A | Instrument Cluster |
| 27. B/UP LAMP2 | 10A | [Manual Transmission] Back-Up Lamp Switch |
| 28. TCU2 | 10A | Output Speed Sensor, Input Speed Sensor, Inhibitor Switch |
| 29. TAIL LAMP LH | 10A/7.5A | Rear Combination Lamp (OUT) Left Handle side, License Lamp Left Handle side/Right Handle side, Head Lamp Left Handle side |
| 30. - | - | - |
| 31. ECU4 | 10A | Immobiliser Module, PCM [Power train Control Module], ECM [Engine Control Module] |
| 32. VACUUM PUMP | 10A | Electronic vacuum pump IG1 |
| 33. TAIL LAMP RH | 10A/7.5A | Rear Combination Lamp (OUT) Right Handle side, Head Lamp Right Handle side, Air Conditioner Control Module, Instrument Cluster, Clock Spring, Hazard Switch, Crash Pad Switch, Audio, Auto Transmission Shift Lever Illumination, Audio/Video & Navigation Head Unit, AUX & USB Jack, Head Lamp Levelling Device Switch |
| 34. - | - | - |
| 35. - | - | - |
| 36. IG2 2 | 10A | BCM (Body Control Module), Air Conditioner Control Module, Head Lamp Levelling Device Switch, Sunroof Motor, Head Lamp Left Handle side/Right Handle side, Engine Room Junction Block (Blower Relay), Without BCM [Body Control Module]-Power Window Relay |
| 37. START | 10A |
[Auto Transmission] Inhibitor Switch [Manual Transmission] Ignition Lock Switch |
| 38. - | - | - |
| 39. - | - | - |
| 40. - | - | - |
| 41. WIPER2 | 20A | Front Wiper Motor, M_F_SW_W |
| 42. HEAD LAMP | 10A | Instrument Cluster, Engine Room Junction Block (Head Lamp HI Relay, Head Lamp LOW Relay) |
| 43. - | - | - |
| 44. ROOM LAMP | 10A | BCM (Body Control Module), Front Room Lamp, Luggage Lamp, Instrument Cluster, Data Link Connector |
| 45. AUDIO | 20A | Audio, Audio/Video & Navigation Head Unit |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BATT1 | 50A | Instrument Panel Junction Block (Fuse - Audio, Room Lamp, Tail Lamp Relay, AMS, FOG LAMP FRONT, FOG LAMP REAR) |
| ECU1 | 30A | Main Relay |
| ABS1 | 40A | ABS (Anti-lock brake system) Control Module, ESC(Electronic stability control) Control Module |
| ABS2 | 40A | ABS (Anti-lock brake system) Control Module, ESC(Electronic stability control) Control Module |
| RR HTD | 40A | Instrument Panel Junction Block (Rear Defogger Relay) |
| BLOWER | 40A | Blower Relay |
| MDPS1 | 80A | MDPS (Motor Driven Power Steering) Unit |
| B+ | 30A | Electronic vacuum pump |
| IGN1 | 40A | Ignition Switch, START RLY |
| IGN2 | 30A | Ignition Switch |
| C/FAN | 40A | Cooling Fan Relay |
| BATT2 | 50A | Instrument Panel Junction Block (Fuse - STOP LAMP, HAZARD, IMMO, SUNROOF, DOOR LOCK, Power Window Relay) |
| ECU3 | 15A | PCM (Power train Control Module)/ECM (Electronic Control Module) |
| F/PUMP | 15A | Fuel Pump Relay |
| H/LP LH | 10A | Head Lamp Left Handle side |
| H/LP RH | 10A | Head Lamp Right Handle side |
| ECU2 | 15A | PCM (Power train Control Module)/ECM (Electronic Control Module), A/CON Relay, Cooling Fan Relay, Oil Control Valve #1/#2, Purge Control Solenoid Valve, Oxygen Sensor (Up/Down) |
| INJECTOR | 15A | PCM (Power train Control Module)/ECM (Electronic Control Module), Injector #1 ~ #4, Fuel Pump Relay |
| TCU1 | 15A | PCM (Power train Control Module) |
| HORN | 10A | Horn Relay |
| A/CON | 10A | Air Conditioner Relay |
| B/UP LP | 7.5A | [Auto Transmission] Rear Combination Lamp (Out) Right Handle side, Audio/Video & Navigation Head Unit |
| IGN COIL | 15A | Condenser, Ignition Coil #1~#4 |
| WIPER | 10A | Front Wiper Motor, Multifunction Switch (Wiper) |
