Kia Carens 2024 Fuse Box Info

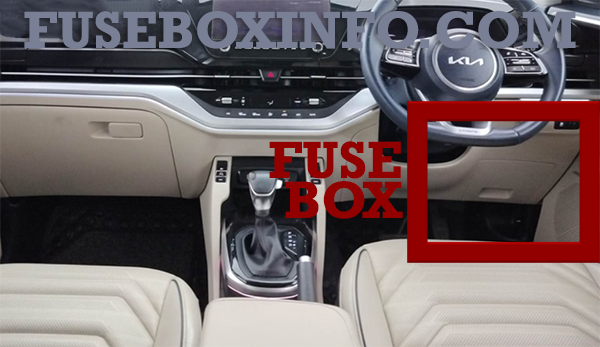

Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel (RHD). The fuse box is located at the left side of the steering column at the bottom of the instrument panel (LHD).

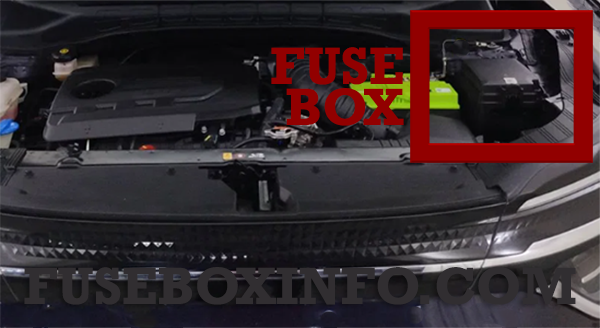

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU (Integrated Body Control Unit) |
| MEMORY | 10A | Outside Mirror Folding/Unfolding Relay, Air Conditioner Control Unit, Mood Lamp Unit, Mood Lamp(Crash Pad, Console, Front & Rear Door), Instrument Cluster, Autolight Photo Sensor, DC-DC Convertor Unit (ISG) |
| E-CALL | 10A | Emergency Call (E-Call) Module |
| SAFETY LH | 25A | Safety Power Window LH |
| REAR HEATED | 10A | Air Conditioner Control Unit, Smartstream G1.5 T-GDi, Smartstream G1.5 : ECM (Engine Control Module) |
| AMP | 25A | ^ISG : AMP(Amplifier) Unit ISG : DC-DC Convertor Unit |
| SAFETY P/WINDOW DRV | 25A | Driver Safety Power Window Module |
| SAFETY RH | 25A | Driver Safety Power Window Module |
| MODULE3 | 7.5A | Stop Lamp Switch |
| ECU6 | 10A | ECM(Engine Control Module) |
| REAR A/C | 20A | Rear Blower Relay |
| ACC | 10A | Outside Mirror Switch, IBU (Intergrated Body Control Unit), Front USB Charger, Key Board Unit, Emergency Call (E-call), Module, ^ISG (Audio Unit, Amplifier Unit), ISG (DC-DC Convertor Unit) |
| MULTIMEDIA | 20A | ^ISG : Audio (Display) / Audio/Video & Navigation Head Unit / Audio (Compact)ISG : DC-DC Convertor Unit |
| TAILGATE OPEN | 10A | Tailgate Relay |
| SUNROOF | 20A | Sunroof Controller (Glass/Blind Motor) |
| SEAT HEATER | 30A | Front Air Ventilation + Seat Warmer Control Module |
| P/WINDOW RH | 25A | RHD: Power Window Main Switch LHD: Power Window Main Switch, Passenger Power Window Switch |
| MODULE4 | 10A | Audio (Display) / Audio/Video & Navigation Head Unit / Audio (Compact), Air Conditioner Control Unit |
| CLUSTER | 7.5A | Instrument Cluster |
| DOOR LOCK | 20A | Center Door Lock/Unlock Relay |
| POWER OUTLET | 15A | Power Socket |
| A/BAG IND | 7.5A | Instrument Cluster |
| MDPS | 7.5A | Motor Driven Power Steering Unit - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| MODULE1 | 7.5A | AT/IVT/DCT : Gear Shift Lever Unit, Rain Sensor, On Board Diagnosis, Front Air Ventilation Seat Control Module |
| WIPER FRT2 | 10A | IBU(Integrated Body Control Unit) |
| MODULE5 | 10A | Console Switch, Crash Pad Switch, DC-DC Convertor Unit (ISG), IBU (Integrated Body Control Unit), Emergency Call (E-call) Module, Gear Shift Lever Indicator, On Board Diagnosis, Wireless Charger, Electronic Chromic Mirror, Air Purifier, Head Lamp Leveling Device, Front Air Ventilation + Seat Warmer Control Module, Amplifier Unit |
| TCU2 | 10A | Inhibitor Switch(AT/IVT/DCT), Electronic Oil Pump (IVT ISG), AT/DCT : TCM (Transmission Control Module), DCT : Gear Shift Lever |
| IBU1 | 15A | IBU (Integrated Body Control Unit) |
| USB CHARGER | 15A | USB Charger (Console & Luggage) |
| START | 7.5A | [Manual Transmission & Without Smart Key] Ignition Lock &Clutch Switch[Manual Transmission & With Smart Key] Engine Room Block (Start Relay), IBU (Integrated Body Control Unit), ECM (Engine Control Module), PCM (Power train Control Module), [Auto Transmission] Transmission Range Switch |
| AIRBAG | 10A | Airbag Control Module |
| SENSOR4 ((Diesel) 1.5 VGT) | 10A | Fuel Water Sensor, Glow Relay Unit |
| VACUUM PUMP Smartstream G1.5 T-GDi) | 10A | Vacuum Switch, Vacuum Pump |
| WIPER FRT1 | 25A | Front Wiper Motor & Washer |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| A/C2 | 7.5A | Air Conditioner Control Unit, Rear Blower Relay |
| MODULE7 | 7.5A | Front Air Ventilation + Seat Warmer Control Module |
| MODULE6 | 7.5A | IBU (Integrated Body Control Unit) |
| WASHER | 15A | Multifunction Switch |
| A/C3 | 10A | Air Conditioner Control Unit |
| IBU2 | 7.5A | IBU (Integrated Body Control Unit) |
| ABS3 | 10A | ABS (Antilock Braking System Control Unit)/ ESC (Electronic Stability Control Unit) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ABS1 | 40A | ABS (Anti-lock Braking System) Unit/ ESC (Electronic Stability Control) Unit |
| ABS2 | 30A | ABS (Anti-lock Braking System) Unit/ ESC (Electronic Stability Control) Unit |
| BLOWER | 40A | Front Blower Relay |
| REAR HEATED | 40A | ICU Junction Block - Rear Heater Relay |
| ALT Smartstream G1.5 | 150A | Alternator, Blower Relay, ABS (Anti-lock Braking System) Unit/ ESC (Electronic Stability Control) Unit, ICU Junction Block - Rear Heater Relay |
| MDPS1 Smartstream G1.5 | 80A | MDPS (Motor Driven Power Steering) Unit |
| ALT Smartstream G1.5 T-GDi | 150A | Alternator, Blower Relay, ABS (Anti-lock Braking System) Unit/ ESC (Electronic Stability Control) Unit, Rear Heater, Cooling Fan Motor |
| MDPS1 Smartstream G1.5 T-GDi | 80A | MDPS (Motor Driven Power Steering) Unit |
| COOLING FAN Smartstream G1.5 T-GDi | 80A | Cooling Fan Motor |
| ALT (Diesel) 1.5 VGT | 180A | Alternator, Blower Relay, ABS (Antilock Braking System) Unit/ ESC (Electronic Stability Control) Unit, Rear Heater, Glow Relay Unit |
| MDPS1 (Diesel) 1.5 VGT | 80A | MDPS (Motor Driven Power Steering) Unit |
| GLOW PLUG (Diesel) 1.5 VGT | 100A | Glow Relay Unit |
| B+3 | 60A | ICU Junction Block (Long Term Load Auto Cut Relay, Fuses - Rear A/C, Brake Switch, Module1, IBU1, Door Lock) |
| B+1 | 40A | ICU Junction Block (IPS1, IPS2, IPS3, IPS4, IPS5, IPS6) |
| B+2 | 50A | ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12) |
| B+4 | 30A (Without Seat Warmer)/50A (With Seat Warmer) | ICU Junction Block (P/WDW Main Relay, Fuses - Driver Safety Power Window, Sunroof, Amplifier, Seat Heater, Tail Gate open) |
| A/C1 | 10A | Air Conditioner Relay |
| COOLING FAN |
40A(G2 1.5)/ 50A(U2 1.5) |
Cooling Fan Hi Relay, Cooling Fan Lo Relay |
| SGA | 40A | [Smartstream G1.5 T-GDi] Smart Gear Actuator |
| FUEL HEATER | 30A | [(Diesel) 1.5 VGT] Fuel Heater Relay |
| IG1 | 40A | ACC Relay, IG1 Relay, Ignition Switch |
| IG2 | 30A | Start Relay, IG2 Relay, Ignition Switch |
| DCT1 | 40A | [Smartstream G1.5 T-GDi] Transmission Control Module (TCM) |
| EOP | 40A | [Smartstream G1.5] Electronic Oil Pump Unit (IVT and ISG spec only) |
| DCT2 | 40A | [Smartstream G1.5 T-GDi] Transmission Control Module (TCM) |
| DCT3 | 15A | [Smartstream G1.5 T-GDi] Transmission Control Module (TCM) |
| AMS | 10A |
[(Diesel) 1.5 VGT-All Spec] Battery Sensor, [Smartstream G1.5 T-GDi, Smartstream G1.5-ISG Only] Battery Sensor |
| VACUUM PUMP | 20A | [Smartstream G1.5 T-GDi] Vacuum Pump |
| FUEL PUMP | 15A | Fuel Pump Relay |
| HORN | 15A | Horn Relay (All), B/A Horn Relay (India not applied) |
| 2ndROW SEAT FOLDING | 25A | Rear Seat Folding Unit |
| ECU2 | 15A | ECM (Engine Control Module), PCM (Power train Control Module) |
| ECU5 | 15A |
[Smartstream G1.5 T-GDi, Smartstream G1.5] ECM (Engine Control Module), PCM (Power train Control Module) |
| TCU1 | 25A | [(Diesel) 1.5 VGT] TCM (Transmission Control Module) |
| ECU1 | 30A | Main Relay |
| IGN COIL | 20A | [Smartstream G1.5 T-GDi, Smartstream G1.5] Ignition Coil #1/#2/#3/#4 |
| SENSOR3 | 10A |
[(Diesel) 1.5 VGT] Mass Air Flow Sensor, PM Sensor, Electronic VGT Actuator (Variable Geometry Turbocharger), EGR Cooling Bypass Solenoid Valve [Smartstream G1.5 T-GDi] Cooling Fan Motor |
| INJECTOR | 15A | [Smartstream G1.5] Injector #1/#2/#3/#4 |
| ECU3 | 20A | [Smartstream G1.5 T-GDi, Smartstream G1.5] ECM (Engine Control Module), PCM (Power train Control Module) |
| ECU4 | 20A | ECM (Engine Control Module), PCM (Power train Control Module) |
| SENSOR1 | 10A |
[ALL] Fuel Pump Relay [(Diesel) 1.5 VGT] Inlet Metering Unit |
| SENSOR2 | 10A |
[(Diesel) 1.5 VGT] Fuel Heater Relay, Cam Position Sensor, Cooling Fan Hi Relay, Colling Fan Lo Relay, Air Conditioner Relay, Stop Lamp Switch Lambda Up & Down [Smartstream G1.5 T-GDi] Purge Control Solenoid Valve, RCV, Air Conditioner Relay, V oil Pump, Oil Control Valve (IN, EX), Oxygen Sensor Up & Down [Smartstream G1.5] Purge Control Solenoid Valve, Cooling Fan Hi Relay, Colling Fan Lo Relay, Air Conditioner Relay, VIS Solenoid, Oil Control Valve (IN, EX), Oxygen Sensor Up & Down |
