Kia Tasman 2026 Fuse Box Info

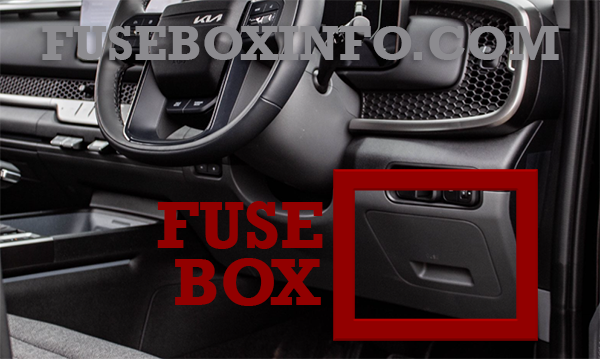

Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel.

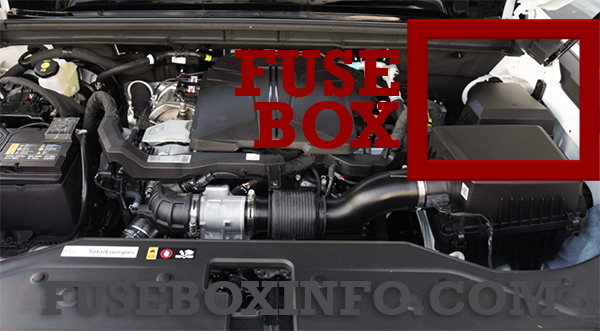

Engine compartment fuse box location:

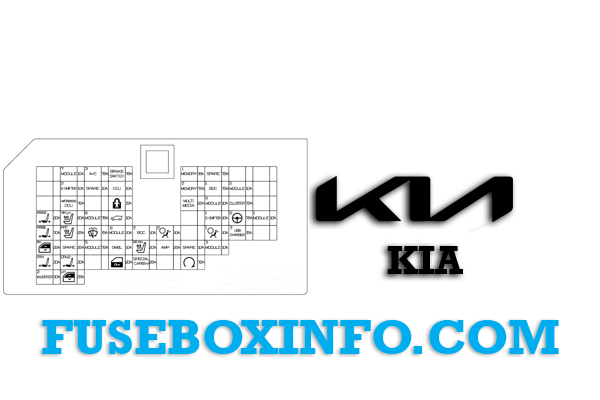

Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| PDC Block | ||
| RESERVE | 15A | Not Used |
| MODULE7 | 10A | Clutch Pedal PRAC (Parking Release Actuator Controller) |
| A/C3 | 7.5A | DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), DATC Controller, PM Sensor (Particle Matter Sensor) |
| BRAKE SWITCH | 7.5A | BDC (Body Domain Controller), Stop Lamp Switch |
| MEMORY1 | 15A | ccNC Keyboard (connected car Navigation Cockpit Keyboard), Mood Lamp Unit & Mood Lamp, Cluster, USB Jack, WPC (Wireless Power Charger), ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), Rear Corner Radar |
| SPARE | 7.5A | SPARE |
| RESERVE | 10A | Not Used |
| RESERVE | 10A | Not Used |
| RESERVE | 10A | Not Used |
| E-SHIFTER2 | 10A | SBW Lever (Shift By Wire Lever) |
| SPARE | 10A | SPARE |
| CCU | 10A | CCU (Communication Central Unit) |
| MEMORY2 | 7.5A | DATC_CONTROLLER (Dual Automatic Temperature Controller), DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), BDC (Body Domain Controller) |
| BDC1 | 7.5A | BDC (Body Domain Controller) |
| MODULE2 | 10A | CCU (Communication Central Unit), e-CALL, DCU (emergency-CALL Data Connectivity Unit), DAU (Door Area Unit), Stop Lamp Switch |
| RESERVE | 10A | Not Used |
| RESERVE | 10A | Not Used |
| wirless DCU | 7.5A | e-CALL, DCU (emergency-CALL Data Connectivity Unit) |
| RESERVE | 10A | Not Used |
| CHILD LOCK | 15A | Power Child Lock/Unlock |
| MULTIMEDIA | 25A | ccNC (connected car Navigation Cockpit) |
| MODULE4 | 10A | WPC (Wireless Power Charger), TGS Lever Indicator (Transmission Gear Shift Lever Indicator), OBD (On Board Diagnosis), MTC (Manual Temperature Control), DATC (Dual Automatic Temperature Control), ECM (Electronic Chromic Mirror), ICC UNIT (In Cabin Camera Unit), ccNC (connected car Navigation Cockpit), DATC_CONTROLLER (Dual Automatic Temperature Controller), CDU (Climate Display Unit), HLLD SW (Head Lamp Levelling Device Switch), WPC (Wireless Power Charger), PDCex (Power-net Domain Controller extended), External Amplifier (Harman/Kardon), Rear Seat Warmer Switch, LH/RH IMS ECU (Integrated Memory Seat ECU), Driver Seat Warmer/Ventilation Switch, Passenger Seat Warmer/Ventilation Switch, HLLD Actuator LH/RH (Head Lamp Levelling Device Actuator LH/RH) |
| CLUSTER | 7.5A | Cluster |
| RESERVE | 10A | Not Used |
| P/SEAT PASS2 | 20A | Passenger Power Seat and Lumbar Support |
| S/HEATER RR LH | 20A | Rear Seat LH Warmer |
| MODULE6 | 7.5A | AC Inverter Power Outlet (Console), AC Inverter ECU , PDCex (Power-net Domain Controller extend), P_LBM (Parking Lithium Battery Module), AC Inverter Power Outlet (Bed) |
| TAILGATE OPEN | 10A | Tailgate Latch Actuator |
| RESERVE | 10A | Not Used |
| E-SHIFTER1 | 10A | SBW Lever (Shift By Wire Lever), PRAC (Parking Release Actuator Controller) |
| MDPS2 | 7.5A | C-MDPS (Column-Motor Driven Power Steering) |
| MODULE1 | 10A | e-CALL DCU (emergency-CALL Data Connectivity Unit), BDC (Body Domain Controller), CCU (Communication Central Unit), ccNC (connected car Navigation Cockpit), ccNC Keyboard (connected car Navigation Cockpit Keyboard), PRAC (Parking Release Actuator Controller), External Amplifier (Harman/Kardon), ADAS Parking ECU (Advanced Driver Assistance System Parking ECU) |
| P/SEAT PASS1 | 30A | Passenger Power Seat and Lumbar Support |
| S/HEATER FRT | 25A | Driver and Passenger Seat Warmer/Ventilation |
| WASHER | 15A | Washer Motor |
| MODULE8 | 10A | OBD (On Board Diagnosis), ICC UNIT (In Cabin Camera Unit), Rain Sensor, SEAT_DRIV Driver and Passenger Outside Handle, Lamp Driver and Passenger Puddle Lamp, Canopy, PDCex (Power-net Domain Controller extend), IMS Seat, ECU (Integrated Memory System Seat ECU) |
| BDC2 | 10A | Ignition Switch, BDC (Body Domain Controller), BLE MASTER (Bluetooth Low Energy MASTER), BLE SLAVE (Bluetooth Low Energy SLAVE), UWB (Ultra Wide Band), DAU (Door Area Unit), Driver and Passenger Outside Handle Touch Type, IMS Outside Mirror, ECU (Integrated Memory System Outside Mirror ECU), ATM Solenoid (Auto TransMission Solenoid) |
| AIR BAG2 | 10A | Airbag Control Unit |
| RESERVE | 10A | Not Used |
| AIR BAG1 | 10A | Occupant Detection System, Airbag Control Unit |
| USB CHARGER3 | 15A | USB Charger (Seat/Crash Pad) |
| RESERVE | 10A | Not Used |
| P/WINDOW RH | 25A | Power Window Motor RH |
| SUNROOF | 25A | Sunroof |
| MODULE5 | 7.5A | BDC (Body Domain Controller) |
| SMBL | 10A | SMBL (Side Mounted Bed Light) |
| S/HEATER RR RH | 20A | Rear Seat RH Warmer |
| AMP | 25A | External Amplifier (Harman/Kardon) |
| SPARE | 10A | SPARE |
| MODULE3 | 10A | Console Switch SBC type (Shift By Cable type), Front View Camera (Lane Departure Warning System), ADAS Driving ECU (Advanced Driver Assistance System Driving ECU), Crash Pad Switch Gain Switch (Trailer Brake Control Switch), Front/Rear Corner Radar Floor Console Switch (SBW only), DCU (Dosing Control Unit), ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), AWD/e-LD ECU (All Wheel Drive/e-Limited Differential ECU), Clutch Pedal Front Radar (Forward Collision Avoid) |
| P/SEAT DRV1 | 30A | Driver Power Seat and Lumbar Support |
| P/SEAT DRV2 | 30A | Driver Power Seat and Lumbar Support |
| RESERVE | 10A | Not Used |
| DOOR LOCK | 20A | Door Lock/Unlock Actuator, Fuel Lid, Motor Canopy and Rollcover (AUS) |
| SPECIAL CAR(B+) | 25A | Canopy and Rollcover (AUS) |
| RESERVE | 10A | Not Used |
| START | 7.5A | BDC (Body Domain Controller), Ignition Switch, Inhibit Switch SBC (Shift By Cable type), Engine Room Junition block P/N RLY, Start signal (ECU/BDC) |
| INVERTER2 | 30A | AC Inverter ECU |
| P/WINDOW LH | 25A | Power Window Motor LH |

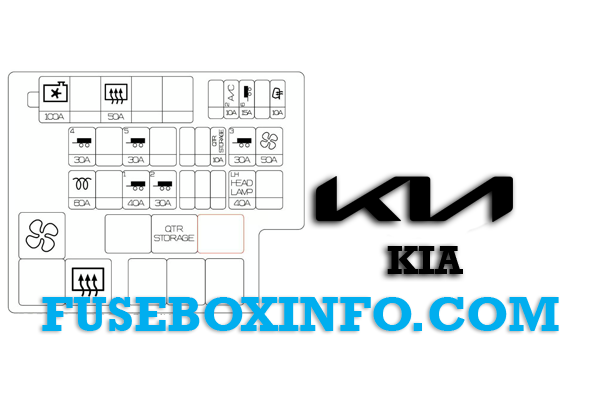

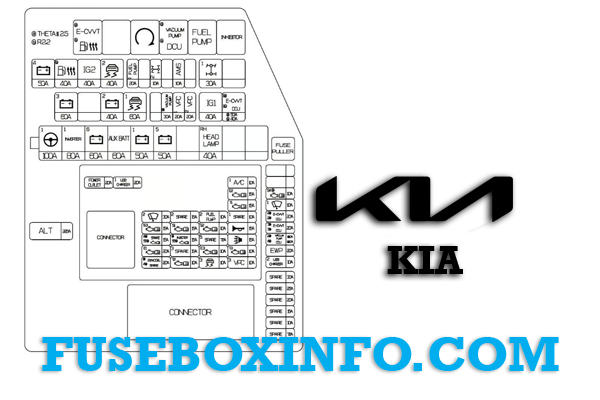

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| Engine Room Junction Block | ||
| B+ 4 | 50A | PDC (Power-net Domain Controller) - FUSE LIST : MULTIMEDIA, MEMORY 1/2, CHILD LOCK, BDC2, BRAKE SWITCH, CCU, SPECIAL CAR (B+), S/HEATER RR RH, DR LOCK, TAILGATE OPEN |
| FUEL HEATER | 40A | Fuel Heater |
| IG2 | 40A | IG2 Power |
| VDC2 | 40A | ESC/EPB (Electric Stabilty Control/Electric Parking Brake) |
| FUEL PUMP1 | 20A | Fuel Pump Motor |
| RESERVE | Not Used | |
| 4WD2 | 10A | AWD/e-LD ECU (All Wheel Drive/e-Limited Differential ECU) |
| RESERVE | Not Used | |
| AMS | 10A | Battery Sensor |
| RESERVE | Not Used | |
| 4WD1 | 30A | AWD/e-LD ECU (All Wheel Drive/e-Limited Differential ECU) |
| RESERVE | Not Used | |
| B+3 | 60A | PDC (Power-net Domain Controller) B+ - FUSE LIST : INVERTER2, P/SEAT DRV1, P/SEAT PASS1, P/WINDOW LH, P/WINDOW RH, S/HEATER FRT, MODULE7, P/SEAT DRV2, SUNROOF, P/SEAT PASS2, S/HEATER RR LH, wireless DCU, E-SHIFTER2 |
| RESERVE | Not Used | |
| B+2 | 40A | PDC (Power-net Domain Controller) - IPS (Head Lamp, Turn Signal Lamp, Tail Lamp, Brake Lamp, Back up Lamp, Front Fog Lamp) |
| VDC1 | 60A | ESC/EPB (Electric Stabilty Control/Electric Parking Brake) |
| RESERVE | Not Used | |
| VACUUM PUMP1 | 30A | Vacuum Pump |
| VPC1 | 20A | VPC (Vehicle Platform Controller) |
| VPC2 | 20A | VPC (Vehicle Platform Controller) |
| IG1 | 40A | PDC (Power-net Domain Controller) IG1 - FUSE LIST : AIR BAG1, A/BAG IND, CLUSTER, BDC1, MDPS2, MODULE2, MODULE3, MODULE4, E-SHIFTER1 ITBC (Integrated Trailer Brake Controller) PDC ACC & ERJB ACC (after ACC Relay) - PDC FUSE LIST : USB CHARGER3, MODULE1 - ERJB FUSE LIST : POWER OUTLET, USB CHARGER1 |
| DCU E-CVVT | 40/50A | DCU (Dosing Control Unit) E-CVVT (Electronic-Continuously Variable Valve Timming) |
| MDPS1 | 100A | C-MDPS (Column-Motor Driven Power Steering) |
| INVERTER1 | 80A | AC Inverter 400W |
| B+6 | 60A | PCB BLOCK Power |
| AUX BATT | 60A | P-LBM (Parking-Lithum Battery Module) |
| B+1 | 50A | PDC (Power-net Domain Controller) - IPS (Head Lamp, Turn Signal Lamp, Tail Lamp, Brake Lamp, Head Mount Stop Lamp, Dedicated DRL, Rear Fog Lamp, Interor Lamp, Steering Wheel Heated) |
| B+5 | 50A | PDC (Power-net Domain Controller) - FUSE LIST : AMP, AIR BAG2, MODULE8, SMBL |
| RESERVE | 40A | Not Used |
| HEAD LAMP RH | 40A | Head Lamp RH |
| RESERVE | 30A | Not Used |
| RESERVE | 30A | Not Used |
| RESERVE | Not Used | |
| RESERVE | Not Used | |
| SENSOR4 | 20A | GCU (Glow Control Unit), Water Temperature Sensor |
| WIPER FRT1 | 10A | Wiper |
| DCU2 E-CVVT2 | 20A | DCU (Dosing Control Unit) E-CVVT (Electronic-Continuously Variable Valve Timming) |
| DCU3 E-CVVT3 | 20A | DCU (Dosing Control Unit) E-CVVT (Electronic-Continuously Variable Valve Timming) |
| DCU4 VACUUM PUMP2 | 10A | DCU (Dosing Control Unit) Electric Vacuum Pump Power Monitoring (ESC) |
| EWP | 20A | Electric Water Pump |
| USB CHARGER2 | 10A | Console USB Chager |
| Relay(Engine Room Junction Block) | ||
|
E-CVVT FUEL HEATER |
E-CVVT (Electronic-Continuously Variable Valve Timming) Fuel Heater |
|
| RESERVE | Not Used | |
| START | Start Solenoid | |
|
VACUUM PUMP DCU |
Vacuum Pump DCU (Dosing Control Unit) |
|
| FUEL PUMP | Fuel Pump Motor | |
| INHIBITOR | P/N Relay (SBW only) | |
| PCB Block | ||
| POWER OUTLET | 20A | Power Outlet |
| USB CHARGER1 | 20A | Console USB Charger |
| WIPER FRT2 | 30A | Wiper |
| SENSOR3 | 15A | RPCV (Rail Pressure Control Valve) Fuel Heater (Relay coil) |
| SENSOR5 | 15A | Particular Matter Sensor Front/Rear NOx Sensor |
| ECU1 | 20A | Engine Control Unit |
| IGN COIL | 20A | Ignition Coil |
| SPARE2 | 15A | SPARE |
| SENSOR1 | 15A | Oxygen Sensor Up/Down High Pressure Pump |
| INJECTOR SENSOR6 | 15A | Injector Oil Pump Solenoid Valve PTC Heater High Pressure Exhaust Gas Recirculation Bypass Valve Electonic-Varible Geometry Turbochager |
| SPARE3 | 15A | SPARE |
| TCU2 | 10A | Transmission Control Unit |
| FUEL PUMP2 | 10A | Fuel Pump (Relay coil) |
| SENSOR2 | 10A | Oil Level Sensor Lambda Sensor Up/Down Purge Control Solenoid Valve Variable Oil Pump Oil Control Valve Electric Thermostat Recirculation Control Valve Cooling Fan Stop Lamp Switch Diesel Filter Heater |
| SPARE5 | 7.5A | SPARE |
| ECU3 | 10A | Engine Control Unit |
| ESC3 | 10A | ESC/EPB (Electric Stabilty Control/Electric Parking Brake) |
| A/C1 | 10A | Aircon Compressor |
| ECU2 | 15A | Engine Control Unit |
| TCU1 | 15A | Transmission Control Unit |
| SPARE1 | 10A | SPARE |
| HORN | 15A | Horn |
| B/ALARM HORN | 15A | Burglar Alarm Horn |
| TCU3 | 10A | SBW Inhibitor Switch (Relay coil) |
| VPC3 | 10A | VPC (Vehicle Platform Controller) |
| Engine Room Junction Block | ||
| COOLING FAN | 100A | Cooling Fan |
| RESERVE | 80A | Not Used |
| REAR HEATED | 50A | Rear Glass Heated |
| RESERVE | 50A | Not Used |
| RESERVE | 50A | Not Used |
| RESERVE | 10A | Not Used |
| A/C 2 | 10A | DATC (Dual Automatic Temperature Control) Blower Motor Act Sinal MTC (Manual Temperature Control) Blower Motor Act Sinal |
| TRAILER6 | 15A | ITBC (Integrated Trailer Brake Controller) |
| RESERVE | 10A | Not Used |
| HEATED MIRROR | 10A | Outside Mirror Heated |
| RESERVE | 30A | Not Used |
| RESERVE | 30A | Not Used |
| RESERVE | 30A | Not Used |
| RESERVE | 30A | Not Used |
| TRAILER4 | 25A | Trailer (Prepared) |
| TRAILER5 | 25A | Trailer (Prepared) |
| QTR STORAGE | 10A | Quarter Storage Latch |
| TRAILER3 | 30A | ITBC (Integrated Trailer Brake Controller) |
| BLOWER | 50A | Blower Motor |
| GLOW | 60A | GCU (Glow Control Unit) |
| RESERVE | 40A | Not Used |
| TRAILER1 | 40A | ITBC (Integrated Trailer Brake Controller) |
| TRAILER2 | 30A | ITBC (Integrated Trailer Brake Controller) |
| RESERVE | 15A | Not Used |
| RESERVE | 15A | Not Used |
| RESERVE | 20A | Not Used |
| HEAD LAMP LH | 40A | Head Lamp LH |
| RESERVE | 30A | Not Used |
| Relay(Engine Room Junction Block) | ||
| BLOWER | Blower Motor | |
| RESERVE | Not Used | |
| QTR STORAGE | Quarter Storage Latch | |
| RESERVE | Not Used | |
| RESERVE | Not Used | |
| REAR HEATED | Rear Glass Heated | |
| RESERVE | Not Used | |
| RESERVE | Not Used | |
| RESERVE | Not Used |
