Kia EV9 2026 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

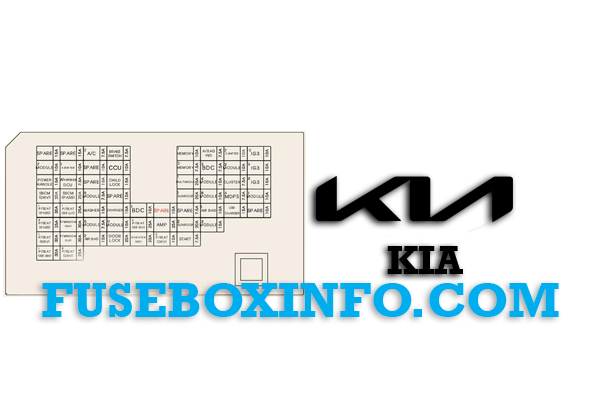

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| SPARE | 15A | Not Used |
| SPARE | 15A | Not Used |
| A/C 2 | 7.5A | DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control |
| BRAKE SWITCH | 7.5A | BDC (Body Domain Controller), Stop Lamp Switch |
| MEMORY 1 | 10A | DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control, ADAS Unit (Parking), BDC (Body Domain Controller : Parking Distance Warning Power), Mood Lamp Unit, Instrument panel Mood Lamp LH/CTR/RH, Console Mood Lamp (Upper/Lower), Driver/Passenger Door Mood Lamp, Rear Door Mood Lamp LH/RH,ADP_CONTROLLER (Acoustic Design Platform), CDCU (Chassis Domain Control Unit) |
| A/BAG IND | 7.5A | Overhead Console Lamp |
| E-SHIFTER 2 | 10A | SCU (Shift-by-wire Control Unit), Electronic ATM (Automatic Transmission) Shift Dial |
| IG3 10 | 10A | V2L_SIG (Vehicle to Load signal), ICCU (Integrated Charging Control Unit), VCMS (Vehicle Charge Management System), CCU (Central Communication Unit) |
| MODULE 7 | 10A | PTGM (Power Tail Gate Module), Rear Junction Block (Rear Blower Relay), Driver/Passenger Power Seat Module,2nd Left/Right Power Seat Module, 3rd Power Seat Control Module, Power Window Switch, Rain Sensor, CDU (Climate Display Unit), SCM (Steering Column Module), ICC_UNIT (In Cabin Cam_UNIT), M_F_SW (Multi Function Switch), OBD (On Board Diagnostics) |
| E-SHIFTER 1 | 10A | Electronic ATM (Automatic Transmission) Shift Dial |
| SPARE | 10A | Not Used |
| CCU | 10A | CCU (Central Communication Unit) |
| MEMORY 2 | 7.5A | Front Console USB Charger #1/#2, Instrument Cluster, Head-Up Display, Front Console (FPM Finger Print Module), Front Console (WPC Wireless Power Charger) |
| BDC 2 | 7.5A | BDC (Body Domain Controller) |
| MODULE 2 | 10A | CCU (Central Communication Unit), DCU (Data Connectivity Unit), Stop Lamp Switch |
| IG3 9 | 10A | DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control, CDU (Climate Display Unit), PTC (Positive Temperature Coefficient) Heater, In-car Temperature Sensor, Rear HVAC EXTN Passenger Power Seat Control Module, Rear Seat Warmer Control Module,3rd Power Seat Control Module,, Driver Seat Switch (Heater/Ventilation/Integrated memory system), Passenger Seat Switch (Heater/Ventilation), Rear Seat Switch (Heater/Ventilation) |
| POWER HANDLE | 15A | SCM (Steering Column Module) |
| Wireless DCU | 7.5A | DCU (Data Connectivity Unit) |
| SPARE | 15A | Not Used |
| CHILD LOCK | 15A | Rear LH/RH Door Power Child Lock/Unlock Motor |
| MULTIMEDIA 1 | 25A | CCNC (Connected Car Navigation Cockpit) |
| MODULE4 | 10A | CCNC (Connected Car Navigation Cockpit), ICC_UNIT (In Cabin Cam UNIT), I_S_MIRR_DCM (Digital Center Mirror), I_S_MIRR_ECM (Electronic Chromic Mirror), CDU (Climate Display Unit), Front Console (FPM Finger Print Module), Front Console (WPC Wireless Power Charger), OBD (On Board Diagnostics), ADP_CONTROLLER (Acoustic Design Processor), Driver Power Seat Switch, Driver Power Seat Module, AMP (Amplifier) |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| IG3 8 | 10A | CCNC (Connected Car Navigation Cockpit) |
| SBCM DRV | 20A | Driver Side Body zone Control Module Driver |
| SBCM PASS | 20A | Passenger Side Body zone Control Module |
| MODULE 6 | 7.5A | Head Lamp Module LH/RH |
| SPARE | 10A | Not Used |
| SUNROOF 1 | 20A | Sunroof Motor Front |
| MODULE 8 | 10A | Multi Function Switch, Driver Power Window Switch Module |
| MDPS 4 | 7.5A | MDPS (Motor Driven Power Steering) - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| MODULE 1 | 10A | AMP (Amplifier), ADP_CONTROLLER (Acoustic Design Processor), P/R Junction Block (ACC Relay), BDC (Body Domain Controller), DCU (Data Connectivity Unit), CCU (Central Communication Unit), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch, ADAS Unit (Parking), Front Console USB Charge |
| P/SEAT PASS 1 | 30A | Passenger Power Seat Switch, Passenger Power Seat Module |
| P/SEAT RR LH 1 | 25A | Rear Power Seat Switch LH, Rear Power Seat Module LH |
| WASHER | 15A | Multi Function Switch |
| CHARGER | 10A | Integrated Circuit Module (Charger Door Lock/Unlock Relay), ICCU (Integrated Charging Control Unit), VCMS (Vehicle Charge Management System) |
| BDC1 | 10A | BDC (Body Domain Controller), Ultra WideBand & Bluetooth Low Energy MASTER/SLAVE, Ultra WideBand Frunk, Ultra WideBand Front LH/RH, Ultra WideBand Rear LH/RH |
| SPARE | 7.5A | Not Used |
| SPARE | 7.5A | Not Used |
| AIR BAG1 | 10A | ACU (Airbag Control Unit), ODS (Occupant Detection System) |
| USB CHARGER | 15A | Driver/Passenger Seat USB Charger, Luggage USB Charge Connector Left Handle side/Right Handle side |
| SPARE | 10A | Not Used |
| P/SEAT PASS 2 | 25A | Passenger Power Seat Switch, Passenger Power Seat Module |
| P/WINDOW RH | 30A | Passenger Safety Power Window Module, Rear LH Safety Power Window Module |
| MODULE 5 | 7.5A | BDC (Body Domain Controller) |
| MODULE 9 | 10A | Driver/Passenger Outside Handle, Driver/Passenger Digital Side Mirror Monitor |
| P/SEAT RR RH 2 | 25A | Rear RH Relaxion Power Seat |
| AMP | 25A | AMP (Amplifier) |
| SUNROOF 2 | 20A | Sunroof Motor Rear |
| MODULE 3 | 10A | Front View Camera, ADAS Driving ECU, ADAS Unit (Parking), SCM (Steering Column Module), Driver/Passenger Digital Side Mirror Monitor, Front/Rear Inverter, Front/Rear Corner Radar LH/RH, CDCU (Chassis Domain ControlUnit) |
| P/SEAT DRV 1 | 30A | Driver Power Seat Switch, Driver Power Seat Module |
| P/WINDOW LH | 30A | Driver Safety Power Window Module, Rear RH Safety Power Window Module |
| AIR BAG 2 | 10A | ACU (Airbag Control Unit) |
| DOOR LOCK | 20A | Driver/Passenger Door Latch Motor, Rear Door Latch Motor |
| S/HEATER RR | 25A | Rear Seat Warmer Control Module |
| P/SEAT DRV 3 | 10A | Driver Power Seat Switch, Driver Power Seat Module |
| START | 7.5A | VCU (Vehicle Control Unit), BDC (Body Domain Controller) |
| P/SEAT RR RH 1 | 30A | Rear RH Power Seat Switch, Rear RH Power Seat Module |
| P/SEAT DRV 2 | 25A | Driver Power Seat Switch, Driver Power Seat Module |

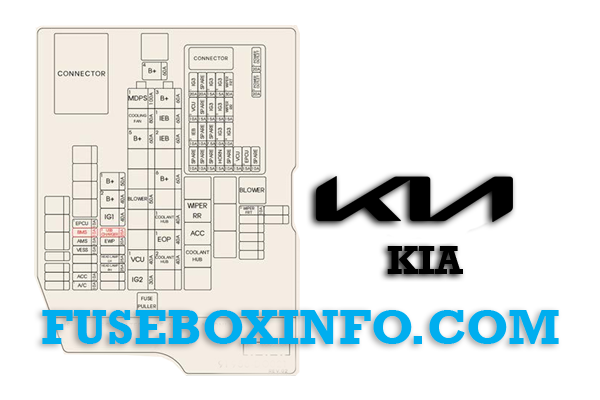

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS1 | 100A | MDPS Unit (Motor Driven Power Steering Unit) - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| COOLING FAN | 80A | Cooling Fan Motor |
| B+5 | 60A | PDC Junction Block (Fuse: AMP, CHARGER, MODULE9, P/SEAT DRV3, AIR BAG2, SUNROOF1, SUNROOF2) |
| BLOWER | 50A | P/R Junction Block (Blower Relay) |
| VCU1 | 40A | VCU (Vehicle Control Unit) |
| IG2 | 30A | PCB Block (IG2 Relay) |
| B+3 | 60A | PDC Junction Block (Fuse : P/SEAT DRV1, P/SEAT DRV2, P/SEAT PASS1, P/SEAT PASS2, P/SEAT RR LH, P/SEAT RR RH, P/WINDOW LH, P/WINDOW RH, SBCM DRV, SBCM PASS, Wireless DCU, E-SHIFTER1, POWER HANDLE, MODULE7) |
| IEB1 | 60A | IEB UNIT (Integrated Electronic Brake Module) |
| IEB2 | 60A | IEB UNIT (Integrated Electronic Brake Module) |
| B+6 | 60A | PCB Block (IG3 Main Relay, Fuse: EPCU2, VCU2, HORN, B/ALARM) |
| COOLANT HUB1 | 40A | Coolant Hub Driver Unit |
| EOP1 | 40A | Front Electric Oil Pump |
| COOLANT HUB2 |
40A | Coolant Hub Driver Unit |
| B+1 | 50A | PDC Junction Block (IPS1, IPS4, IPS5, IPS6, IPS7) |
| B+2 | 40A | PDC Junction Block (IPS11, IPS12) |
| B+4 | 60A | PDC Junction Block (Long Term Latch Relay, IPS13, Fuse : MULTIMEDIA1, MEMORY1, MEMORY2, CHILD LOCK, BDC1, BRAKE SW, CCU, S/HEATER RR, P/.SEAT RR RH, DR LOCK, TAILGATE OPEN) |
| IG1 | 40A | PCB Block (IG2 Relay) |
| EPCU1 | 10A | Rear Inverter |
| AMS | 10A | 12V Battery Sensor |
| VESS | 10A | Virtual Engine Sound System |
| ACC | 10A | P/R Junciton Block (ACC Relay) |
| EWP | 20A | Electronic Water Pump |
| A/C1 | 10A | Air Conditioning |
| HEAD LAMP RH | 25A | Head Lamp Module RH |
| BATTERY MANAGEMENT | 10A | BMU |
| HEAD LAMP LH | 25A | Head Lamp Module LH |
| WIPER FRT2 | 10A | BDC (Body Domain Controller) |
| USB CHARGER | 25A | USB Charger |
| EPCU2 | 15A | Front Inverter |
| VCU2 | 15A | VCU (Vehicle Control Unit) |
| IG3 1 | 20A | PDC Junction Block (IG3_8, IG3_9, IG3_10) |
| IG3 2 | 15A | SCU (Shift-by-wire Control Unit), Front Inverter |
| IG3 3 | 15A | Electronic Water Pump |
| IG3 4 | 10A | Cooling Fan Motor, Front Electric Oil Pump, Rear Electric Oil Pump |
| IG3 5 | 15A | Electric Compressor, 3way Valve, P/R Junction Block (Coolant Hub Driver Unit) |
| IG3 6 | 10A | VCU (Vehicle Control Unit) |
| IG3 7 | 15A | Rear inverter, BMU |
| HORN | 15A | HORN |
| B/ALARM HORN |
15A | Burglar alarm Horn |
| WIPER FRT1 | 30A | PCB Block (Wiper Main Relay) |
| WIPER RR | 15A | P/R Junction Block (Rear Wiper Relay) |
| POWER OUTLET1 | 20A | Front Power Outlet (Console) |
| POWER OUTLET2 | 20A | Rear Power Outlet (Luggage Side LH) |
| IEB3 | 10A | IEB UNIT (Integrated Electronic Brake Module) |
| VCU3 | 10A | VCU (Vehicle Control Unit) |
| Battery fuse panel: | ||
| LDC | 225A | LDC |
