Kia K5 2023 Fuse Box Info

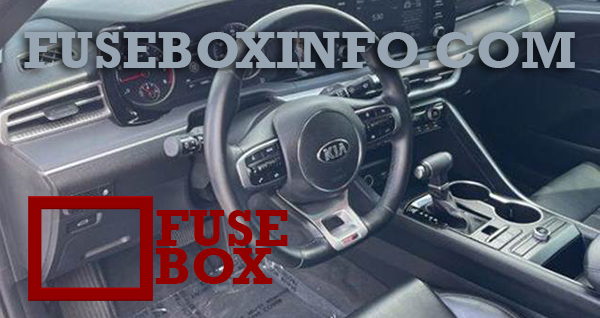

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

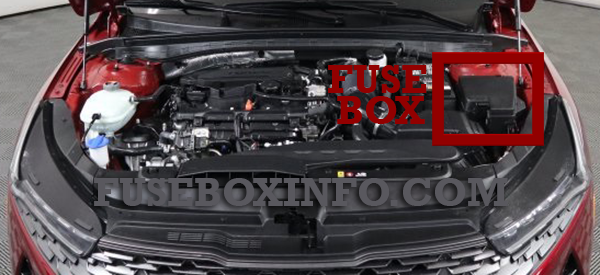

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| S/HEATER (FRT) | 25A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| TRUNK | 10A | Trunk Lid Relay |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay |
| MODULE1 | 7.5A | Front Console Switch #1, Key Solenoid, Driver/Passenger Smart Key Outside Handle |
| CHILD LOCK | 15A | Rear Child Lock Relay, Rear Child Unlock Relay |
| MODULE3 | 10A | Hazard Switch, Front Mood Lamp Right Handle side, Front Mood Lamp Unit, Driver Door Module, Driver/Passenger Door Mood Lamp |
| S/HEATER (RR) | 25A | Rear Seat Warmer Control Module |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| MODULE6 | 10A | Sport Mode Switch, Driver Door Module |
| SAFETY P/WINDOW (RH) | 30A | Passenger Power Window Switch, Passenger Safety Power Window Module, Rear Power Window Switch Right Handle side, Rear Safety Power Window Module Right Handle side |
| P/SEAT (DRV) | 30A | Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module |
| IBU1 | 15A | Ignition Switch, IBU (Integrated Body Control Unit) |
| IAU | 10A | Not Used |
| AMP | 25A | DC-DC Converter (AMP (Amplifier)), AMP (Amplifier) |
| SAFETY P/WINDOW (LH) | 30A | Driver Safety Power Window Module, Rear Power Window Switch Left Handle side, Rear Safety Power Window Module Left Handle side |
| SPARE1 | 15A | Not Used |
| BRAKE SWITCH | 10A | IBU (Integrated Body Control Unit), Stop Lamp Switch |
| SUNROOF2 | 20A | Sunroof Controller (Blind Motor), Data Link Connector |
| AIR BAG2 | 10A | SRS (Supplemental Restraint System) Control Module |
| AIR BAG1 | 15A | SRS (Supplemental Restraint System) Control Module |
| MEMORY | 10A | Head-up Display, Driver IMS (Integrated memory system) Module, Driver/ Passenger Power Outside Mirror, Rain Sensor, Instrument Cluster, Air Conditioner Control Module, Air Conditioner Switch |
| MULTI MEDIA | 15A | DC-DC Converter (Audio), Audio, Audio/Video & Navigation Head Unit |
| SUNROOF1 | 20A | Sunroof Controller (Glass Motor) |
| MODULE7 | 10A | Audio/Video 4WD (4 Wheel Drive) ECU (Engine Control Unit), Front Console Switch #1/#2, Front View Camera, IBU (Integrated Body Control Unit), Crash Pad Switch, ADAS Parking ECU |
| MDOULE5 | 10A | Stop Lamp Switch |
| MODULE8 | 10A | AMP (Amplifier), Driver IMS (Integrated memory system) Module, Front Wireless Charger, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, ATM (Automatic Transmission) Shift Lever Indicator, Data Link Connector, Audio, Audio/Video & Navigation Head Unit, Air Conditioner Switch, Surround View Monitor Unit, Air Conditioner Control Module, DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror |
| MODULE2 | 10A | Cooling Fan Motor, ADAS Parking ECU, Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Engine Room Junction Block (W/S Heated Glass Left Handle side/Right Handle side Relay) |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit (Column Type) |
| A/C1 | 7.5A | Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay) |
| MODULE4 | 10A | Rear USB Charger, PCB Block (Power Outlet Relay), Console USB Charger (Outside Rear Left Handle side/Right Handle side), Console USB Charger (Inside), AMP (Amplifier), IBU (Integrated Body Control Unit), DC-DC Converter (Audio/AMP (Amplifier)), Audio, Audio/Video & Navigation Head Unit, Surround View Monitor Unit, ADAS Parking ECU |
| MODULE9 | 7.5A | IBU (Integrated Body Control Unit) |
| CLUSTER | 10A | Instrument Cluster, Head-up Display |
| WASHER | 15A | Multifunction Switch |
| START | 7.5A | B/Alarm Relay, IBU (Integrated Body Control Unit), ECM (Engine Control Module), Transmission Range Switch, Engine Room Junction Block (Start Relay) |
| POWER OUTLET | 20A | Not Used |
| IBU2 | 7.5A | IBU (Integrated Body Control Unit) |
| A/BAG IND | 7.5A | Instrument Cluster, Overhead Console Lamp |
| SPARE2 | 10A | Not Used |
| A/C2 | 10A | Air Conditioner Control Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| IG2 | 30A | Engine Room Junction Block (Start Relay), PCB Block (Ignition switch2 Relay) |
| BLOWER | 40A | Engine Room Junction Block (Blower Relay) |
| ABS1 | 40A | ESC (Electronic Stability Control) Module |
| B+2 | 50A | ICU Junction Block (Instrument Panel Module1, Instrument Panel Module3, Instrument Panel Module4, Fuse - AMP (Amplifier), IBU (Integrated Body Control Unit)1) |
| B+3 | 50A | ICU Junction Block (Instrument Panel Module5, Instrument Panel Module6, Instrument Panel Module7, Instrument Panel Module8, Instrument Panel Module9, Instrument Panel Module10, Instrument Panel Module11) |
| B+1 | 50A |
ICU Junction Block (Fuse - P/SEAT(Driver), P/ SEAT(PASS), CHILD LOCK, MODULE1, S/HEATER(RR), SAFETY P/WINDOW(Left Handle side), SAFETY P/WINDOW(Right Handle side) |
| COOLING FAN | 80A | Cooling Fan Motor |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit |
| CVVD1 | 30A | [Smartstream G 1.6 T-GDi] CVVD Actuator |
| E-CVVT1 | 40A | [Smartstream G 2.5 T-GDi] Engine Room Junction Block (E-CVVT Relay) |
| IG1 | 40A | PCB Block (Ignition switch1 Relay, ACC Relay) |
| REAR HEATED | 50A | Engine Room Junction Block (Rear Heated Relay) |
| EPB | 60A | ESC (Electronic Stability Control) Module |
| B+5 | 60A | PCB Block (Engine Control Relay, Fuse - Air Conditioner1, WIPER1, TCU (Transmission Control Unit)1, HORN, ECU (Engine Control Unit)2) |
| OIL PUMP1 | 60A | [Smartstream G 1.6 T-GDi] Electronic Oil Pump |
| OIL PUMP | 60A | [Smartstream G 2.5 T-GDi] Electronic Oil Pump |
| POWER OUTLET1 | 40A | PCB Block (Power Outlet Relay) |
| W/S HEATED GLASS RH | 40A | W/S Heated Glass Right Handle side Relay |
| W/S HEATED GLASS LH | 40A | W/S Heated Glass Left Handle side Relay |
| TCU5 | 60A | [Smartstream G 2.5 T-GDi] TCM (Transmission Control Module) |
| B+4 | 60A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - MODULE3, AIR BAG2, SUNROOF1, SUNROOF2, S/HEATER (FRT), TRUNK, BRAKE SWITCH, DOOR LOCK) |
| ECU5 | 10A | [Smartstream G 1.6 T-GDi] ECM (Engine Control Module) |
| AMS | 10A | Battery Sensor |
| VACUUM PUMP1 | 20A | [Smartstream G 2.5 T-GDi] Vacuum Relay |
| 4WD | 20A | [Smartstream G 1.6 T-GDi] Audio/Video 4WD (4 Wheel Drive) ECU (Engine Control Unit) |
| FUEL PUMP1 | 20A | Engine Room Junction Block (Fuel Pump Relay) |
| VACUUM PUMP2 | 10A | [Smartstream G 2.5 T-GDi] ESC (Electronic Stability Control) Module |
| E-CVVT3 | 20A | [Smartstream G 2.5 T-GDi] ECM (Engine Control Module) |
| HEATED MIRROR | 10A | Air Conditioner Switch |
| E-CVVT4 | 20A | [Smartstream G 2.5 T-GDi] ECM (Engine Control Module) |
PCB Block: Smartstream G1.6 T-GDi
| Fuse/Relay Name | Rating | Functions |
| WIPER1 | 30A | PCB Block (Wiper Relay) |
| WIPER2 | 10A | IBU (Integrated Body Control Unit), ECM (Engine Control Module) |
| TCU1 | 20A | TCM (Transmission Control Module) |
| ECU2 | 15A | ECM (Engine Control Module) |
| ECU1 | 20A | ECM (Engine Control Module) |
| ECU4 | 15A | ECM (Engine Control Module) |
| TCU2 | 15A | TCM (Transmission Control Module), Transmission Range Switch |
| A/C1 | 10A | Engine Room Junction Block (Air Conditioner Relay) |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| OIL PUMP2 | 10A | Electronic Oil Pump |
| CVVD2 | 10A | CVVD Actuator |
| POWER OUTLET2 | 20A | Front Power Outlet Left Handle side |
| POWER OUTLET3 | 20A | Front USB Charger |
| HORN | 20A | PCB Block (Horn Relay) |
| SENSOR2 | 10A | Oil Control Valve (Intake/Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (Air Conditioner Relay) |
| FUEL PUMP2 | 10A | Engine Room Junction Block (Fuel Pump Relay) |
| ECU3 | 10A | ECM (Engine Control Module) |
| ABS3 | 10A | ESC (Electronic Stability Control) Module |
| IGN COIL | 20A | Ignition Coil #1 ~ #4 |
| CRUISE | 10A | Front Radar |
PCB Block: Smartstream G2.5 T-GDi
| Fuse/Relay Name | Rating | Functions |
| WIPER1 | 30A | PCB Block (Wiper Relay) |
| WIPER2 | 10A | IBU (Integrated Body Control Unit), ECM (Engine Control Module) |
| TCU1 | 20A | Not Used |
| ECU2 | 15A | ECM (Engine Control Module) |
| ECU1 | 20A | ECM (Engine Control Module) |
| ECU4 | 15A | ECM (Engine Control Module) |
| TCU2 | 15A | TCM (Transmission Control Module) |
| A/C1 | 10A | Engine Room Junction Block (Air Conditioner Relay) |
| INJECTOR | 15A | Injector #1 ~ #4 |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| POWER OUTLET2 | 20A | Front Power Outlet Left Handle side |
| POWER OUTLET3 | 20A | Front USB Charger |
| HORN | 20A | PCB Block (Horn Relay) |
| SENSOR2 | 10A | Oil Control Valve (Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (Air Conditioner Relay) |
| FUEL PUMP2 | 10A | Engine Room Junction Block (Fuel Pump Relay) |
| ECU3 | 10A | ECM (Engine Control Module) |
| ABS3 | 10A | ESC (Electronic Stability Control) Module) |
| IGN COIL | 20A | Ignition Coil #1 ~ #4 |
| CRUISE | 10A | Front Radar |
