Kia Cadenza 2014 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

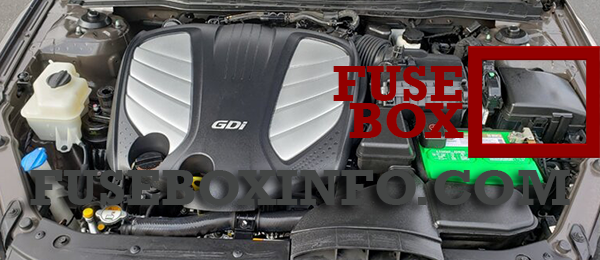

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° and Name | Rating | Functions |
| 1. MODULE 2 | 10A | Tilt & Telescopic Module, Instrument cluster, Driver/Passenger Seat Warmer Module, Rear Seat Warmer Module LH/RH, IMS Control Module, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor LH/RH(Center), Driver/Passenger Door Module, LDWS Camera Module, Electro Chromic Mirror, Room Lamp, MTS Module, Driver/Passenger CCS Control Module, Head Lamp Leveling Device Switch, Auto Head Lamp Leveling Device Module, Front Parking Assist Sensor LH/RH, Head Lamp Leveling Device Actuator LH/RH, Console SW, BSD (Blind Spot Detection) Unit LH/RH Rear P/WDW HEATED Module |
| 2. PDM 3 | 10A | PDM, Smart Key Control Module |
| 3. HTD MRR | 10A | Driver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module |
| 4. MEMORY 1 | 10A | Auto Light & Photo Sensor, Data Link Connector, Driver/Passenger Foot Lamp, Instrument Cluster, Digital Clock, Rear Curtain Module, A/C Control Module, Room Lamp, Driver/Passenger Door Module |
| 5. MULTI MEDIA | 15A | MTS Module, Audio, A/V & Navigation Head Unit, Audio Monitor |
| 6. MDPS | 10A | MDPS_SIG |
| 7. MEMORY 2 | 10A | RF Receiver |
| 8. SPARE | 15A | SPARE |
| 9. SPARE | 10A | SPARE |
| 10. SPARE | 15A | SPARE |
| 11. S/HEATER FRT | 20A | Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module |
| 12. A/BAG IND | 10A | Instrument Cluster |
| 13. HTD STRG | 15A | Steering Wheel Heater |
| 14. CURTAIN | 10A | Rear Curtain Module, Driver/Passenger Door Module |
| 15. P/SEAT PASS | 20A | Passenger Manual Switch |
| 16. AMP | 25A | AMP |
| 17. P/WDW RH | 25A | Passenger Door Module, Rear Power Window Switch RH |
| 18. P/WDW LH | 25A | Driver Safety Power Window Switch, Rear Power Window Switch LH |
| 19. A/BAG | 15A | SRS Control Module |
| 20. A/CON | 10A | Ionizer, Ionizer (IND.), A/C Control Module, E/R Fuse & Relay Box (RLY. 14) |
| 21. AUDIO | 10A | Smart Key Control Module, Rear Audio Switch, Amp, Audio Monitor, Overhead Console Lamp Switch, PDM, MTS Module, Audio, A/V & Navigation Head Unit, digital clock |
| 22. INTERIOR LAMP | 10A | Garnish Lamp LH/RH/Conter, Room Lamp, Driver/Passenger Vanity Lamp Switch, Overhead Console Lamp Switch, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Scuff Lamp, Driver/Passenger Door Lamp, Trunk Room Lamp |
| 23. SUNROOF | 20A | Panorama Sunroof |
| 24. TRUNK | 10A | Fuel Filler Door Switch, Trunk Lid Relay |
| 25. S/HEATER RR | 10A | Rear Seat Warmer Module LH/RH |
| 26. MODULE 3 | 10A | ESP Control Module, ABS Control Module, Electric Parking Brake Module, Steering Angle Sensor, ESP Off Switch, Console Switch |
| 27. MODULE 1 | 10A | PDM, ICM Relay Box (Head Lamp Washer Relay), Panorama Sunroof, Rear Curtain Module, Driver Active Seat Module, Rain Sensor |
| 28. POWER OUTLET | 15A | Console Power Outlet |
| 29. PDM | 25A | Smart Key Control Module, Fob Holder |
| 30. P/HANDLE | 15A | Key Solenoid, Tilt & Telescopic Module, Sport Mode Switch |
| 31. BRAKE SWITCH | 10A | PDM, Start Stop Button Switch |
| 32. DR/LOCK | 20A | Driver Door Module |
| 33. IG1 | 20A | E/R Fuse & Relay Box (F12 15A, F11 10A, F10 10A) |
| 34. WIPER | 25A | E/R Fuse & Relay Box (RLY. 11, RLY.12), Front Wiper Motor, Multifunction Switch |
| 35. C/Lighter | 20A | Front Cigarette Lighter |
| 36. START | 10A | Transaxle Range Switch, PCM |
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. 2 B+ | 60A | IPM (F7, F8, F9, F10, F11, IPS1, IPS2, IPS3, IPS5, IPS7) |
| 2. 3 B+ | 60A | IPM (F14, F15, F17, F18, F25) |
| 3. IG1 | 40A |
W/O Smart Key : Ignition Switch With Smart Key : E/R Fuse & Relay Box (RLY. 1, RLY. 9) |
| 4. 1 ABS | 40A | ABS Control,ESP Control |
| 5. RR HTD | 40A | E/R Fuse & Relay Box (RLY. 2) |
| 6. BLOWER | 40A | E/R Fuse & Relay Box (RLY. 14) |
| 7. 4 B+ | 60A | IPM (F4, F5, IPS 0, IPS 4, IPS 6) |
| 8. MDPS | 80A | MDPS_PWR |
| 9. A/CON | 10A | A/C Control Module |
| 10. STOP LAMP | 10A | E/R Fuse & Relay Box (RLY. 8), Stop Lamp Switch, Multipurpose Check Connector |
| 11. IG1 | 10A | Alternator, PCM |
| 12. T2TCU | 15A | Transaxle Range Switch |
| 13. IDB | 10A | IDB_LAG |
| 14. IG2 | 30A | W/O Smart Key : E/R Fuse & Relay Box (RLY. 3), Ignition Switch With Smart Key : E/R Fuse & Relay Box (RLY. 3, RLY. 10) |
| 15. C/FAN | 50A | E/R Fuse & Relay Box (RLY. 4, RLY. 5) |
| 16. 1 EPB | 30A | Electric Parking Brake Module |
| 17. 3 ECU | 40A | EMS Box (F35, F36, F37, F38) |
| 18. 2 ABS | 30A | ABS Control, ESP Control |
| 19. 2 EPB | 30A | Electric Parking Brake Module |
| 20. WIPER | 10A | IPM (IPS Control Module) |
| 21. B/UP LAMP | 10A | MTS Module, A/V & Navigation Head Unit, Rear Curtain Module, Electro Chromic Mirror, Rear Combination Lamp(In) LH/RH |
| 22. AMS | 10A | Not Used |
| 23. - | 20A | ICM Relay Box (Head Lamp Washer Realy) |
| 24. 1 TCU | 20A | PCM |
| 25. 1 STOP LAMP | 15A | E/R Fuse & Relay Box (RLY. 12), Stop Lamp Switch, Stop Lamp Signal Relay |
| 26. DEICER | 20A | E/R Fuse & Relay Box (RLY. 7) |
| 27. CRUISE | 10A | SCC (Smart Cruise Control) Radar |
| 28. P/SEAT (DRV) | 30A | IMS Control Module, Driver Lumbar Support Switch, Driver Cushion Extension Switch, Driver Manual Switch |
| 29. 1 B+ | 40A | IPM (F29, F30, F31, F32, IPS 11, Leak Current Autocut Device) |
| 30. IGN COIL | 20A |
G4KE : Ignition Coil #1, #2, #3, #4, Condenser G6DC : Ignition Coil #1, #2, #3, #4, #5, #6, Condenser #1, #2 |
| 31. 1 SENSOR | 15A |
G4KE : Immobilizer Module, Camshaft Position Sensor #1, #2, Variable Intake Manifold Valve, Crankshaft Position Sensor, Oil Control Valve #1, #2, Canister Purge Control Solenoid Valve G6DC : PCM, Immobilizer Module, Oxygen Sensor #1, #2, #3, #4 |
| 32. 2 SENSOR | 15A |
G4KE : E/R Fuse & Relay Box (RLY. 5),Oxygen Sensor (Up, Down) G6DC : Variable Intake Manifold Valve #1, #2, PCM, E/R Fuse & Relay Box (RLY. 5), Oil Control Valve #1, #2,#3, #4, Canister Purge Control Solenoid Valve, |
| 33. INJECTOR | 15A |
G4KE : Injector #1, #2, #3, #4 G6DC : Injector #1, #2, #3, #4, #5, #6, PCM |
| 34. F/FUMP | 20A | E/R Fuse & Relay Box (RLY. 16) |
| 35. 2 ECU | 10A | PCM |
| 36. HORN | 15A | E/R Fuse & Relay Box (RLY. 13), EMS Box (RLY. 15) |
| 37. 1 ECU | 30A | EMS Box (RLY. 17) |
