Kia Cadenza 2019 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

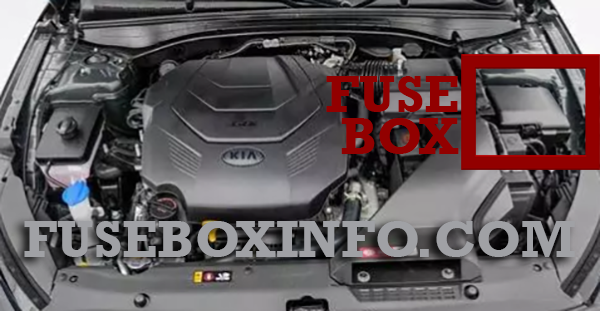

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| MODULE 7 | 10A | Driver Door Module, Passenger Door Module |
| SPARE | 10A | Spare |
| MODULE 3 | 10A | Stop Lamp Switch, BCM (Body Control Module), Sports Mode Switch |
| MODULE 5 | 10A | Console Switch, Blind Spot Detection Radar Left Handle side/Right Handle side, BCM (Body Control Module), Smart Cruise Control Unit, Crash Pad Switch, Fuel Filler & Trunk Open Switch, Lane Departure Warning Unit, Steering Tilt & Telescopic Module |
| IG1 | 25A | PCB (Printed Circuit Board) Block |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit |
| MODULE 6 | 10A | Air Conditioner Switch, Air Conditioner Control Module, Electro Chromic Mirror, Head Lamp Left Handle side/Right Handle side, Auto Head Lamp Leveling Device Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Rear Seat Warmer Control Module, Audio/Video & Navigation Head Unit, Driver Integrated memory system Module, Auto Transmission Shift Lever Indicator, Multipurpose Check Connector |
| CLUSTER | 10A | Instrument Cluster, Head-Up Display |
| AIR BAG | 15A | SRS (Supplemental Restraint System) Control Module |
| MULTIMEDIA 1 | 20A | IGPM (Integrated Gateway Power control Module), Audio/Video & Navigation Head Unit |
| A/BAG IND | 7.5A | Air Conditioner Switch, Instrument Cluster |
| MODULE 4 | 10A | Smart Key Control Module, Immobilizer Module |
| SPARE 2 | 10A | Spare |
| A/CON | 7.5A | Air Conditioner Switch, Air Conditioner Control Module, Ionizer, Engine Room Junction Block (Blower Relay) |
| MEMORY 1 | 10A | Head-Up Display, Instrument Cluster, Wireless Charger Unit , Analog Clock, BCM (Body Control Module), Rain Sensor, Driver Door Module, Power Trunk Module, Passenger Door Module, Air Conditioner Switch, Air Conditioner Control Module, Security Indicator |
| MEMORY 2 | 15A | Driver Door Module |
| MEMORY 3 | 10A | Passenger Door Module |
| START | 7.5A | Transaxle Range Switch, ECM (Engine Control Module) |
| HEATED STEERING | 15A | BCM (Body Control Module) |
| MODULE 9 | 7.5A | Surround View Unit, Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| WASHER | 15A | Multifunction Switch |
| INTERIOR LAMP | 10A | Glove Box Lamp, Passenger Foot Lamp, Driver Foot Lamp, Trunk Room Lamp, Front Vanity Lamp Switch Left Handle side/Right Handle side, Overhead Console Lamp, Room Lamp, Rear Personal Lamp Left Handle side/Right Handle side |
| DOOR LOCK | 20A | Door Lock/Unlock Relay |
| S/HEATER (FR) | 25A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| SMART KEY 2 | 10A | Start/Stop Button Switch |
| BRAKE SWITCH | 10A | Stop Lamp Switch, Immobilizer Module, Smart Key Control Module |
| AMP | 30A | AMP (Amplifier) |
| P/WINDOW (RH) | 25A | Passenger Safety Power Window Module, Rear Power Window Switch Right Handle side |
| SUNROOF 1 | 20A | Sunroof Control Unit (Glass) |
| TRUNK | 10A | Trunk Relay, Fuel Filler & Trunk Open Switch, Engine Room Junction Block(Fuel Lid Relay) |
| MULTIMEDIA 2 | 10A | Front Monitor |
| POWER TRUNK | 30A | Power Trunk Module |
| S/HEATER (RR) | 25A | Rear Seat Warmer Control Module |
| SPARE 1 | 10A | Spare |
| P/WINDOW (LH) | 25A | Rear Power Window Switch Left Handle side, Driver Safety Power Window Module |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| SUNROOF 2 | 20A | Sunroof Control Unit (Roller) |
| POWER HANDLE | 15A | Steering Tilt & Telescopic Module |
| B/ALARM HORN | 10A | Burglar Alarm Horn Relay |
| SMART KEY 1 | 15A | Smart Key Control Module |
| MODULE 1 | 7.5A | Data Link Connector, Hazard Switch, Console Switch |
| P/SEAT (DRV) | 30A | Driver Seat Manual Switch, Driver Integrated memory system Module |
| POWER OUTLET | 20A | Front Power Outlet, Rear Power Outlet |
| MODULE 2 | 10A | AMP (Amplifier), Surround View Unit, BCM (Body Control Module), Air Conditioner Control Module, Analog Clock, Wireless Charger Unit, Air Conditioner Switch, Smart Key Control Module, Front Monitor, Audio/Video & Navigation Head Unit, Engine Room Junction Block(Power Outlet Relay), USB Charger |
| SPARE | 10A | Spare |
| MODULE 8 | 7.5A | BCM (Body Control Module), Smart Key Control Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS (Motor Driven Power Steering) UNIT |
| B+2 | 60A | IGPM (Integrated Gateway Power control Module) |
| BLOWER | 50A | Blower Relay |
| B+3 | 50A | IGPM (Integrated Gateway Power control Module) |
| REAR HEATED | 50A | Rear Heated Relay |
| ABS1 | 40A | ESC (Electronic Stability Control) Module |
| IG2 | 30A |
Without Smart Key : Start Relay, Ignition Switch With Smart Key : Start Relay |
| B+5 | 80A | WIPER1, HORN, ECU2, FUEL PUMP, Engine Control Relay |
| B+1 | 60A | IGPM (Integrated Gateway Power control Module) |
| COOLING FAN2 | 60A | Cooling Fan1 Relay, Cooling Fan2 Relay |
| B+4 | 50A | IGPM (Integrated Gateway Power control Module) |
| POWER OUTLET1 | 40A | Power Outlet Relay |
| IG1 | 40A |
Without Smart Key : Ignition Switch With Smart Key : Ignition switch 1, ACC Relay |
| ABS2 | 30A | ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector |
| TCU1 | 15A | TCM (Transmission Control Module) |
| CRUISE | 10A | Smart Cruise Control Unit |
| AMS | 10A | Battery Sensor |
| DEICER | 20A | Front Deicer Relay |
| A/CON | 10A | Air Conditioner Control Module |
| WIPER2 | 10A | BCM (Body Control Module), ECM (Engine Control Module) |
| HEATED MIRROR | 10A | Air Conditioner Switch, Driver/Passenger Power Outside Mirror |
| ECU3 | 10A | ECM (Engine Control Module) |
| POWER OUTLET2 | 20A | Front Power Outlet & Cigarette Lighter |
| HORN | 20A | Horn Relay |
| WIPER1 | 30A | Wiper Power Relay |
| TCU2 | 15A | TCM (Transmission Control Module), Transaxle Range Switch |
| ABS3 | 10A | ESC (Electronic Stability Control) Module |
| POWER OUTLET3 | 20A | Not Used |
| B/UP LAMP | 10A | Electro Chromic Mirror, Rear Combination Lamp (Inside) Left Handle side/Right Handle side |
| SENSOR1 | 15A | Oxygen Sensor #1~#4 |
| IGN COIL | 20A | Ignition Coil #1~#6 |
| ECU2 | 10A | ECM (Engine Control Module) |
| FUEL PUMP | 20A | Fuel Pump Relay |
| ECU1 | 20A | ECM (Engine Control Module) |
| INJECTOR | 15A | Not Used |
| SENSOR2 | 10A | Variable Intake Solenoid Valve #1, #2, Electronic Thermostat, Purge Control Solenoid Valve, Canister Close Valve, Oil Pressure Solenoid Valve, Oil Control Valve #1~#4, Cooling Fan1 Relay, Cooling Fan2 Relay, Fuel Pump Relay |
