Jeep Grand Cherokee / Grand Cherokee L 2025 Fuse Box Info
Passenger compartment fuse box location:

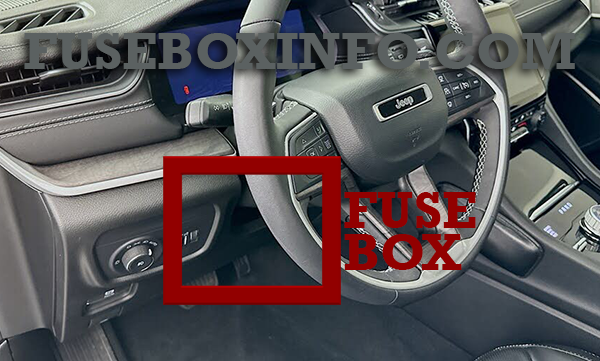

The Interior Power Distribution Center is located underneath the steering column on the driver’s side of the vehicle (Gasoline Engine, Hybrid). The Rear Power Distribution Center is located underneath the passenger seat (Gasoline Engine).

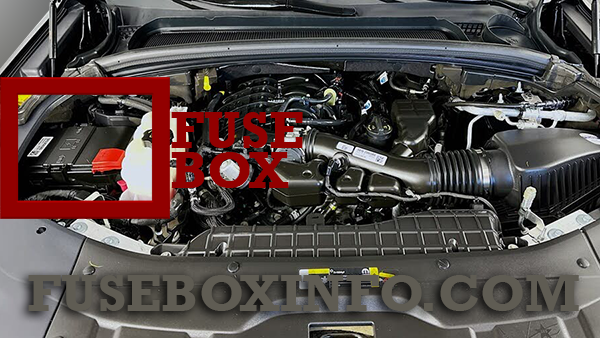

Engine compartment fuse box location (Gasoline Engine, Hybrid):

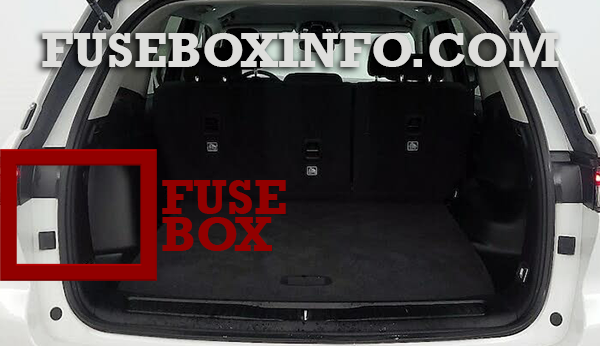

Luggage compartment fuse box location (Hybrid):

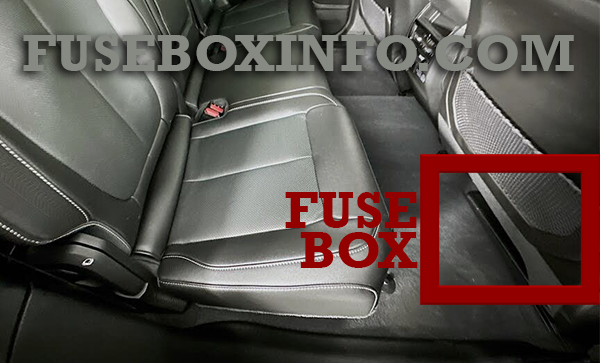

The Rear Power Distribution Center is located under the left rear quarter trim panel in the rear cargo area (Hybrid).
Fuse Box Diagram | Layout
Passenger compartment fuse box (Interior Power Distribution Center - Under the steering column) - Gasoline Engine:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | 25A | MTR Sunshade Sunroof Dual Pane / MTR sunroof single Panel |
| 03 | 15A | MOD Seat Heater Frt (Steering Wheel)* |
| 04 | 10A | Night Vision Module / Driver Monitoring Camera (DMC) |
| 05 | - | Spare |
| 06 | - | Spare |
| 07 | - | Spare |
| 08 | 15A | Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock |
| 09 | - | Spare |
| 10 | 40A | HVAC Blower Motor |
| 11 | - | Spare |
| 12 | 20A | Assy Cigar Lighter |
| 13 | 10A | Assy Mirror Inside Rearview / Digital TV (DTV)*/ Sunroof Single - Dual Pane / Port UC1 Dual USB RR / Interior Monitoring Camera |
| 14 | - | Spare |
| 15A | - | Spare |
| 15B | - | Spare |
| 16 | 10A | MOD ORC |
| 17 | - | Spare |
| 18 | - | Spare |
| 19 | - | Spare |
| 20 | 10A | Overhead Console Assy (OHC) W/Sunshade / Intrusion Module / Intrusion Sensor / Siren / Head Up Display (HUD) / Digital TV (DTV)* |
| 21 | 30A | Trailer Tow Electric Brake - Aftermarket |
| 22 | - | Spare |
| 23 | - | Spare |
| 24 | - | Spare |
| 25 | - | Spare |
| 26 | - | Spare |
| 27 | - | Spare |
| 28 | - | Spare |
| 29 | - | Spare |
| 30 | - | Spare |
| 31 | - | Spare |
| 32 | 15A | MOD ICS Switch Bank / SW Bank Upper / SW EPB / Aux Switch Bank Module (ASBM) |
| 33 | 15A | Transfer case SW / Humidity Rain Light Sensor (HRLS) / Suspension SW* |
| 34 | - | Spare |
| 35 | 10A | IRCAM Heater |
| 36 | - | Spare |
| 37 | - | Spare |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | - | Spare |
| 41A | 10A | MOD Occupant Class / Steering Column Lock |
| 41B | 10A | Spare |
| 42A | 10A | Parktronics System MOD (PTS) / MOD Haptic Lane Feedback / Trailer Tow Module |
| 42B | 10A | MOD HVAC Control / Frt ERC Motor Ctrl / RR ERC Motor Ctrl |
| 43A | - | Spare |
| 43B | - | Spare |
| 44 | 15A | MOD Cluster CCN / MOD SGW (Cybersecurity) |
| 45 | - | Spare |
| 46 | - | Spare |
| 47A | - | Spare |
| 47B | - | Spare |
| 48A | - | Spare |
| 48B | - | Spare |
| 49 | 7.5A | MOD RF HUB / Module Ignition (MD KIN) |
| 50A | 10A | Telematics Box Module (TBM) / MOD Front Passenger Display Module (FPDM) / MOD DCSD* |
| 50B | 10A | Port Diagnostics 1 & 2 |
| 51A | - | Spare |
| 51B | - | Spare |
| 52 | - | Spare |
| 53 | 20A | MOD CMCM (Radio) |
| 54A | - | Spare |
| 54B | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | - | Spare |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | - | Spare |
| 62A | - | Spare |
| 62B | - | Spare |
| 63A | 15A | Media HUB #1 Frt / Port UC1 Dual USB Frt / Wireless Charging Pad MOD (WCPM) |
| 63B | 15A | Not Populated |
| 64A | 10A | MOD ORC |
| 64B | 10A | Steering Column Control Module (SCCM) |
| 65 | 5A | MOD SGW (Cybersecurity) |
| 66 | - | Spare |
| CB1 | - | Spare |
| CB2 | - | Spare |
| CB3 | - | Spare |
| CB4 | - | Spare |
| CB5 | - | Spare |
| CB6 | - | Spare |
* If Equipped
Passenger compartment fuse box (Interior Power Distribution Center - Under the steering column) - Hybrid:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | 25A | MTR Sunshade Sunroof Dual Pane / MTR sunroof single Panel |
| 03 | 15A | MOD Seat Heater Frt (Steering Wheel)* |
| 04 | 10A | Night Vision Module / Driver Monitoring Camera (DMC) |
| 05 | - | Spare |
| 06 | - | Spare |
| 07 | - | Spare |
| 08 | 15A | Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock |
| 09 | - | Spare |
| 10 | 40A | HVAC Blower Motor |
| 11 | - | Spare |
| 12 | 20A | Assy Cigar Lighter |
| 13 | 10A | Assy Mirror Inside Rearview / Digital TV (DTV)*/ Sunroof Single - Dual Pane / Port UC1 Dual USB RR / Interior Monitoring Camera |
| 14 | - | Spare |
| 15A | - | Spare |
| 15B | - | Spare |
| 16 | 10A | MOD ORC |
| 17 | - | Spare |
| 18 | - | Spare |
| 19 | - | Spare |
| 20 | 10A | Overhead Console Assy (OHC) W/Sunshade / Intrusion Module / Intrusion Sensor / Siren / Head Up Display (HUD) / Digital TV (DTV)* |
| 21 | 30A | Trailer Tow Electric Brake - Aftermarket |
| 22 | - | Spare |
| 23 | - | Spare |
| 24 | - | Spare |
| 25 | - | Spare |
| 26 | - | Spare |
| 27 | - | Spare |
| 28 | - | Spare |
| 29 | - | Spare |
| 30 | - | Spare |
| 31 | - | Spare |
| 32 | 15A | MOD ICS Switch Bank / SW Bank Upper / SW EPB / Aux Switch Bank Module (ASBM) |
| 33 | 15A | Transfer case SW / Humidity Rain Light Sensor (HRLS) / Suspension SW* |
| 34 | - | Spare |
| 35 | 10A | IRCAM Heater |
| 36 | - | Spare |
| 37 | - | Spare |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | - | Spare |
| 41A | 10A | MOD Occupant Class / Steering Column Lock |
| 41B | 10A | Spare |
| 42A | 10A | Parktronics System MOD (PTS) / MOD Haptic Lane Feedback / Trailer Tow Module |
| 42B | 10A | MOD HVAC Control / Frt ERC Motor Ctrl / RR ERC Motor Ctrl |
| 43A | - | Spare |
| 43B | - | Spare |
| 44 | 15A | MOD Cluster CCN / MOD SGW (Cybersecurity) |
| 45 | - | Spare |
| 46 | - | Spare |
| 47A | - | Spare |
| 47B | - | Spare |
| 48A | - | Spare |
| 48B | - | Spare |
| 49 | 7.5A | MOD RF HUB / Module Ignition (MD KIN) |
| 50A | 10A | Telematics Box Module (TBM) / MOD Front Passenger Display Module (FPDM) / MOD DCSD* |
| 50B | 10A | Port Diagnostics 1 & 2 |
| 51A | - | Spare |
| 51B | - | Spare |
| 52 | - | Spare |
| 53 | 20A | MOD CMCM (Radio) |
| 54A | - | Spare |
| 54B | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | - | Spare |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | - | Spare |
| 62A | - | Spare |
| 62B | - | Spare |
| 63A | 15A | Media HUB #1 Frt / Port UC1 Dual USB Frt / Wireless Charging Pad MOD (WCPM) |
| 63B | 15A | Not Populated |
| 64A | 10A | MOD ORC |
| 64B | 10A | Steering Column Control Module (SCCM) |
| 65 | 5A | MOD SGW (Cybersecurity) |
| 66 | - | Spare |
| CB1 | - | Spare |
| CB2 | - | Spare |
| CB3 | - | Spare |
| CB4 | - | Spare |
| CB5 | - | Spare |
| CB6 | - | Spare |
| Hybrid Interior Fuses | ||
| F08 | 15A | SW Hybrid E-drive Mode / Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock |
| F11 | 5A | Electric AC Compressor (IOD) / Battery Charge Indicator / Charge Port Indicator (CPIM) |
Passenger compartment fuse box (Rear Power Distribution Center - Under the passenger seat) - Gasoline Engine:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | - | Spare |
| 03 | Shunt | Auxiliary Battery Feed* |
| 04 | - | Spare |
| 05 | 150A | Underhood PDC Feed* |
| 06 | - | Spare |
| 07 | - | Spare |
| 08 | - | Spare |
| 09 | - | Spare |
| 10 | - | Spare |
| 11 | 50A | Mod BCM Feed #2 |
| 12 | - | Spare |
| 13 | - | Spare |
| 14 | - | Spare |
| 15A | - | Spare |
| 15B | 10A | Hands-Free Liftgate / Rear Window Switches / MOD HVAC Cntrl Frt |
| 16 | - | Spare |
| 17 | 40A | Mod BCM Feed #3 |
| 18 | 30A | Power Liftgate Module |
| 19A | - | Spare |
| 19B | - | Spare |
| 20A | 15A | Central ADAS Decision Module (CADM) |
| 20B | - | Spare |
| 21A | - | Spare |
| 21B | - | Spare |
| 22 | - | Spare |
| 23 | 10A | Media Hub #2 (RR) / #3 (LR) |
| 24 | - | Spare |
| 25 | 30A | Mod Door MUX Passenger |
| 26 | 20A | Headrest Dump 3rd Row (LT & RT)* |
| 27 | - | Spare |
| 28 | 30A | MOD Memory / Power Seat (Passenger Frt) |
| 29A | 10A | MOD ICS Switch Bank Rear (Frt Console) |
| 29B | - | Spare |
| 30 | 30A | MOD Memory / Power Seat (Driver Frt) |
| 31 | - | Spare |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | 30A | MOD Door MUX Driver |
| 35 | 25A | Trailer Tow Module #2 |
| 36A | 10A | Intelligent Event Base Lighting Module |
| 36B | 10A | Port Pwr USB Console (USB CH Only) / Port UCI Dual USB Rear |
| 37 | 25A | Trailer Tow Module #1 |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | 30A | Mod Audio Amplifier #1A |
| 41 | - | Spare |
| 42A | - | Spare |
| 42B | 10A | Rear Entertainment Screens 1 (Res1) / (Res2) / Media Hub #2 RR Wake Up / Media Hub #3 Wake Up / APO Illumination / 2nd - 3rd Row Seat Switches-Illumination |
| 43 | - | Spare |
| 44A | 20A | 12 Volt Power Outlet Cargo Area (Ign) |
| 44B | 20A | 12 Volt Power Outlet Cargo Area (Battery) |
| 45 | 20A | MOD CRSM (Heated Seat RR RT) |
| 46 | 30A | Folding Seat Module 3rd Row Feed #1* |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | - | Spare |
| 50 | 15A | Seat Massage Driver Mod (SSMD) / Seat Massage Passenger Mod (SSMP)* |
| 51 | 30A | MOD IAir Suspension (Valves) |
| 52 | 20A | MOD CRSM (Heat Seat RR LT)* |
| 53 | 30A | Electronic Limited Slip Differential (ELSD) Rear #1 |
| 54 | - | Spare |
| 55 | 30A | MOD Inverter |
| 56 | 30A | Folding Seat Module 3rd Row Feed #2* |
| 57 | - | Spare |
| 58 | 15A | 3rd Row Additional USB charge (Only LT - RT) / Port Pwr USB Console UBS (CH Only) |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | - | Spare |
| 62 | 20A | Module Seat Heater Frt (Driver)* |
| 63 | 30A | Assy Trailer Tow Receptacle B+ |
| 64 | - | Spare |
| 65 | - | Spare |
| 66 | 20A | MOD Door MUX Passenger Rear - Smart Motor |
| 67 | 30A | MOD Audio Amplifier #1B |
| 68 | - | Spare |
| 69 | 20A | L2+ Central ADAS Decision Module (CADM) MID* |
| 70 | 10A | Video Routing Module (VRM) / Port Power - USB IP (USB Ch Only) |
| 71 | - | Spare |
| 72 | - | Spare |
| 73 | - | Spare |
| 74 | 5A | L2+ Intelligent Battery Sensor (IBS) - 2* |
| 75 | - | Spare |
| 76 | - | Spare |
| 77 | - | Spare |
| 78 | 50A | MOD IAir Suspension |
| 79 | - | Spare |
| 80 | - | Spare |
| 81 | 20A | Module Seat Heater Frt (PASS)* |
| 82 | 10A | SW Seat Heater (RR RT - RR LT)* |
| 83 | - | Spare |
| 84 | - | Spare |
| 85 | - | Spare |
| 86 | 15A | Lumbar Support Driver - Passenger SW* |
| 87 | - | Spare |
| 88 | 20A | MOD Door MUX Driver Rear - Smart Motor |
* If Equipped
Engine compartment fuse box (Power Distribution Center) - Gasoline engine:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Crank Batt |
| 02 | - | Spare |
| 03 | 500A | Starter |
| 04 | 250A | Alternator |
| 05 | - | Spare |
| 06 | - | Aux Battery |
| 07 | 100A | Rad Fan |
| 08 | 80A | ELEC PWR STR |
| 09 | 80A | ELEC PWR STR |
| 10 | 80A | Feed to IPDC |
| 11 | 150A | PCR* |
| 12 | - | Not Populated |
| 13 | 40A | Starter |
| 14 | 10A | GNMM / VPMS* |
| 15 | 10A | ECM* |
| 16 | 15A | Cluster |
| 17A | 10A | EPS |
| 17B | - | Not Populated |
| 18 | - | Spare |
| 19 | 30A | BSM Valves #2* |
| 20 | - | Not Populated |
| 21 | - | Not Populated |
| 22 | - | Not Populated |
| 23A | 10A | ECM / EPS / PIM / SLM / GPF |
| 23B | 10A | Air Suspension / ELSD RR |
| 24 | - | Not Populated |
| 25 | - | Not Populated |
| 26 | 50A | BSM Motor #2* |
| 27 | 30A | Rear Defroster (EBL) |
| 28 | - | Not Populated |
| 29 | - | Not Populated |
| 30 | - | Not Populated |
| 31 | - | Not Populated |
| 32 | - | Not Populated |
| 33 | - | Not Populated |
| 34 | - | Not Populated |
| 35 | - | Not Populated |
| 36 | 50A | BCM Feed #1 |
| 37 | 30A | DTCM |
| 38 | - | Not Populated |
| 39 | - | Not Populated |
| 40 | 5A | Battery Sensor |
| 41 | 20A | CADM MAP* |
| 42 | - | Not Populated |
| 43 | 10A | Engine Control Module (ECM) |
| 44 | - | Not Populated |
| 45 | 15A | Front Axle Disconnect |
| 46 | - | Not Populated |
| 47 | - | Not Populated |
| 48 | 10A | CVPAM |
| 49 | - | Not Populated |
| 50 | - | Not Populated |
| 51 | 20A | Fuel Pump |
| 52 | - | Not Populated |
| 53 | - | Not Populated |
| 54 | 20A | Headlamp LT |
| 55 | 15A | BPCM* |
| 56 | - | Not Populated |
| 57 | - | Not Populated |
| 58 | - | Not Populated |
| 59 | - | Not Populated |
| 60 | - | Not Populated |
| 61 | - | Not Populated |
| 62 | - | Not Populated |
| 63 | 20A | Camera Washer Front |
| 64 | 15A | Smart Bar Control Module |
| 65 | 15A | ACT Grille Shutter / ACT Rear Axle Coolant Valve / Active Air Dam |
| 66 | 20A | Horns |
| 67 | 10A | DTCM / ASBS / Switchable Engine Mount / BSM |
| 68 | 20A | Headlamp RT |
| 69 | - | Not Populated |
| 70 | 20A | IGN Coil / IGN Capacitors / Fuel Inj |
| 71 | - | Not Populated |
| 72 | - | Not Populated |
| 73 | - | Not Populated |
| 74 | - | Not Populated |
| 75 | - | Not Populated |
| 76 | 5A | IDCM* |
| 77 | 20A | TCM SBW |
| 78 | 20A | ECM |
| 79 | 10A | Fuel Door / ELCM / Fuel Injectors* |
| 80 | 20A | ECM |
| 81 | 40A | BCM Feed #4 |
| 82 | - | Not Populated |
| 83 | 40A | LTR Coolant Pump* / Trans Oil Pump* |
| 84 | - | Not Populated |
| 85 | 10A | PCR* |
| 86 | 50A | BSM Feed #1 |
| 87 | - | Not Populated |
| 88 | 50A | BSM Feed #2 |
| 89 | - | Not Populated |
| 90 | - | Not Populated |
| 91 | - | Not Populated |
| 92 | 20A | Front De-Icer |
| 93 | - | Not Populated |
| 94 | 10A | A/C Compressor Clutch |
| 95 | 10A | Batt Cool Heater* |
| 96 | 5A | Elect Cool Heater* |
| 97 | - | Not Populated |
| 98 | - | Not Populated |
| 99 | - | Not Populated |
| 100A | - | Not Populated |
| 100B | - | Not Populated |
| 101 | - | Not Populated |
| 102 | - | Not Populated |
| 103 | 30A | Frt Wiper |
| 104A | 15A | PECP Low Temp Passive Pump* |
| 104B | 15A | AHP High Temp Aux Pump* |
| 105A | 15A | BCP Low Temp Active Pump* |
| 105B | 15A | LTR Coolant Pump PECP-2* |
* If Equipped
Engine compartment fuse box (Power Distribution Center) - Hybrid:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Crank Batt |
| 02 | - | Spare |
| 03 | 500A | Starter |
| 04 | 250A | Alternator |
| 05 | - | Spare |
| 06 | - | Aux Battery |
| 07 | 100A | Rad Fan |
| 08 | 80A | ELEC PWR STR |
| 09 | 80A | ELEC PWR STR |
| 10 | 80A | Feed to IPDC |
| 11 | 150A | PCR* |
| 12 | - | Not Populated |
| 13 | 40A | Starter |
| 14 | 10A | GNMM / VPMS* |
| 15 | 10A | ECM* |
| 16 | 15A | Cluster |
| 17A | 10A | EPS |
| 17B | - | Not Populated |
| 18 | - | Not Populated |
| 19 | 30A | BSM Valves #2* |
| 20 | - | Not Populated |
| 21 | - | Not Populated |
| 22 | - | Not Populated |
| 23A | 10A | ECM / EPS / PIM / SLM / GPF |
| 23B | 10A | Air Suspension / ELSD RR |
| 24 | - | Not Populated |
| 25 | - | Not Populated |
| 26 | 50A | BSM Motor #2* |
| 27 | 30A | Rear Defroster (EBL) |
| 28 | - | Not Populated |
| 29 | - | Not Populated |
| 30 | - | Not Populated |
| 31 | - | Not Populated |
| 32 | - | Not Populated |
| 33 | - | Not Populated |
| 34 | - | Not Populated |
| 35 | - | Not Populated |
| 36 | 50A | BCM Feed #1 |
| 37 | 30A | DTCM |
| 38 | - | Not Populated |
| 39 | - | Not Populated |
| 40 | 5A | Battery Sensor |
| 41 | 20A | CADM MAP* |
| 42 | - | Not Populated |
| 43 | 10A | Engine Control Module (ECM) |
| 44 | - | Not Populated |
| 45 | 15A | Front Axle Disconnect |
| 46 | - | Not Populated |
| 47 | - | Not Populated |
| 48 | 10A | CVPAM |
| 49 | - | Not Populated |
| 50 | - | Not Populated |
| 51 | 20A | Fuel Pump |
| 52 | - | Not Populated |
| 53 | - | Not Populated |
| 54 | 20A | Headlamp LT |
| 55 | 15A | BPCM* |
| 56 | - | Not Populated |
| 57 | - | Not Populated |
| 58 | - | Not Populated |
| 59 | - | Not Populated |
| 60 | - | Not Populated |
| 61 | - | Not Populated |
| 62 | - | Not Populated |
| 63 | 20A | Camera Washer Front |
| 64 | 15A | Smart Bar Control Module |
| 65 | 15A | ACT Grille Shutter / ACT Rear Axle Coolant Valve / Active Air Dam |
| 66 | 20A | Horns |
| 67 | 10A | DTCM / ASBS / Switchable Engine Mount / BSM |
| 68 | 20A | Headlamp RT |
| 69 | - | Not Populated |
| 70 | 20A | IGN Coil / IGN Capacitors / Fuel Inj |
| 71 | - | Not Populated |
| 72 | - | Not Populated |
| 73 | - | Not Populated |
| 74 | - | Not Populated |
| 75 | - | Not Populated |
| 76 | 5A | IDCM* |
| 77 | 20A | TCM SBW |
| 78 | 20A | ECM |
| 79 | 10A | Fuel Door / ELCM / Fuel Injectors* |
| 80 | 20A | ECM |
| 81 | 40A | BCM Feed #4 |
| 82 | - | Not Populated |
| 83 | 40A | LTR Coolant Pump* / Trans Oil Pump* |
| 84 | - | Not Populated |
| 85 | 10A | PCR* |
| 86 | 50A | BSM Feed #1 |
| 87 | - | Not Populated |
| 88 | 50A | BSM Feed #2 |
| 89 | - | Not Populated |
| 90 | - | Not Populated |
| 91 | - | Not Populated |
| 92 | 20A | Front De-Icer |
| 93 | - | Not Populated |
| 94 | 10A | A/C Compressor Clutch |
| 95 | 10A | Batt Cool Heater* |
| 96 | 5A | Elect Cool Heater* |
| 97 | - | Not Populated |
| 98 | - | Not Populated |
| 99 | - | Not Populated |
| 100A | - | Not Populated |
| 100B | - | Not Populated |
| 101 | - | Not Populated |
| 102 | - | Not Populated |
| 103 | 30A | Frt Wiper |
| 104A | 15A | PECP Low Temp Passive Pump* |
| 104B | 15A | AHP High Temp Aux Pump* |
| 105A | 15A | BCP Low Temp Active Pump* |
| 105B | 15A | LTR Coolant Pump PECP-2* |
| Hybrid Fuses | ||
| F79 | 10A | Fuel Door / ELCM Mod / FTIV All Hybrid |
| F83 | 40A | Trans Oil Pump |
| F94 | 10A | Electric AC Compressor (EAC) / Electric Chiller Valve |
| F95 | 10A | Battery Cooler Heater |
| F96 | 5A | HV Electric Coolant Heater |
| F104A | 15A | PECP – Low Temp Passive Pump / PECP Enable |
| F104B | 15A | High Temp Aux Pump / AHP Enable |
| F105A | 15A | Battery Coolant Pump (BCP) – Low Temp Active Pump / BCP Enable |
| F105B | 15A | PECP-2 / LTR Coolant Pump |
* If Equipped
Luggage compartment fuse box location (Rear Power Distribution Center) - Hybrid:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | - | Spare |
| 03 | Shunt | Auxiliary Battery Feed* |
| 04 | - | Spare |
| 05 | 150A | Underhood PDC Feed* |
| 06 | - | Spare |
| 07 | - | Spare |
| 08 | - | Spare |
| 09 | - | Spare |
| 10 | - | Spare |
| 11 | 50A | Mod BCM Feed #2 |
| 12 | - | Spare |
| 13 | - | Spare |
| 14 | - | Spare |
| 15A | - | Spare |
| 15B | 10A | Hands-Free Liftgate / Rear Window Switches / MOD HVAC Cntrl Frt |
| 16 | - | Spare |
| 17 | 40A | Mod BCM Feed #3 |
| 18 | 30A | Power Liftgate Module |
| 19A | - | Spare |
| 19B | - | Spare |
| 20A | 15A | Central ADAS Decision Module (CADM) |
| 20B | - | Spare |
| 21A | - | Spare |
| 21B | - | Spare |
| 22 | - | Spare |
| 23 | 10A | Media Hub #2 (RR) / #3 (LR) |
| 24 | - | Spare |
| 25 | 30A | Mod Door MUX Passenger |
| 26 | 20A | Headrest Dump 3rd Row (LT & RT)* |
| 27 | - | Spare |
| 28 | 30A | MOD Memory / Power Seat (Passenger Frt) |
| 29A | 10A | MOD ICS Switch Bank Rear (Frt Console) |
| 29B | - | Spare |
| 30 | 30A | MOD Memory / Power Seat (Driver Frt) |
| 31 | - | Spare |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | 30A | MOD Door MUX Driver |
| 35 | 25A | Trailer Tow Module #2 |
| 36A | 10A | Intelligent Event Base Lighting Module |
| 36B | 10A | Port Pwr USB Console (USB CH Only) / Port UCI Dual USB Rear |
| 37 | 25A | Trailer Tow Module #1 |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | 30A | Mod Audio Amplifier #1A |
| 41 | - | Spare |
| 42A | - | Spare |
| 42B | 10A | Rear Entertainment Screens 1 (Res1) / (Res2) / Media Hub #2 RR Wake Up / Media Hub #3 Wake Up / APO Illumination / 2nd - 3rd Row Seat Switches-Illumination |
| 43 | - | Spare |
| 44A | 20A | 12 Volt Power Outlet Cargo Area (Ign) |
| 44B | 20A | 12 Volt Power Outlet Cargo Area (Battery) |
| 45 | 20A | MOD CRSM (Heated Seat RR RT) |
| 46 | 30A | Folding Seat Module 3rd Row Feed #1* |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | - | Spare |
| 50 | 15A | Seat Massage Driver Mod (SSMD) / Seat Massage Passenger Mod (SSMP)* |
| 51 | 30A | MOD IAir Suspension (Valves) |
| 52 | 20A | MOD CRSM (Heat Seat RR LT)* |
| 53 | 30A | Electronic Limited Slip Differential (ELSD) Rear #1 |
| 54 | - | Spare |
| 55 | 30A | MOD Inverter |
| 56 | 30A | Folding Seat Module 3rd Row Feed #2* |
| 57 | - | Spare |
| 58 | 15A | 3rd Row Additional USB charge (Only LT - RT) / Port Pwr USB Console UBS (CH Only) |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | - | Spare |
| 62 | 20A | Module Seat Heater Frt (Driver)* |
| 63 | 30A | Assy Trailer Tow Receptacle B+ |
| 64 | - | Spare |
| 65 | - | Spare |
| 66 | 20A | MOD Door MUX Passenger Rear - Smart Motor |
| 67 | 30A | MOD Audio Amplifier #1B |
| 68 | - | Spare |
| 69 | 20A | L2+ Central ADAS Decision Module (CADM) MID* |
| 70 | 10A | Video Routing Module (VRM) / Port Power - USB IP (USB Ch Only) |
| 71 | - | Spare |
| 72 | - | Spare |
| 73 | - | Spare |
| 74 | 5A | L2+ Intelligent Battery Sensor (IBS) - 2* |
| 75 | - | Spare |
| 76 | - | Spare |
| 77 | - | Spare |
| 78 | 50A | MOD IAir Suspension |
| 79 | - | Spare |
| 80 | - | Spare |
| 81 | 20A | Module Seat Heater Frt (PASS)* |
| 82 | 10A | SW Seat Heater (RR RT - RR LT)* |
| 83 | - | Spare |
| 84 | - | Spare |
| 85 | - | Spare |
| 86 | 15A | Lumbar Support Driver - Passenger SW* |
| 87 | - | Spare |
| 88 | 20A | MOD Door MUX Driver Rear - Smart Motor |
| Hybrid Rear Fuses | ||
| F15A | 10A | Pwr Inverter Mod (PIM) — Redundant Main Pwr Supply |
| F19A | 10A | Mod PIM |
| F19B | 10A | Quiet Vehicle Pedestrian Mod (QVPM) |
| F47 | 20A | PIM — Park PAWL Motor |
| F85 | 15A | Power Inverter Mod (PIM) — Main Power Supply |
* If Equipped
