Hyundai Venue 2026 Fuse Box Info

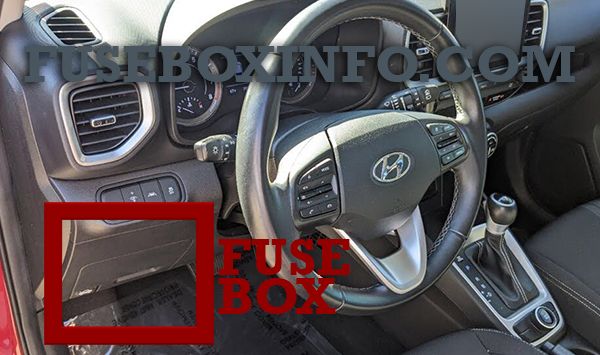

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel (RHD).

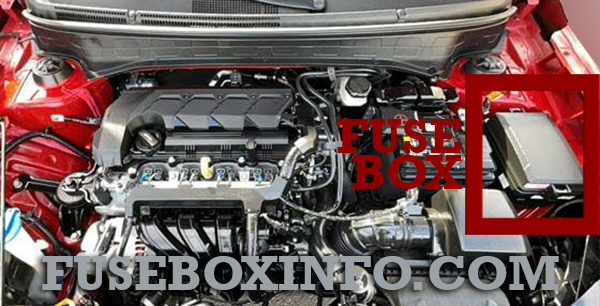

Engine compartment fuse box location:
Fuse Box Diagram | Layout

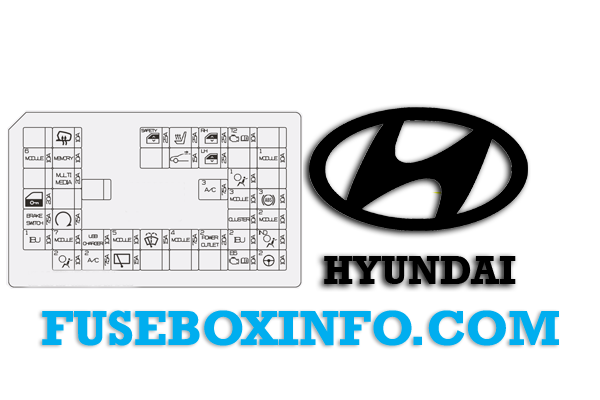

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| HEATED MIRROR | 10A | Driver/Passenger Outside Mirror, A/C Control Module, Rear Heated Mirror |
| SAFETY P/ WINDOW |
25A | Driver Safety Power Window Module |
| S/HEATER | 25A | Front Seat Warmer Control Module |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| TCU 2 | 10A | Transaxle Range Switch, Back-Up Lamp Switch |
| MODULE 6 | 10A | Data Link Connector, Key Interlock Solenoid |
| MEMORY | 10A | A/C Control Module, Instrument Cluster |
| SUNROOF | 15A | Sunroof Motor |
| P/WINDOW LH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| MODULE 1 | 10A | Stop Lamp Switch, ATM Shift Lever |
| MULTIMEDIA | 20A | Audio, A/V & Navigation Head Unit |
| AIR BAG 1 | 10A | SRS Control Module |
| A/C 3 | 7.5A | Blower Motor, A/C Control Module |
| DOOR LOCK | 20A | Tail Gate Unlock Relay, Door Lock/Unlock Relay |
| MODULE 3 | 10A | A/V & Navigation Head Unit, Audio, Front Seat Warmer Control Module, Head Lamp Front Console Switch, Crash Pad Switch, Electro Chromic Mirror, A/C Control Module |
| ABS 3 | 10A | E/R Junction Block (Multipurpose Check Connector), ESP Control Module |
| BRAKE SWITCH | 7.5A | IBU, Stop Lamp Switch |
| START | 7.5A | [With Burglar Alarm] Burglar Alarm Relay [W/O Burglar Alarm & W/O Smart Key] Ignition Lock & Clutch Switch [W/O Burglar Alarm & With Smart Key] IBU, ECM/PCM, Transaxle Range Switch, E/R Junction Block (START RLY) |
| CLUSTER | 10A | Instrument Cluster |
| MODULE 2 | 10A | IBU, Crash Pad Switch, Front View Camera |
| IBU 1 | 10A | IBU |
| MODULE 7 | 10A | Power Outside Mirror Switch, IBU, A/V & Navigation Head Unit, Audio, E-CALL Module |
| USB CHARGER | 10A | USB Charging Connector |
| MODULE 5 | 10A | Front Seat Warmer Control Module |
| WASHER | 15A | Multifunction Switch |
| MODULE 4 | 7.5A | IBU |
| POWER OUTLET 2 | 20A | Power Outlet |
| IBU 2 | 10A | IBU |
| A/BAG IND | 10A | Instrument Cluster, Center Facia Switch |
| AIR BAG 2 | 10A | SRS Control Module |
| A/C 2 | 7.5A | E/R Junction Block (BLOWER RLY), A/C Control Module |
| WIPER RR | 15A | E/R Junction Block (RR WIPER RLY), Rear Wiper Motor |
| ECU 6 | 10A | ECM/PCM |
| MDPS 2 | 10A | MDPS Unit |

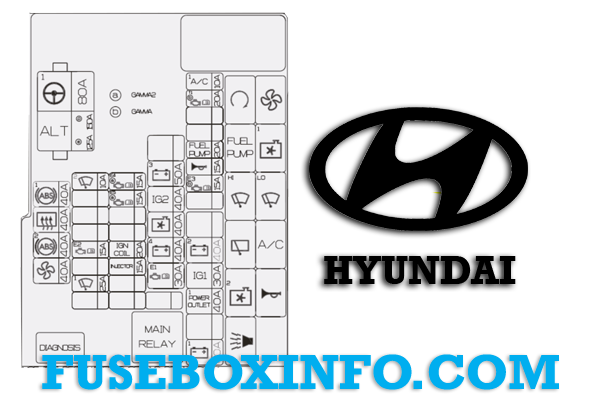

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS 1 | 80A | MDPS Unit |
| ALT |
125A 150A |
G4FM : Alternator G4FG : Alternator |
| ABS1 | 40A | ESP Control Module |
| REAR HEATED |
40A | ICU Junction Block (REAR HEATED RLY) |
| ABS2 | 40A | ESP Control Module |
| BLOWER | 40A | E/R Junction Block (BLOWER RLY) |
| FRT WIPER 2 | 10A | IBU, E/R Junction Block (FRT WIPER RLY) |
| ECU2 | 15A | ECM, PCM |
| FRT WIPER 1 | 25A | Front Wiper Motor, E/R Junction Block (FRT WIPER RLY) |
| ECU4 | 15A | [G4FM] ECM, PCM |
| ECU5 | 15A | [G4FM] ECM, PCM |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4, [G4FG] Condenser |
| INJECTOR | 15A | ECM/CPM, E/R Junction Block (FUEL PUMP RLY), Injector 1/#2/#3/#4 |
| B+3 | 50A | ICU Junction Block (Fuse : SUNROOF, SAFETY P/WINDOW, S/HEATER, Rly : P/WINDOW RLY) |
| IG2 | 40A | E/R Junction Block (START RLY), [With Smart Key] PDM Relay Box (IG2 Relay) [W/O Smart Key] Ignition Switch |
| C/FAN | 40A | E/R Junction Block (C/FAN RLY) |
| B+4 | 40A | ICU Junction Block (Long Term Load Latch Relay, Fuse : MULTI MEDIA, MEMORY, BRAKE SWITCH, IBU1, MODULE6, DOOR LOCK, AIR BAG2) |
| ECU1 | 30A | E/R Junction Block (Fuse : ECU4, ECU5, Rly : MAIN RLY) |
| A/CON1 | 10A | E/R Junction Block (A/CON RLY) |
| TCU1 | 20A | [G4FG] PCM |
| FUEL PUMP |
20A | E/R Junction Block (FUEL PUMP RLY) |
| HORN | 15A | E/R Junction Block (HORN RLY, B/ALARM HORN RLY) |
| ECU3 | 15A | [G4FG] ECM/PCM |
| B+2 | 40A | ICU Junction Block (IPS_2, IPS_4, IPS_6, IPS_9, IPS_10) |
| IG1 | 30A | [With Smart Key] PDM Relay Box (IG1/ACC Relay) [W/O Smart Key] Ignition Switch |
| POWER OUTLET1 |
40A | ICU Junction Block (POWER OUTLET RLY) |
| B+1 | 40A | ICU Junction Block (IPS_1, IPS_3, IPS_5, IPS_11, IPS_7, IPS_8) |
