Hyundai Venue 2024 Fuse Box Info

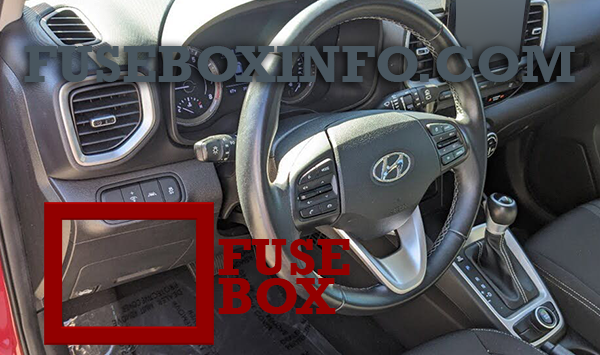

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

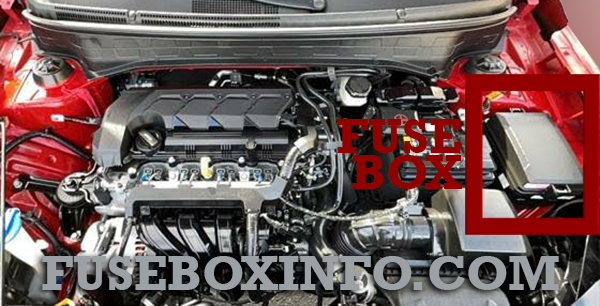

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| POWER OUTLET 3 | 20A | USB Charger |
| INTERIOR LAMP | 10A | Front Vanity Lamp LH/RH, Room Lamp, Map Lamp |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| P/WINDOW LH | 25A | Power Window Main Switch |
| FCA | 10A | Forward Collision Avoidance Assist Unit |
| POWER OUTLET 2 | 20A | Front Power Outlet |
| IBU 1 | 15A | IBU |
| MULTIMEDIA | 20A | Audio, A/V & Navigation Head Unit |
| SAFETY P/ WINDOW |
25A | Driver Safety Power Window Module |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| TCU2 | 15A | Transaxle Range Switch, Back-Up Lamp Switch |
| BRAKE SWITCH | 10A | IBU, Stop Lamp Switch |
| MEMORY 1 | 10A | Instrument Cluster, A/C Control Module |
| START | 7.5A | [M/T] ECM, IBU, [CVT] Transaxle Range Switch |
| S/HEATER | 20A | Front Seat Warmer Control Module |
| MODULE 1 | 7.5A | Stop Lamp Switch, ATM Shift Lever |
| MEMORY 2 | 7.5A | SRS Control Module |
| AIR BAG | 10A | Passenger Occupant Detection Sensor, SRS Control Module |
| DOOR LOCK | 20A | Tail Gate Relay, T/Turn Unlock Realy, Door Lock/Unlock Realy |
| ECU 6 | 10A | ECM, PCM |
| DRL | 10A | DRL Relay |
| MODULE 6 | 10A | Data Link Connector, Key Interlock Solenoid |
| T/SIGNAL LAMP | 15A | IBU |
| MODULE 2 | 10A | Crash Pad Switch, Multifunction Camera Unit, Blind Spot Collision Warning Unit LH/RH |
| SUNROOF | 15A | Sunroof Motor |
| MODULE 3 | 7.5A | Console Switch, ATM Shift Lever Indicator, A/C Control Module, Audio, Front Seat Warmer Control Module |
| WIPER RR | 15A | E/R Junction Block (Wiper RR Relay), Rear Wiper Motor |
| WASHER | 15A | Multifunction Switch |
| A/BAG IND | 7.5A | Center Facia Switch, Instrument Cluster |
| IBU 2 | 7.5A | IBU |
| ABS3 | 7.5A | E/R Junction Block (Multipurpose Check Connector), ESC Module |
| WIPER FRT | 25A | E/R Junction Block (Wiper FRT Low Relay), Front Wiper Motor |
| A/C 2 | 7.5A | E/R Junction Block (Blower Relay), A/C Control Module |
| HEATED STEERING |
15A | Not Used |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE 7 | 10A | Power Outlet Relay, Power Outside Mirror Switch, IBU, Audio, A/V & Navigation Head Unit |
| MDPS 2 | 7.5A | MDPS Unit |
| MODULE 5 | 10A | IBU, Front Seat Warmer Control Module |
| MODULE 4 | 7.5A | IBU |
| A/C 3 | 7.5A | Blower Motor, A/C Control Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 125A | Alternator, Multi Fuse - MDPS 1, Fuse - Rear Heated, Blower, ABS 1, ABS 2 |
| MDPS 1 | 80A | MDPS Unit |
| REAR HEATED |
40A | ICU Junction Block (Rear Heated Relay) |
| ABS 1 | 40A | Multipurpose Check Connector, ESC Module |
| ABS 2 | 40A | ESC Module |
| BLOWER | 40A | Blower Relay |
| WIPER | 10A | Wiper FRT LO Realy, IBU |
| ECU2 | 15A | ECM/PCM |
| ECU4 | 15A | ECM/PCM |
| ECU5 | 15A | ECM/PCM |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| INJECTOR | 15A | ECM/PCM, Injector #1~#4, Fuel Pump Relay |
| PTC HEATER | 50A | PTC Heater Relay |
| B+3 | 50A | ICU Junction Block (Fuse - DOOR LOCK, S/HEATER, SAFETY P/WINDOW, SUNROOF, Power Window Relay) |
| IG2 | 40A | Start Relay, PDM Relay Box (IG2 Relay), Ignition Switch |
| COOLING FAN |
40A | Cooling Fan 1/2 Relay |
| B+4 | 40A | ICU Junction Block (Fuse - MODULE 6, BRAKE SWITCH, T/SIGNAL LAMP, DRL, IBU 1, Leak Current Autocut Device) |
| ECU1 | 30A | Main Relay, Fuse - ECU 4, ECU 5 |
| A/C 1 | 10A | A/C Relay |
| FUEL PUMP | 20A | Fuel Pump Relay |
| HORN | 15A | Horn Relay |
| B+2 | 30A | ICU Junction Block (IPS (5CH) E-SWITCH, IPS (2CH)) |
| IG1 | 30A | [With Smart Key] PDM Relay Box (IG1 Relay) [W/O Smart Key] Ignition Switch |
| POWER OUTLET 1 |
40A | ICU Junction Block (Power Outlet Relay) |
| B+1 | 30A | ICU Junction Block (IPS (5CH) E-SWITCH, IPS (1CH)) |
