Hyundai Stargazer 2022 Fuse Box Info

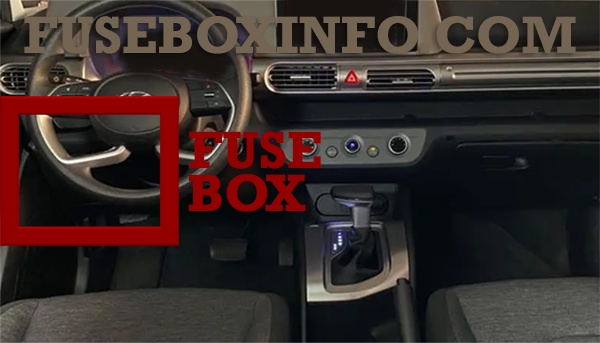

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover (RHD).

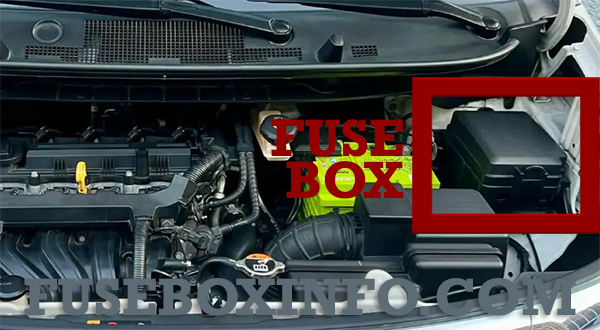

Engine compartment fuse box location:
Fuse Box Diagram | Layout

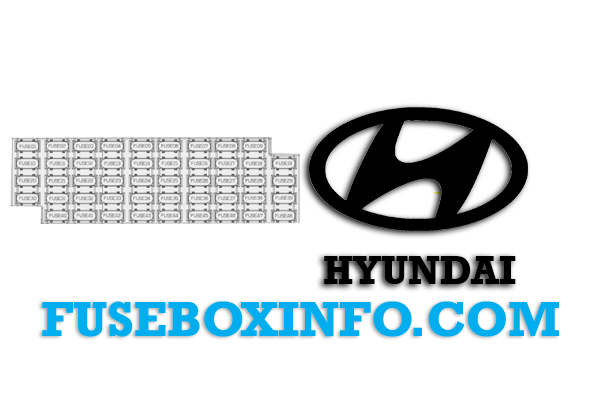

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| 01. RESERVE 1 | - | - |
| 02. T/GATE OPEN | 10A | Tailgate Relay |
| 03. DR LOCK | 20A | Door Lock Relay, Door Unlock Relay |
| 04. RESERVE 2 | - | - |
| 05. RESERVE 3 | - | - |
| 06. A/BAG IND | 7.5A | Instrument Cluster (Air Bag Ind.) |
| 07. A/BAG | 15A | SRS Control Module |
| 08. P/OUTLET 2 | 20A | Luggage Power Outlet |
| 09. MODULE 6 | 7.5A | IBU (IG2) |
| 10. SAFETY P/W | 25A | Passenger Safety Power Window Module, Rear Safety Power Window Module RH, Driver Safety Power Window Module, Rear Safety Power Window Module LH |
| 11. RESERVE 4 | - | - |
| 12. MODULE 1 | 7.5A | Data Link Connector, Ultrasonic Intrusion Protection Sensor, CVT Shift Lever Solenoid |
| 13. RESERVE 5 | - | - |
| 14. RESERVE 5 | - | - |
| 15. MODULE 4 | 7.5A | PDW Buzzer, IBU (PDW Buzzer Signal), Console Switch (IG1), Front View Camera, Rear Corner Radar LH/RH |
| 16. MODULE 3 | 7.5A | Stop Lamp Switch |
| 17. USB CHARGER | 10A | Front/Rear USB Port |
| 18. WIPER RR | 15A | Rear Wiper Motor, E/R Junction Block (Wiper RR Relay) |
| 19. RESERVE 7 | - | - |
| 20. P/WDW RH | 25A | Power Window Main Switch, Passenger Power Window Switch(LHD) |
| 21. AMP | 25A | AMP |
| 22. WIPER FRT | 10A | IBU, ECM/PCM, Front Wiper Motor, E/R Junction Block (Wiper FRT LO Relay) |
| 23. IBU 1 | 15A | IBU (B+) |
| 24. MULTIMEDIA | 15A | Audio, A/V Head Unit |
| 25. ABS 3 | 10A | ESP Control Module |
| 26. CLUSTER | 7.5A | Instrument Cluster (IG1) |
| 27. MODULE 2 | 10A | O/S Mirror(ACC), AMP(ACC), IBU(ACC), Audio(ACC), A/V Head Unit(ACC), E-CALL Unit(ACC) |
| 28. A/CON 2 | 7.5A | A/C Control Module, Dual Switch, E/R Junction Block (Blower Relay) |
| 29. RESERVE 8 | - | - |
| 30. P/WDW LH | 25A | Power Window Main Switch, Passenger Power Window Switch(RHD) |
| 31. RESERVE 9 | - | - |
| 32. START | 7.5A | ECM/PCM, IBU, E/R Junction Block (Start Relay), Inhibitor Switch |
| 33. RESERVE 10 | - | - |
| 34. RESERVE 11 | - | - |
| 35. MODULE 5 | 10A | A/C Control Module, Audio, A/V Head Unit, Head Lamp Leveling Device Acutuator LH/RH, AMP, Driver Air Ventilation Seat Control Module, Passenger Air Ventilation Seat Control Module, Wireless Charge Unit, E-CALL Unit, Transmission Gear Shift Indicator |
| 36. MDPS 2 | 7.5A | MDPS Unit (IG1) |
| 37. P/OUTLET 1 | 20A | Front Power Outlet |
| 38. MODULE 7 | 7.5A | Driver Air Ventilation Seat Control Module, Passenger Air Ventilation Seat Control Module |
| 39. WASHER | 15A | Multifunction Switch |
| 40. RESERVE 12 | - | - |
| 41. RESERVE 13 | - | - |
| 42. BRAKE SW | 10A | IBU, Stop Lamp Switch |
| 43. MEMORY | 10A | Instrument Cluster, A/C Control Module |
| 44. ECU 5 | 10A | E/R Junction Block (Fuse - TCU/ECU5) |
| 45. IBU 2 | 7.5A | IBU (IG1) |
| 46. RESERVE 14 | - | - |
| 47. WIPER FRT 2 | 25A | Front Wiper Motor, E/R Junction Block (RLY. Wiper FRT LO Relay) |
| 48. RESERVE 15 | - | - |

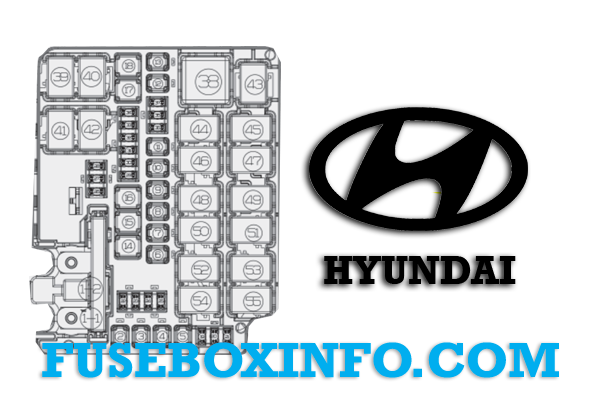

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| 1-1. ALT | 150A | ALTERNATOR |
| 1-2. MDPS | 80A | MDPS UNIT |
| 2. REAR HEATED |
40A | REAR HEATED RELAY |
| 3. ABS 1 | 40A | ESC MODULE |
| 4. ABS 2 | 30A | ESC MODULE |
| 5. | ||
| 6. | ||
| 7. B+1 | 40A | ICU(IPS 1, 4, 8, 9, 10, 12) |
| 8. | ||
| 9. ECU 1 | 30A | MAIN RELAY |
| 10. | ||
| 11. | ||
| 12. IGN2 | 30A | IG2 REALY, IGN SWITCH |
| 13. B+4 | 40A | ICU(B+) |
| 14. BLOWER | 50A | BLOWER MTR RELAY |
| 15. B+2 | 40A | ESC MODULE |
| 16. B+3 | 40A | ICU(B+) |
| 17. IG1 | 50A | ACC/IG1 REALY, IGN SWITCH |
| 18. COOLING FAN |
40A | COOLING FAN MTR RELAY |
| 19. | ||
| 20. ECU 4 | 10A | ECM/PCM |
| 21. REAR HEATED |
10A | REAR HEATED RELAY |
| 22. | ||
| 23. | ||
| 24. | ||
| 25. | ||
| 26. | ||
| 27. INJECTOR | 15A | INJECTOR 1, 2, 3, 4 |
| 28. IGNITION COIL |
15A | IGNITION COIL 1, 2, 3, 4 |
| 29. FUEL PUMP | 20A | FUEL PUMP MTR RELAY |
| 30. | ||
| 31. AMS | 10A | BATTERY SENSOR |
| 32. | ||
| 33. HORN | 15A | HORN RELAY, B/A HORN RELAY |
| 34. A/CON 1 | 10A | A/CON RELAY |
| 35. | ||
| 36. ECU 2 | 10A | ECM/PCM |
| 37. ECU 3 | 10A | ECM/PCM |
| 38. MAIN | 30A | |
| 39. BLOWER | 35A | BLOWER MTR RELAY |
| 40. | ||
| 41. WIPER RR | 20A | |
| 42. FUEL PUMP | 20A | FUEL PUMP MTR RELAY |
| 43. ACC | 35A | |
| 44. START | 35A | |
| 45. IG1 | 35A | ACC/IG1 REALY, IGN SWITCH |
| 46. | ||
| 47. IG2 | 35A | |
| 48. | ||
| 49. COOLING FAN |
35A | COOLING FAN MTR RELAY |
| 50. WIPER FRT LO |
20A | |
| 51. WIPER FRT HI |
20A | |
| 52. A/C | 20A | A/CON RELAY |
| 53. HORN | 20A | HORN RELAY, B/A HORN RELAY |
| 54. | ||
| 55. REAR HEATED |
35A | REAR HEATED RELAY |
