Hyundai Ioniq 5 2025 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

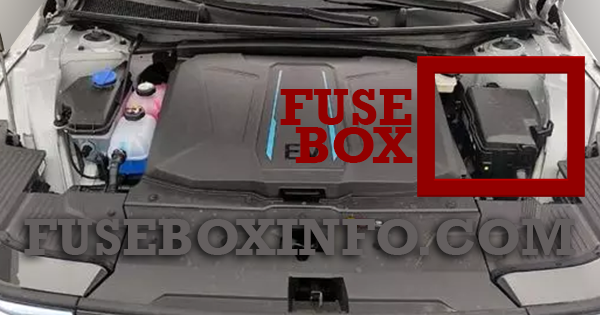

Engine compartment fuse box location:
Fuse Box Diagram | Layout

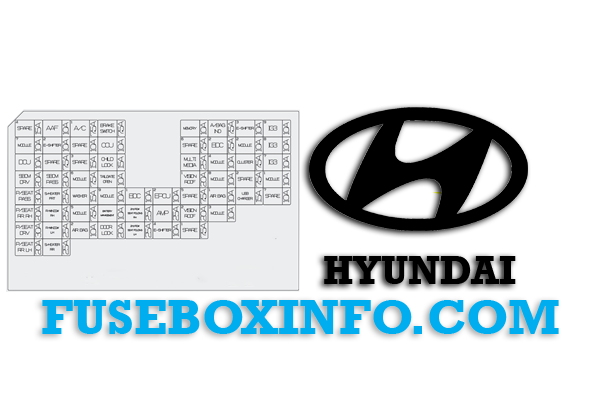

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| AAF | 10A | Active Air Flap Unit LH/RH, Active Air Flap Unit (Upper) |
| A/C1 | 7.5A | A/C Control Module |
| Stop Switch | 7.5A | BDC, Stop Light Switch |
| MEMORY | 10A | ADP Unit, Head-Up Display, Mood Lamp Unit, A/C Control Module, CCNC USB Jack, BDC, Cluster Unit, ADAS Unit (Parking), Rear Corner Radar LH/RH, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Speaker Mood Lamp, Driver/Passenger Door Armrest Mood Lamp, Smart Phone Wireless Charger |
| AIRBAG IND. | 7.5A | Overhead Console |
| E-SHFTER3 | 10A | SCU, SBW Shift Lever |
| IG3 9 | 10A | BMU, Rear Inverter |
| MODULE7 | 10A | ICC Unit, Driver/Passenger Door Outside Handle, Driver Door Module |
| E-SHFTER2 | 10A | SBW Shift Lever |
| CCU | 10A | CCU |
| BDC2 | 7.5A | BDC2 |
| MODULE2 | 10A | CCU, Stop Light Switch |
| IG3 8 | 10A | Front Console Switch, ICCU, V2L Unit, Electronic Oil Pump (Rear), VCMS, SCU, CCU |
| DCU | 10A | DCU |
| CHILD LOCK | 15A | Child Lock/Unlock Relay |
| MULTIMEDIA | 25A | CCNC Head Unit |
| MODULE4 | 10A | AMP, Headlight LH/RH, IFS ECU, ICC Unit, CCNC Head Unit, Smart Phone Wireless Charger, Electro Chromic Mirror, Data Link Connector, Rear Power Seat LH/RH Module, Crash Pad Switch, ADP Unit, Driver Power Seat Module, Passenger Power Seat Module |
| CLUSER | 7.5A | Cluster Unit, Head-Up Display |
| IG3 7 | 10A | CCNC Head Unit, Incar Temperature Sensor, PM Sensor, A/C Heater, A/C Control Module |
| SBCM DRV | 20A | Driver SBCM |
| SBCM PASS | 20A | Passenger SBCM |
| MODULE6 | 7.5A | Not Used |
| T/GATE | 10A | Tailgate Release Relay |
| V/ROOF1 | 20A | Sunroof Unit |
| MODULE8 | 10A | Multifunction Switch, Driver Door Module |
| MODULE1 | 10A | ADP Unit, AMP, CCNC Head Unit, ADAS Unit (Parking), CCNC Keyboard, BDC, CCU, DCU, P/R Junction Block (RLY.11) |
| MEMORY1 | 15A | ICU Junction Block (Fuse F6), Instrument Cluster, A/C Control Module, Mood Lamp Unit |
| PS P/SEAT | 30A | Passenger Power Seat Switch, Passenger Power Seat Module |
| FR SEAT HT | 25A | Front Air Ventilation Seat Control Module, Front Seat Heater Control Module |
| WASHER | 15A | Multifunction Switch |
| MODULE9 | 10A | Data Link Connector, Power Tailgate Unit, Rear Power Seat LH/RH Module, Driver/Passenger Power Seat Module, Driver/Passenger Power Seat Switch, Charging Connector LED Module, Front/Rear Seat Heater Control Module, Rear Seat LH/RH Slide Switch, Front Air Ventilation Seat Control Module, Multifunction Switch, Rain Sensor |
| BDC1 | 10A | BDC, Bluetooth Unit #1~#2, UWB Sensor (Front/Rear LH/RH) |
| EPCU2 | 10A | Rear Inverter |
| AIR BAG1 | 10A | SRS Control Module |
| USB CHARGER | 15A | Front/Rear Console USB Charger #1~#2 |
| RR P/SERT RH | 20A | Rear Power Seat RH Module |
| P/WDW RH | 25A | Passenger Power Window Switch, Driver(LHD)/Passenger(RHD) Safety Power Window Module, Rear Power Window Switch LH, Rear Safety Power Window Module LH |
| MODULE5 | 7.5A | BDC |
| BMS | 10A | BMU |
| 2ND FOLDING RH | 15A | Rear Seat RH Remote Folding Actuator |
| AMP | 25A | AMP |
| V/ROOF2 | 20A | Not Used |
| MODULE3 | 10A | Front Corner Radar LH/RH, Rear Corner Radar LH/RH, Front/Rear Inverter, Smart Cruise Control Radar, Driver/Passenger Door DSM Monitor, Crash Pad Switch, ADAS Unit (Parking), Front View Camera (ADAS) |
| DR P/SEAT | 30A | Driver Power Seat Switch, Driver Power Seat Module |
| P/WDW LH | 25A | Driver(LHD)/Passenger(RHD) Safety Power Window Module, Rear Power Window Switch LH, Rear Safety Power Window Module LH |
| AIR BAG2 | 10A | SRS Control Module |
| DR LOCK | 20A | Door Lock/Unlock Relay, Dead Lock Relay |
| 2ND FOLDING LH | 25A | Rear Seat LH Remote Folding Actuator |
| E-SHFTER4 | 10A | SCU |
| RR P/SERT LH | 20A | Rear Power Seat LH Module |
| RR SEAT HT | 25A | Rear Seat Heater Control Module |

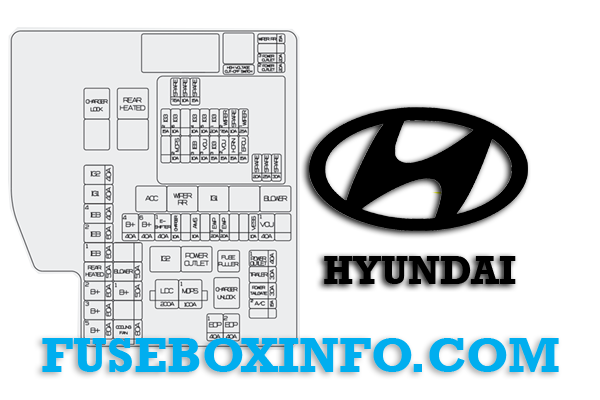

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| LDC | 200A | P/R Junction Block (Fuse : F10, SB7, SB8, SB9, SB10), ICCU (LDC) |
| MDPS1 | 100A | MDPS Unit |
| C/FAN | 80A | Cooling Fan Motor |
| B+1 | 50A | PDC (Fuse : F6, F7, F14, F15, F22, F23, F30, F40, F50) |
| BLOWER | 50A | P/R Junction Block (RLY.9) |
| B+5 | 60A | PCB Block (IG3 Main Relay, Fuse : F1, F2, F3, F4, F6) |
| B+3 | 60A | PDC (IPS14, Fuse : F2, F9, F10, F17, F18, F25, F26, F33, F34, F43, F44, F51, F52, F58, F59) |
| B+2 | 60A | PDC (Long Term Load Latch Relay, IPS13, Fuse : F4, F12, F20, F28, F37, F47, F54, F55) |
| RR HTD | 50A | P/R Junction Block (RLY.3) |
| IEB1 | 60A | IEB Unit |
| IEB2 | 60A | IEB Unit |
| IEB4 | 40A | Multipurpose Check Connector |
| IG1 | 40A | P/R Junction Block (RLY.5, RLY.7) |
| IG1 | 40A | P/R Junction Block (RLY.10) |
| B+4 | 40A | PDC (IPS9, IPS11, IPS12) |
| B+6 | 40A | PDC (IPS2, IPS3, IPS4, IPS5, IPS6, IPS7) |
| E-SHFTER1 | 40A | SCU |
| VCU1 | 40A | VCU |
| P/OUTLET1 | 40A | P/R Junction Block (RLY.11) |
| TRAILER | 30A | Trailer Connector |
| P/TAILGATE | 30A | Power Tailgate Unit |
| EOP1 | 40A | Electronic Oil Pump (Rear) |
| EOP2 | 40A | Electronic Oil Pump (Front) |
| CHARGER | 10A | P/R Junction Block (RLY1, RLY12), ICCU, VCMS |
| AMS | 10A | 12V Battery Sensor |
| EWP1 | 20A | Electronic Water Pump #1 (HV Battery) |
| EWP2 | 20A | Electronic Water Pump #2 (HV Battery) |
| VESS | 10A | VESS Unit |
| A/C2 | 15A | A/C Control Module |
| RR WIPER | 15A | P/R Junction Block (RLY.6), Rear Wiper |
| P/OUTLET3 | 20A | Rear Power Outlet |
| P/OUTLET2 | 20A | Front Power Outlet |
| WIPER1 | 25A | PCB Block (Wiper Main Relay) |
| EPCU1 | 15A | Front Inverter |
| HORN | 15A | PCB Block (Horn Relay) |
| WIPER2 | 7.5A | BCM |
| VCU2 | 15A | VCU |
| IG3 1 | 20A | PDC (Fuse - F8, F16, F24) |
| IG3 3 | 15A | Electronic Water Pump (Rear PE) |
| IG3 5 | 10A | BSA Coolant 3Way Valve |
| VCU3 | 10A | VCU |
| IG3 4 | 10A | Front Charging Lamp Module, Front Inverter, Coolant Valve, Electronic Water Pump #1~#2, Electronic A/C Compressor |
| IEB3 | 10A | IEB Unit, Multipurpose Check Connector |
| IG3 6 | 10A | Cooling Fan Motor, Electronic Oil Pump (Front) |
| MDPS2 | 10A | MDPS Unit |
| IG3 2 | 15A | VCU |
